    Thread: Fix your heater fan!

    1. Member Moljinar's Avatar
      Join Date
      Sep 20th, 2001
      Location
      Indianapolis, IN
      Posts
      5,945
      Vehicles
      87 Cabriolet, 85 Cabriolet, 90 JettaGL
      02-05-2005 09:16 PM #1
      First of all let's review a second...
      Your heater fan is making nasty noises. Almost a grinding sound. So we all assume its a bearing. But maybe its something stuck in the fan? Well, bunky it could be either and we'll try to fix both.

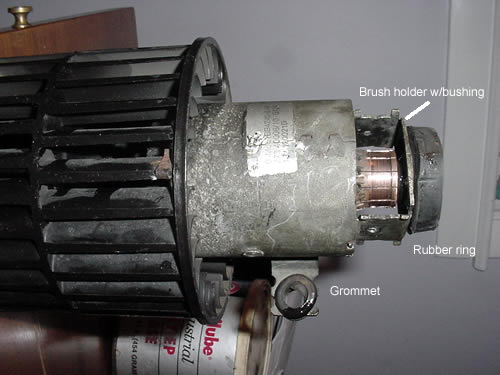

      First let's look at the fan as it's installed in the car.
      It's held in by a clip at the right end of the motor. A couple of inches ahead of the brushes are a couple of rubber isolated mounts that snap into place. You'll see these in a later pic.

      To get to the fan you'll have to remove the plastic covering from the rain tray, unbolt the air duct housings and remove. You may need to get behind the dash to hold the nuts in order to loosen the bolts. Not difficult a bit of a PITA.
      Once you have all that out of the way you'll see the fan. There are two power leads from the motor to the resistor. Unclip the resistor from it's clip and undo the connections to the motor.
      Once the fan is loose from the car test it for noise by hooking it up and running it. Is it running smooth? Any noise? Hold it horizontal to see if it's noisy. Odds are it sounds fine. I didn't do this step but went ahead and reworked the bushing. That's ok but I probably didn't need to do that.
      The majority of the noise is the fan rubbing on the fan housing!!! After fixing my fan and reinstalling it I had plenty of noise. the rubber grommet seen in the following pics had shrunk and the fan was rubbing under the squirrel cage. I manipulated it (that's the same as fiddliin' with it) to see what would make it better. Eventually I put a 5/16" washer under it to raise the fan up out of the way. I mention all of this now so you don't have to disassemble the fan motor unnecessarily.
      Don't get me wrong! I'm sure the fan motor could with some lubing anyway but you don't need to take it apart to do that. Use good oil. NO WD-40!!!! Or PBlaster. They're not lubes but solvents!

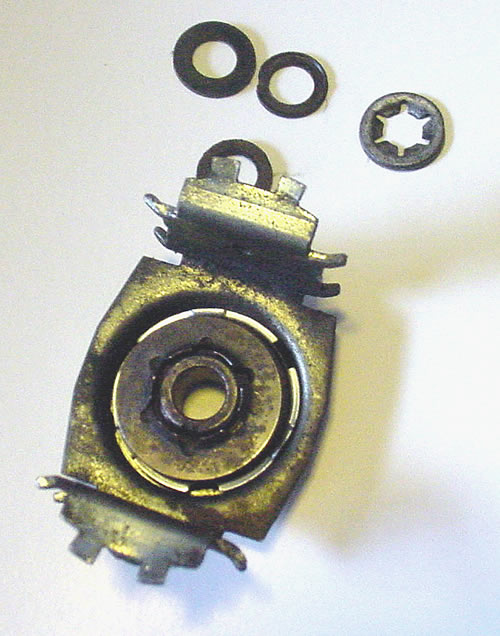

      Now back to our pics. The end on the fan motor has an endcap that holds the brushes and has a bushing holder. That's right BUSHING! Not bearings. This is a very low tech motor. It's hard to believe that after 20 years of use it can even turn but it does.

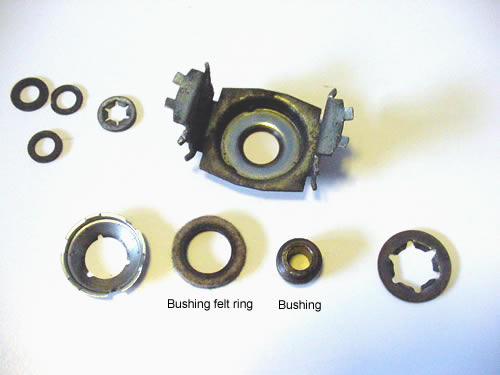

      Inside the endcap is a ring of felt that the bushing turns in.

      None of this is terribly difficult to take apart. A little frustrating but not difficult.
      The bushing on mine was almost seized to the shaft and was turning only within the felt ring. I removed the bushing with some pliers and proceeded to lube everything liberally. Then I sanded down and polished the shaft so it would turn within the bushing.

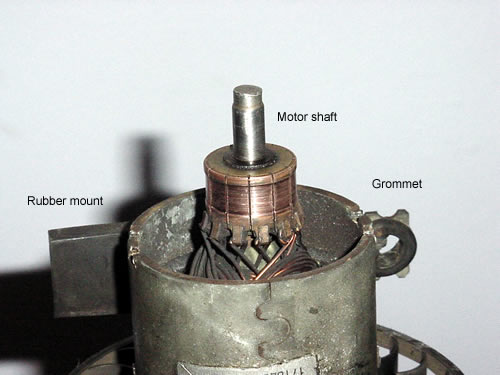

      Another look at he motor with the brushes removed.

      Bushing on shaft (blurry pic)

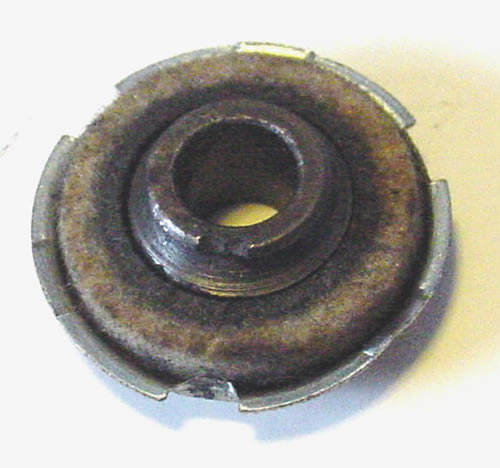

      Bushing in felt ring.

      After lubing put it all back together. The front bearing can't be disassembled without removing the fan so don't bother. Drip some oil thru the fan onto the shaft and it'll be ok. Please keep in mind that the fan is sold as a complete unit, no parts are available from VW should you loose anything.
      Now check it while out of the car. Make sure it's running ok. If so then start putting it back in. You press down on the back rubber square until it's locked into place. Then you tilt it forward until the grommet is over the peg that positions the front half of the fan. DO NOT CLIP the fan in yet. It is now located well enough to hook up and run it. So do so. See if it's rubbing. You've heard it run when it was free so you can be sure that any new noise is the cage rubbing on the housing. You may have to wiggle it some. Once you're satisfied clip down the end of the fan and repeat testing. Hopefully it all went well.
      I've had my fan out and back in several times with no problem with it rubbing. Now all of a sudden I did. That's what made be realize the grommet had worn and was letting the fan drop into the housing.

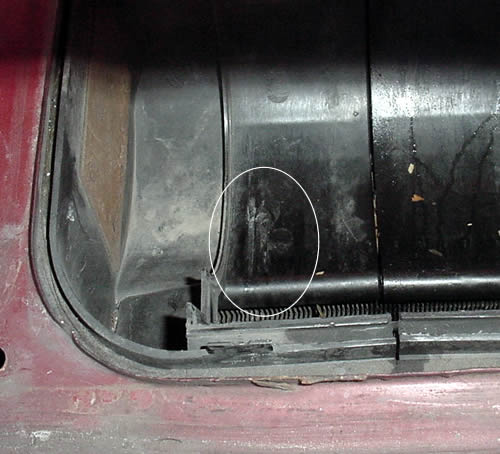

      Last pic. Look at the spot where it's been making a groove.

      If you've been letting your fan grind away for a while you won't hurt anything except to wear a groove in the housing. And that will be your tell-tell sign of what's going on. And the fan seems to be the type that once overheated it stops running. Once cooled it runs again so you're ok. Mine never even blew a fuse. Your fan should blow on all 4 speeds but the #4 speed is the only one that does not pass any electricity thru the resistor so use it to test with. Why? So you won't burn your pinkies on the resistor fool!

    2. Member qwikxr's Avatar
      Join Date
      Feb 9th, 2003
      Location
      Virginia
      Posts
      7,841
      Vehicles
      2001 Dodge Ram 2500 CTD 6speed, 82 ABA-swapped Caddy
      02-05-2005 10:44 PM #2
      NICE writeup, Moljinar!!

    3. Member sehaare's Avatar
      Join Date
      Aug 4th, 2003
      Location
      Palatine, IL. But I'll NEVER call Chicagoland home.
      Posts
      4,508
      Vehicles
      2013 TDI Sportwagen, 81 Rabbit Convertible, 92 Cabby (Daughter's), 98 SUV, 2011 Legacy
      02-05-2005 10:47 PM #3
      awsome post. To bad I just bought a fan on ebay? Well now I can try your method without fear of breaking or losing anything [IMG]http://*****************.com/smile/emthup.gif[/IMG]
      Enjoy every sandwich - Warren Zevon

    4. Member Moljinar's Avatar
      Join Date
      Sep 20th, 2001
      Location
      Indianapolis, IN
      Posts
      5,945
      Vehicles
      87 Cabriolet, 85 Cabriolet, 90 JettaGL
      02-07-2005 06:20 AM #4
      Thank you! I just wanted to make sure we all had heat for the remainder of the winter I know I needed it!

    5. 02-07-2005 11:04 AM #5
      Quote, originally posted by Moljinar »
      Thank you! I just wanted to make sure we all had heat for the remainder of the winter I know I needed it!
      Awesome Post...easy to understand write up and explanation and I just learned a lot for some of my Mk 1 people in my group. This should be a DEFINITE add to the FAQ's cheers

    6. 02-07-2005 11:29 AM #6
      I agree...another one for the FAQ!!!

    7. 02-08-2005 04:39 PM #7
      Hooray! THanks a million!
      Thomas

    8. 03-15-2005 01:19 PM #8
      I have a question for you.
      I am trying to get to my fan and I have removed the two bolts and nuts from the locations marked in this pic

      but the air duct housings will not come out. are there more than two bolts holding it on?
      Also do you have to pull the whole dash out to get to them from the inside of the car?


    9. Member Moljinar's Avatar
      Join Date
      Sep 20th, 2001
      Location
      Indianapolis, IN
      Posts
      5,945
      Vehicles
      87 Cabriolet, 85 Cabriolet, 90 JettaGL
      03-15-2005 01:42 PM #9
      I'm going to assume you also removed the air ducts to the left of the fan housing as well. They come out first then the fan cover. They also have bolts holding them in. Everything removes after sliding it to the leftmost side of the rain tray.
      You do not and in fact can't remove the fan from the interior without major disassembly of the dashboard and heating system.

    10. Member Black_cabbie's Avatar
      Join Date
      Jul 16th, 2003
      Location
      Athens Greece
      Posts
      8,819
      Vehicles
      Q7 4.2 V8 , Smart 451 Turbo
      03-15-2005 01:46 PM #10
      Thanks Oran!!!!!
      Added to the FAQ [IMG]http://*****************.com/smile/emthup.gif[/IMG]
      Chip Tuning for a living @ www.microchips-tuning.com

    11. 03-15-2005 02:31 PM #11
      "You do not and in fact can't remove the fan from the interior without major disassembly of the dashboard and heating system."
      ok so even if I get the housing off the fan still will not come out through the hood? do you have any pics or a guide on how to get the fan out?

    12. Member Moljinar's Avatar
      Join Date
      Sep 20th, 2001
      Location
      Indianapolis, IN
      Posts
      5,945
      Vehicles
      87 Cabriolet, 85 Cabriolet, 90 JettaGL
      03-15-2005 03:04 PM #12
      Lift the fan up and take it to the left side of the rain tray and lift it out. Tha's the only place it's wide enough to pass the fan thru.

    13. 03-15-2005 03:15 PM #13
      Quote, originally posted by Abyss123 »
      "You do not and in fact can't remove the fan from the interior without major disassembly of the dashboard and heating system."
      ok so even if I get the housing off the fan still will not come out through the hood? do you have any pics or a guide on how to get the fan out?

      Check out this link. This covers the removal of the air duct and blower cover, with pics. This is what you're looking for.
      http://forums.vwvortex.com/zerothread?id=1843162
      Thomas

    14. Member Moljinar's Avatar
      Join Date
      Sep 20th, 2001
      Location
      Indianapolis, IN
      Posts
      5,945
      Vehicles
      87 Cabriolet, 85 Cabriolet, 90 JettaGL
      03-15-2005 03:16 PM #14
      Thanks Thomas! I couldn't find a link to that post of yours.

    15. 03-15-2005 04:07 PM #15
      Thanks! great guide Thomas_covenant!! so it looks like you don't have to take the dash apart to get the motor out? just slide it to the passanger side

    16. Member Moljinar's Avatar
      Join Date
      Sep 20th, 2001
      Location
      Indianapolis, IN
      Posts
      5,945
      Vehicles
      87 Cabriolet, 85 Cabriolet, 90 JettaGL
      03-15-2005 04:31 PM #16
      Quote, originally posted by Abyss123 »
      Thanks! great guide Thomas_covenant!! so it looks like you don't have to take the dash apart to get the motor out? just slide it to the passanger side

      Coulda sworn I said that

    17. 03-15-2005 09:17 PM #17
      "You do not and in fact can't remove the fan from the interior without major disassembly of the dashboard and heating system."
      that statement made things a little confusing

    18. Member Moljinar's Avatar
      Join Date
      Sep 20th, 2001
      Location
      Indianapolis, IN
      Posts
      5,945
      Vehicles
      87 Cabriolet, 85 Cabriolet, 90 JettaGL
      03-15-2005 11:05 PM #18
      Quote, originally posted by Abyss123 »
      "You do not and in fact can't remove the fan from the interior without major disassembly of the dashboard and heating system."
      that statement made things a little confusing


      Sorry I should have made it clearer. I meant the interior of the passenger compartment. Not the engine compartment.

    19. 03-16-2005 11:12 AM #19
      No prob man you all have been most helpful and I appreciate it very much!
