      Well, I went and did it!

      The automatic was getting weaker by the day and with a 3 day weekend coming up I decided it was time to swap the automatic transmission for a manual. I’ve been looking at doing this for over a year and had gathered all the info and parts I needed. Interestingly enough, if you do a search on the Vortex you’ll find numerous threads that mention swaps, some that even list most of what has to be done but NONE are comprehensive. So this post will be long and complete.

      The short story is is a pleasure to drive now. Handles quicker, accelerates better (duh!) and is more of a GTI than ever. Even milage appears to be better. I figure I removed 150-200 pounds of auto related crap from the car and put in only 100. And I lost 10 lbs myself doing it!

      Took two days by my self. Nothing hard. Some a little frustrating.


      The Recipient: 85 Cabby aka “Buffy”, with 3 spd auto, 100mm axle set. Power steering.
      The Donor: 83 GTI aka Moljinar, 5 spd manual FK tranny with 90mm axle set. Manual steering.

      The list of stuff:
      1. Manual tranny, 020 type. 100mm axles or 90mm axle set. Both work (we’ll discuss this later)
      2. All clutch stuff. Clutch disc, pressure plate, flywheel, flywheel bolts, crankshaft bolts.
      3. Shift linkages. All links and rods. Including the shifter lever, the ball socket it goes in, the rod it attaches to that runs the length of the exhaust tunnel and the bracket that holds the nylon bushing the rod runs thru. Shift knob. It is best to remove all pieces from a donor vehicle so you can get it all and not miss anything. Then you can replace the few parts that may be too worn.
      4. Clutch cable.
      5. Speedo cable.
      6. Starter for manual tranny car. The auto starter is completely different , it even spins in the wrong direction!
      7. Clutch pedal.
      8. Pedal bracket for manual car. There are issues here with ones from older donor cars. You can buy the exact bracket you need from the dealer and I suggest you do.
      9. You will need a new/different steering rack. The rack in an auto-equipped VW doesn’t have the bracket to bolt the shift linkages to. Get a rack from a manual- equipped donor vehicle, preferably an identical model car. Early rabbit models use a different u-joint where they attach to the steering column. You can also change from power steering to manual steering at this point if so desired.
      10. Backup switch plug with wire pigtail for rewiring backup lites.


      The Procedure:

      1. While the car is on the ground use a long breaker bar or impact wrench and break loose the right and left front axle nuts.
      2. Then loosen the lug nuts on the front wheels .
      3. Jack up the car and put on jack stands to make it secure.
      4. Remove the wheels.
      5. Remove the 2 bolts that attach the strut to the steering hub (on each side.)
      6. Remove the tie-rod ends from the steering hub. I use a puller.
      7. Remove the tie-rod ends from the steering rack rods. Make note of how far in the ends were attached. We’ll need to know this later to help in realigning the toe-out.
      8. Pull the axles out of each hub. Swing the hub to the side and out to make room. The axles my need some gentle persuasion to get loose.
      8. Remove the battery. Undo the ground connection(s) to the auto tranny.
      9. Remove the starter. Undo the starter connections. Remove speedometer cable. Remove throttle cable. Remove shift cable.
      10. Remove driver side engine mount bolt.
      11. Remove front engine mounts.
      12. Remove rear motor mounts. This will leave the engine and tranny hanging down at an angle. This can stretch, pull apart some vacuum connections and electrical wiring. Take heed!
      13. Remove two bolts from tranny to engine on the top of the tranny.
      14. Remove lower bolts from tranny to engine.
      15. Put jack under tranny so it won’t fall to far. Pull tranny back from engine. When the input shaft clears the torque converter it will drop suddenly. Be ready for it.
      16. Once removed pull the tranny out from under the car.
      17. Throw it away! (just kidding, you may need the axles)
      18. Undo the u-joint from the steering rack to column. Separate if possible.
      19. Remove the power steering hoses from the rack. This will make a major puddle if not ready for it! (If you already have manual steering ignore this part.
      20. Remove the steering rack from the car. You do this by sliding the rack all the way over to the passenger side as far as you can get it. Push the steering rod on the driver’s side in to the rack as far as it will go. There will be just enough room to pull the rod out thru the hole it goes thru and then move it aside. Now move the rack to the driver’s side and remove the other rod from its hole. You should now have a loose rack lying on the ground.
      21. In the car interior remove the console and lay it aside.
      22. Remove the shifter plate (3 small bolts) Undo the shifter cable from the shifter.
      23. Detach the two red wires from the switch. This is your starter wire from the ignition to the starter. You must connect these two wires to get voltage to the starter (or run a brand new wire, but why?)
      24. Detach the other two wires. This is the backup-light wiring and will have to be dealt with later to get them working.
      25. Remove the shifter mechanism from the car. Throw it at least 50 ft. from the vehicle.
      26. Remove the shifter cable from the car. I found this to be impossible. So I got a hacksaw and cut the cable in half. That made it possible.
      27. Remove torque converter from drive plate. Doesn’t remind you one of those things that curlers throw down the ice in the Olympics? 28. Remove the drive plate from the crankshaft. Save the bolts!!!!
      29. Remove the front motor mount for reuse. Remove the rear motor mount for reuse. Remove the driver side motor mount for reuse. Unless you have these from the donor car.
      30. Back in the car interior you need to start removing the pedal bracket. It is held on by three (3) bolts behind the brake booster. Remove these form inside the engine compartment. These are a pain to get off. Very slow process.
      Under the bracket there is one screw that must be removed that holds it to the underside of the dash. The bracket is also help to the steering column by a spring clip that is quite a pain to undo. There is also a clip on the brake shaft that attaches to the pedal, remove that too. The bracket should now be loose and ready to remove. Undo the throttle cable from the throttle pedal while you’re under there.

      Your car is halfway there!

      Intermission! Go have a beer and a sandwich!

      Do things in this order for an easier install!

      Steering rack

      A. Reinstall the new powersteering rack. Opposite procedure as removing it. Make sure you have the brackets for the shift linkage attached to it.
      B. Make sure the u-joint is hooked back up. If you have a Rabbit rack and a Cabby (later model) column the two won’t mate. You’ll need the Rabbit column or the Rabbit joint or something. In short make sure your rack is compatible.
      C. Reinstall the PS hoses.
      D. Refill the PS reservoir as needed.

      Manual Tranny

      1. Attach the pressure plate to the crankshaft. Make sure your bolts are locktited well and torqued correctly!! See discussion on bolts before you do this. Major problems can arise (don’t ask how I know this) Before you do this you might want to replace the rear main seal.
      2. Put the clutch plate inside the flywheel and bolt up. Locktite the threads well and torque properly. Use the centering tool to make sure the clutch is centered correctly. Torque according to the diagram in the manual.
      3. Put the manual tranny on a jack and wheel it under the car. Without going in to much detail here you need to get the tranny lined up with the clutch bushing and the dowel rods on the engine block lined up with the holes in the tranny. This is a huge wrestling match to get it done. But then I was never a weight lifter so maybe you’ll find it easier than me.
      4. Once lined up install the top tranny to engine bolts and tighten. Put the bottom bolts in and tighten. Remount the starter and front motor mount and tighten.
      5. Using a jack lift the rear of the tranny enough that the driver’s side motor mount slips into the mount. Reinsert bolt and tighten.
      6. With the engine and tranny now back together start attaching the ground straps, starter wires etc. Be thorough!
      7. Check for vacuum lines that have been pulled out of whack. Major culprits are the brake booster and air bypass hoses.
      8. Fill the tranny as per the Bentley. DO NOT RUN IT DRY! Running with too little can fry your 5th gear as well.

      Pedal Cluster
      1. Take new pedal cluster and install in the reverse order. Here’s the lowdown on what has to be done in addition.
      2. The manual pedal cluster has a small tube on it that holds the end of the clutch cable. If this unit is not new check the welds for cracks, many of them crack and leave you stranded. If cracked replace/repair as needed.
      3. If the bracket is from an older car be aware that it’s not a perfect fit. The slot on the top of the original is about 4 inches long and helps get it lined up and installed. The one from my Rabbit had a slot only an inch long and made life hell. So I filed the notch open another ½ inch and that was enough to get it installed.
      4. The brake pedal on an older bracket has a pin that holds the pedals in line and is larger in diameter than the Cabby’s. So you can’t reuse the Cabby brake pedal. The Rabbit brake pedal has a curve to it that can complicate using the connector that’s on the end of the brake shaft. Use the Rabbit pedal, knock out the connecting pin (small1/4” or so) and use the connector and pin that came with the Cabby. Tight fit but works.
      5. Clutch pedal. Ya gotta have one. Make sure it’s compatible with the hinge pin of the bracket you’re using. Hook up cable as usual.
      6. There’s a spring clip that holds the bracket to the steering column. It’s a bitch to get it back together. In fact I still haven’t so don’t worry about it too much.
      7. If you loosened the steering column when you removed the original bracket then tighten it back up.
      8. Bolt back up to the brake booster. It’ll be a “bit” easier than removing it. WARNING!!! There is a bracket that is L shaped and goes behind the brake booster bracket and it is impossible to see at first. If it slips down it will block the pedal cluster bolts from going all the way thru the firewall. I lost a good half hour to that crap.
      9. Rehook up the brake light switch. If you're using a Rabbit pedal bracket the Cabby switch won't work. But if you file one of the two tabs off of it and cut down the other it'll fit ok. Another good reason to get a Cabby bracket in the first place!


      Shift Linkage
      1. Bolt the linkage brackets to the steering rack. It may already have them bolted on. The one with the bushing can be replaced and I’d suggest doing so. It’s cheap and will go a long way to tighten up the shifter.
      2. Install the shifter rod and lever assembly. It should bolt down to the original holes. Before you do you might want to sand and paint the shift rod and polish or paint the shift lever too. Where the shift lever attaches to the shift rod there are two bushings. They’re identical in size to some of those supplied in the shifter bushing kit from VW and others. I found significant slop there. Replacing those bushings made a ton of difference. You never hear about changing those. Also the ball bushing that the shift lever goes thru is also available and getting a new one is a grand idea.
      3. Attach all the linkage parts and test. Align the shifter as described in the Bentley. If you need a 15mm spacer for the reverse lockout setting use a standard cassette tape case. Works perfectly.
      4. You DID use all new bushings didn’t you? You DID put in a short shifter kit didn’t you?
      5. Test. Readjust as necessary.
      6. You will need a new cover plate for the console. The old one for the automatic obviously won’t work. Find one in a junkyard (the Rabbit GTI console is a different size) Or make your own. Or buy one from Langford!

      Suspension
      1. Reattach the axles on both sides. Put the nuts on. We’ll tighten them later.
      2. Reattach the tie-rod ends. Try to get them back to where they were before we removed them. Attach the tie-rod ends to the steering hub. Don’t forget to cotter pin them!
      3. Reattach the hub to the strut mount. Try to get the camber set back to where it was originally. Tighten as required.
      4. At this point I try to start the car which is still on jack stands. Unless you frigged something up it should start up ok. Test the clutch and shifter for proper operation. It’s easier to do it now than when it’s back down on the ground. If everything passes then put the wheels back on and remove the jack stands.
      5. Tighten the lug nuts to spec.
      6. Tighten the axle nuts to spec. Again, a very large breaker bar and a length of pipe might be useful.

      Now start it up and drive away.

      Gotchas!!!
      Here are several things you should watch out for.
      1. While the engine is tilted severely many things can pull loose. I’ve already mentioned vacuum hoses. Also there may be ground straps on the back of the engine that will need to be reattached. I fried a wire in my dashboard because it became the only drain wire for the car. Turns out a strap from the firewall to the head had come off.
      2. Crankshaft bolts. My bolts were from a 83 GTI that did not use the newer stretchy bolts. So they needed 55 ft-lbs of torque. Unfortunately I read the 85 Cabby manual that said to use 30 ft-lbs (for the new type of bolts) So the bolts backed out about 200 miles later and I found my self stuck along side the road. No damage fortunately but I spent another 4 hours removing things so I could retorque the suckers. And put waaay more LockTite on! Know what bolts you’re using and what they need for torque!
      3. Axles. This is a confusing issue for many. The 85 up Cabby uses 100mm axle flanges and thicker axles. They also feature larger CV joints. The hub on a Cabby is machined for these CV joints to clear. The splines inside the hub are identical to the CV joint found with the “90mm” axle set. If the tranny you want to use have 90mm flanges and you want to use your existing 100mm axle set you’ll need to change the flanges. Some trannys can’t be changed over. If you have the 90mm axle set with the tranny you can install the whole thing with no problem. It’ll bolt right up. You CANT put a 100mm axle set in a hub designed for a 90mm set though. Just in case you were thinking about putting your old automatic in your old Rabbit.  Don’t mix and match CV joints and axles. They have different lengths and can bind up.
      4. This may sound strange but your starter needs two (2) bolts to work properly. I lost the bottom bolt and installed it with only one. Since it’s a concentric fit into the hole I knew it wasn’t needed to center it. However, it cranked like a very poor tired starter on an automatic cabby. I was getting ready to buy a new one when I finally put a bolt in . The extra grounding did the trick. It now cranks like new.
      5. This is a good time to remove the oil pan and clean and repaint it. I’m happy to say my oil pan was clean enough inside to eat off of. Over 200K miles of good living I guess. No sludge anywhere.

      If I can think of anything else I’ll add it later. Meanwhile I have many auto tranny parts for sale including a very new starter!
      …0ran…

      I'm adding in comments from BROKE about getting the necessary clutch/flywheel items you need.

      Quote, originally posted by Broke »

      "Can I get the parts from the automatic?"

      None of that can come form the auto. Get a clutch kit, that will have the clutch disc, pressure plate, release plate and retaining spring. Also get a clutch install kit. That will have the flywheel bolts, crankshaft bolts, a clutch centering tool, a new TO bearing, green end cap, input shaft seal, pushrod seal and bushing, and a rear crankshaft seal. http://www.germanautoparts.com.../55/1

      The flywheel can be bought new, or a used one could be had from the junkyard, but it might need turned to be any good. New lightened units are also available. http://www.germanautoparts.com.../87/1

      Broke




      Modified by Moljinar at 9:28 AM 10-22-2007

    2. 06-08-2005 05:29 PM #2

      Fingers tired?


    3. Member Black_cabbie's Avatar
      Join Date
      Jul 16th, 2003
      Location
      Athens Greece
      Posts
      8,815
      Vehicles
      Q7 4.2 V8 , Smart 451 Turbo
      06-08-2005 05:57 PM #3
      Where are the photos?????????
      Chip Tuning for a living @ www.microchips-tuning.com

    4. Member Moljinar's Avatar
      Join Date
      Sep 20th, 2001
      Location
      Indianapolis, IN
      Posts
      5,916
      Vehicles
      87 Cabriolet, 85 Cabriolet, 90 JettaGL
      06-08-2005 06:24 PM #4
      Still in my camera. Not much to see really but I have a few.

    5. Member Black_cabbie's Avatar
      Join Date
      Jul 16th, 2003
      Location
      Athens Greece
      Posts
      8,815
      Vehicles
      Q7 4.2 V8 , Smart 451 Turbo
      06-08-2005 07:34 PM #5
      In the FAQ it goes!
      Chip Tuning for a living @ www.microchips-tuning.com

    6. Member kamzcab86's Avatar
      Join Date
      Feb 13th, 2002
      Location
      Arizona
      Posts
      16,630
      Vehicles
      1986 Cabriolet Best Seller; 2000 Jetta VR6; 1990 Vanagon Westfalia
      06-08-2005 07:41 PM #6
      Quote, originally posted by -vertigo- »

      x2!

      Cabby-Info.com -- Your online guide to the VW Cabriolets
      Old Blue's Blog -- The adventures of a 1990 Westfalia
      "Fashion is a waste of money that could be better spent on, say, maintaining your car." ~James May

    7. 06-08-2005 08:48 PM #7
      I'm so happy that you exist, I've been waiting for some one to post a how to for this. I'm just wondering about the trannys that will match. My buddy is swaping out his GTI 5 spd 8v for a VR so I may be able to snag his axels and tranny...thoughts?

    8. Member Moljinar's Avatar
      Join Date
      Sep 20th, 2001
      Location
      Indianapolis, IN
      Posts
      5,916
      Vehicles
      87 Cabriolet, 85 Cabriolet, 90 JettaGL
      06-08-2005 09:37 PM #8
      If it's a 020 tranny then it shoudl fit with no problem. But I'll let everyone else tell you which ones are which. I don't have a list handy.

    9. Member sleshVW's Avatar
      Join Date
      Aug 13th, 2002
      Location
      Niskayuna, NY
      Posts
      1,022
      Vehicles
      81 rabbit convertible (current garage keeper) 2012 Jetta tdi ( company ride)
      06-08-2005 11:02 PM #9
      Oran,
      Great comprehensive writeup. Though my car is already a manual transmission, I found myself reading and saying "wow even I could do this with this kind of writeup."

    10. 06-08-2005 11:51 PM #10
      Really great write-up. It's now printed out for future reference. Thanks!!

    11. Member atomicalex's Avatar
      Join Date
      Feb 2nd, 2001
      Location
      Detroit and Düsseldorf
      Posts
      13,522
      Vehicles
      dark blue stick shift station wagon, shiny yellow motorbike, dirty green motorbike
      06-09-2005 09:41 AM #11
      Awesome, and congratulations on a good job. The one saving grace of my little one is the Manual trans. If you haven't considered a MissingLinkz linkage, do so the minute you have any slop. You will kiss yourself.
      A(u). Klasse A, unbeschrankt, ungedrosselt
      Compared to a British roadster, all Volkswagens are reliable!

      nevAr Lose - DE Minister of Foreign Affairs and Deputy Bankruptcy Controller - IPROfftopikstan

    12. Member Moljinar's Avatar
      Join Date
      Sep 20th, 2001
      Location
      Indianapolis, IN
      Posts
      5,916
      Vehicles
      87 Cabriolet, 85 Cabriolet, 90 JettaGL
      06-09-2005 10:51 AM #12
      I just added another item to the original post. I'll repeat it here...

      9. Rehook up the brake light switch. If you're using a Rabbit pedal bracket the Cabby switch won't work. But if you file one of the two tabs off of it and cut down the other it'll fit ok. Another good reason to get a Cabby bracket in the first place!

      Also new pics!

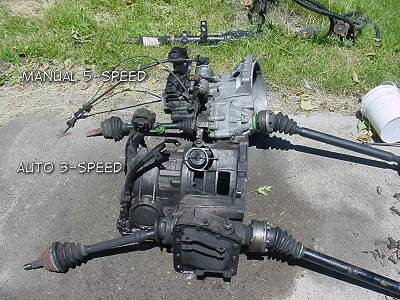

      Tranny size comparison...

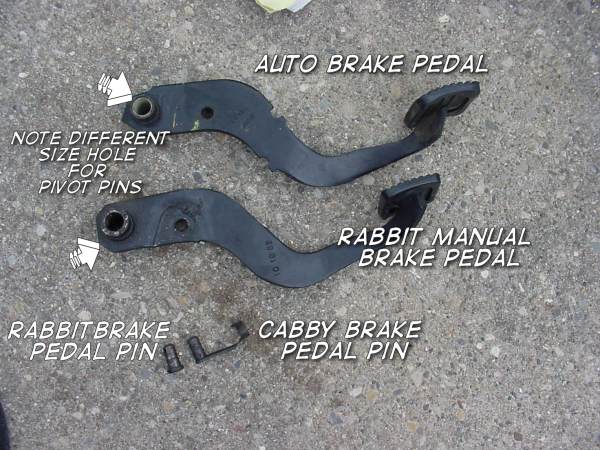

      Brake pedal differences...

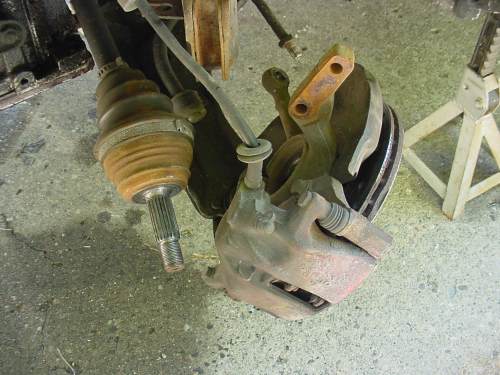

      Axle removal...

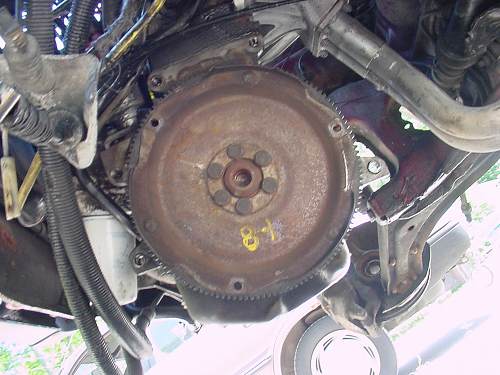

      Automatic driven plate before removal...

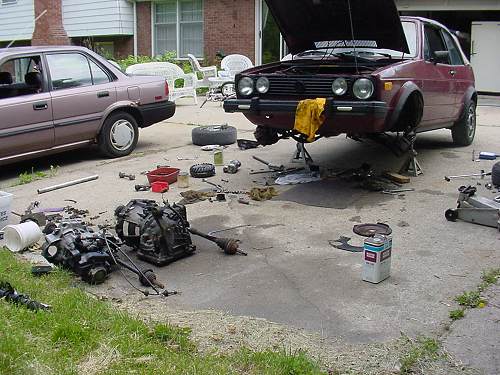

      Don't call OSHA...!




      Modified by Moljinar at 11:00 AM 6-9-2005


    13. 06-09-2005 12:12 PM #13
      outstanding. this forum is great for everyone going the extra mile to document their tricks and tips so they can share it with fellow dubbers! i tip a glass to everyone on here. (i'll be submitting an A/C removal FAQ as soon as i can get my hands on a scanner and figure out how to post pics)

    14. Member Moljinar's Avatar
      Join Date
      Sep 20th, 2001
      Location
      Indianapolis, IN
      Posts
      5,916
      Vehicles
      87 Cabriolet, 85 Cabriolet, 90 JettaGL
      06-09-2005 12:53 PM #14
      Someone asked what I used to do this job so I labeled a pic for you...

      http://p250.merlyyn.com/images/tools.jpg


    15. 06-09-2005 01:30 PM #15
      Great writeup dude! Not that I'd ever buy and automatic car, but if I did this is one job that would get done ASAP

      One thing... On this picture, it looks like the entire assembly is being suspended by the brake line...That's prolly not a good idea, I'd remove the caliper and hang it up on something (strut spring?) so that the line can't get damaged..

      Just my 0.02....Awesome writeup!!!!


    16. 06-09-2005 01:35 PM #16
      Moljinar,

      Sir, Well Done!

      fat biker


    17. Member briano1234's Avatar
      Join Date
      Feb 20th, 2004
      Location
      Atlanta Ga
      Posts
      14,652
      Vehicles
      90, 92, 93 Cabriolet
      06-09-2005 01:44 PM #17
      Cool......I don't really like automatics....personal choice, I be a toffin me hat to ye. Burrrrrrrrrrrrrrrp
      Grounds, Grounds, Grounds Replace them things.
      Divorces, Great Coffee, and Electrics, all start with GOOD Grounds.

      Where are my grounds ?
      I am a Commodian. I tell really Crappy jokes.

    18. Member the_mad_rabbit's Avatar
      Join Date
      Aug 10th, 2003
      Location
      岡山県岡山市、japan/SF Bayarea
      Posts
      10,431
      Vehicles
      Broken Corrado,1.9TD B3 Wagon,MS2 2.0T 82 Jetta,'77 CB750,'82 NC50 Noped(FOR SALE),'71 CT90 Suitcase
      06-09-2005 02:15 PM #18
      Quote, originally posted by mgyver74 »
      Great writeup dude! Not that I'd ever buy and automatic car, but if I did this is one job that would get done ASAP

      One thing... On this picture, it looks like the entire assembly is being suspended by the brake line...That's prolly not a good idea, I'd remove the caliper and hang it up on something (strut spring?) so that the line can't get damaged..

      Just my 0.02....Awesome writeup!!!!

      I do this all the time- as long as you do it carefully it's fine since it's just hanging there.
      The brake line can EASILY support the weight.

      All up in your harble, stealing your internets.
      "Life is like a bad margarita with good tequila, I thought as I poured whiskey onto my granola and faced a new day"
      Grow old or die trying.
      My rocket and My baby...

    19. Member Moljinar's Avatar
      Join Date
      Sep 20th, 2001
      Location
      Indianapolis, IN
      Posts
      5,916
      Vehicles
      87 Cabriolet, 85 Cabriolet, 90 JettaGL
      06-09-2005 02:38 PM #19
      Quote, originally posted by the_mad_rabbit »
      I do this all the time- as long as you do it carefully it's fine since it's just hanging there.
      The brake line can EASILY support the weight.

      I agree! Plus it you look carefully you'll see the real weight is being caried by the lower ball joint adn control arm. The brake line only prevents it from swinging wider.


    20. Member
      Join Date
      May 3rd, 2006
      Location
      Suwanee, GA
      Posts
      807
      07-17-2006 03:12 AM #20
      Hey I have a 1987 manual cabriolet will all the parts from this swap into my 1992 auto cabriolet?

    21. Member Moljinar's Avatar
      Join Date
      Sep 20th, 2001
      Location
      Indianapolis, IN
      Posts
      5,916
      Vehicles
      87 Cabriolet, 85 Cabriolet, 90 JettaGL
      07-17-2006 10:45 AM #21
      I don't know why not!

    22. Member sehaare's Avatar
      Join Date
      Aug 4th, 2003
      Location
      Palatine, IL. But I'll NEVER call Chicagoland home.
      Posts
      4,285
      Vehicles
      2013 TDI Sportwagen, 81 Rabbit Convertible, 92 Cabby (Daughter's), 98 SUV, 2011 Legacy
      07-17-2006 04:53 PM #22
      Oran,

      I'll just echo the rest Great Job!!! I think the write up might have been harder that the actual work

      Steve

      Enjoy every sandwich - Warren Zevon

    23. 06-28-2007 02:00 PM #23
      how much did the whole swap cost?

    24. Member Moljinar's Avatar
      Join Date
      Sep 20th, 2001
      Location
      Indianapolis, IN
      Posts
      5,916
      Vehicles
      87 Cabriolet, 85 Cabriolet, 90 JettaGL
      06-28-2007 03:16 PM #24
      I found the power steering rack for $30, I already had the tranny which is easily found for lerss than $100. The pedal cluster I pulled from a junk car.

    25. Member maushaus's Avatar
      Join Date
      Mar 25th, 2003
      Location
      pennsylvania
      Posts
      2,861
      Vehicles
      1987 vw cabriolet, 2003 jetta wagon
      06-29-2007 12:28 AM #25
      oran...excellent write-up!

      five star rating for readability and content!!!

      peace, kelly

      mice used to live in it, now i drive it...1987 cabriolet

    26. Member Random_Task's Avatar
      Join Date
      Oct 29th, 2006
      Location
      Just above the armpit -co
      Posts
      875
      Vehicles
      1997 318ti. no more vws.
      09-22-2007 02:22 AM #26
      hopefully finishing this up tomorrow! it took me a little longer than you. probly because i didnt know you had to unbolt the torque converter from the flywheel. i just kept wiggling the trans. as for the steering and pedal stuff, if you swap ALL of the steering from the GTI (including the column) it works, you then have to delete the pump tho. while the columns are out of the cars, it makes the pedal cluster removal WAAAAY eaiser, i didnt have to make the slot on top of mine longer.

      thank you for this writeup, if i didnt read it, i probably would have sold my cabby.

      to the texers: sorry to bump such an old post, but i thought the steering imput was pretty important.

      -T


    27. Member 0dd_j0b's Avatar
      Join Date
      Sep 22nd, 2007
      Location
      San Diego CA
      Posts
      2,089
      Vehicles
      87' Cabriolet-Sold, 87' Scirocco now 16v, 87' Scirocco 16v-Sold, 85' Scirocco 8v, 13' Jetta
      09-24-2007 03:26 PM #27
      and to the kid who wrote this one up above, we did finish! woot
      Insert witty comment here.

    28. Member Moljinar's Avatar
      Join Date
      Sep 20th, 2001
      Location
      Indianapolis, IN
      Posts
      5,916
      Vehicles
      87 Cabriolet, 85 Cabriolet, 90 JettaGL
      09-24-2007 11:12 PM #28
      Kid? Who you calling a kid, kid!? I'm 56 years young!

    29. Member LOVINandDUBBIN's Avatar
      Join Date
      Dec 13th, 2006
      Location
      NNJ
      Posts
      1,732
      Vehicles
      88 RHD Mk1 Cabby, 97 VR Cabby, 87 Gti VR, 74 Karman Ghia pan scraper, 64 Bahama Blue Beetle all orig
      09-26-2007 04:08 PM #29
      very nice write up man, post that ish in the FAQ

    30. Member Moljinar's Avatar
      Join Date
      Sep 20th, 2001
      Location
      Indianapolis, IN
      Posts
      5,916
      Vehicles
      87 Cabriolet, 85 Cabriolet, 90 JettaGL
      09-26-2007 05:16 PM #30
      Actually it's listed in the MK1 FAQ. I forgot to post it in the Cabby FAQ.

    31. Member Holden McNeil's Avatar
      Join Date
      Jul 26th, 2004
      Location
      Morris County, NJ
      Posts
      11,344
      Vehicles
      2013 Fiat 500 Turbo
      09-26-2007 09:12 PM #31
      This is one of the most useful threads I've ever seen on the Vorteks! Thanks for writing this process up! I'll be converting my latest project to 5spd and manual steering this winter and a print out will be sitting right next to my Bentley manual....

    32. Member Legoguy's Avatar
      Join Date
      Sep 17th, 2002
      Location
      Spruce Grove, Alberta, Canada
      Posts
      433
      Vehicles
      1988 VW Cabriolet 16V / 1992 VW Cabriolet Wolfsburg Edition / 2008 Rabbit 2.5L
      11-11-2008 05:57 PM #32
      I almost wish I saw this *before* I did my 8V Auto -> 16V Manual swap. But you're missing one thing!

      Which wires to hook up to reverse light switch? Surprisingly, the auto neutral safety switch isn't mentioned anywhere in the Bentley wiring diagrams, and that's where the automatic's switch is; I guess I'll just need to trace wires..


    33. Member Moljinar's Avatar
      Join Date
      Sep 20th, 2001
      Location
      Indianapolis, IN
      Posts
      5,916
      Vehicles
      87 Cabriolet, 85 Cabriolet, 90 JettaGL
      11-11-2008 07:51 PM #33
      My deep dark secret is that I never got around to wiring my backup switch.

      The wires for the auto switch are below the shifter console. You'll see them when replacing the shifter. Extend those wires thru the firewall to thew tranny's backup switch. There are two different kinds of backup switches depends on which tranny you have.


    34. Member tolusina's Avatar
      Join Date
      Oct 18th, 2004
      Location
      313
      Posts
      10,493
      Vehicles
      '95 Ranger, '74 Gitane Pista
      11-11-2008 11:40 PM #34
      Broke shows the reverse light switch and wire terminals for manual trans reverse light switches here......
      http://www.brokevw.com/reverseswitch.html





      vwvortex search is weak. Instead, type search terms site:http://forums.vwvortex.com into the google search box.
      Quote Originally Posted by kamzcab86
      I hate reading: "But I bought this car for $500 and don't want to put another dime into it."
      ____(hey, it's VW AND it's electrical, what's not to fail?) neoBentley+

    35. 12-07-2008 06:36 PM #35
      Howdy from the Rocky Mountains.

      New Guy to the Vortex but I've been lurking for a long time. My son & I have been involved in the Denver DCI but last year he bought a 02 GTI & sold his 86 GTI. He kinda lost his interest in workin on old cars.

      I had an 80 Rocco but it was beat to death & had a cracked right front Suspension Mount. The previous owner gave it flying lessons. Busted Upper Shock Mounts, Oil Pan & a cracked front frame.

      We got it running but it was Hail Damaged & very ugly. I started looking for a Transplant Candidate. I found a 89 Cabby with a Dead Auto Trans, Blown Motor, a nice Body with a good top.

      Since the Rocco's motor was good, I decided to make 1 car out of 2. The Rocco's Trans was an FF so I had to drive it 1 gear lower than you would expect to get any fun out of it.

      I figured I was in for a penny in, for a pound & located a GTI Trans. I had it rebuilt at Denver Transmission with a Pelquin Limited Slip Washer, all new Syncros, Bearings & a 5th Gear from the FF. I replaced the Flywheel with a lightened one & Sachs Clutch. So, that makes it 1 car out of 3. So the name is FrankenCabby.

      Old Dead Motor came out along with AutoTrans, A/C, Power Steering & the whole front suspension. THese parts joined the Rocco, thank you Cars for Kids.

      GTI Trans has 100 mm Axles, so I replaced them & the front Hub Bearings & 10.1 Discs. I found a thread with a discussion on the 100 mm Axles rubbing on the inside of the Hub Carrier. Careful Grinding & repeated assembly & all worked fine.

      Reassembly of the Motor, Trans, Front Suspension, Axles, Hubs & Discs followed. Oh yeah, Manual Trans Steering Rack to replace the P/S Rack & to provide the Shift Linkage Mounting points. A Missing Linkz Shift Linkage Kit went in & she back on the ground!!!

      Pedal Cluster replacement pointed out the Dash Mount bolt for Cluster was no longer spot welded & I spent a couple of hours getting it out. Rented a Welder to put a new one back in. Since I was worried about the Welder cooking the Gauges, out came the Dash & all Gauges. Wires are verywhere.

      Your Proceedure was a great help but I'm stuck. The Rocco Motor is 9 years older than the Cabby & I have a lot of wires that go I don't know where & an assortment of Sensors that do I don't know what.

      All this is complicated by my schedule. This project is now 4 years in the making & my wife is sure it will never move under its own power again.

      I did notice that you didn't mention the Speedo Drive Gear. THe AutoTrans Drive Gear wouldn't work with the 5 Speed. I think I need one from a GTI, Orange/Red Gear.

      Maybe I should be looking in one of the Engine Swap Threads but thought I would start here. Any help would be greatly appreciated.


    Page 1 of 3 123 LastLast

    Posting Permissions

    • You may not post new threads
    • You may not post replies
    • You may not post attachments
    • You may not edit your posts
    •
