      06-02-2010 11:56 PM #281
      i have loved every single update to this thread but hearing it start for the first time was most excellent!
      especially the way everything is thought out and planned then executed, love seeing the CAD stuff (did some of that in h.s. and college so its fun to see) great job sir.

      cant wait to see this in person!!!

    2. 08-04-2010 12:23 AM #282
      This thread made me actually get an account just so I could complain! I was looking forward to seeing a finished car on page nine!! LOL!
      But you are doing a great job! And if you have the time can you send me the pics of the CAD screen shots so I can blow them up to look at them better?

      Also, what are you going to do with the Intake? How are you going to mount that?

    3. Member laminaytrap's Avatar
      Join Date
      Oct 31st, 2009
      Location
      sauga/skoka
      Posts
      124
      Vehicles
      96 GL IDI TD
      09-10-2010 11:06 AM #283
      Benny!

      Where are the updates???

      Jon

    4. Member garasja's Avatar
      Join Date
      May 12th, 2010
      Location
      Aalesund Norway
      Posts
      567
      Vehicles
      Scirocco mk1 Rieger GTO 1,8 20VT Mid Engine RWD
      11-26-2010 02:47 PM #284
      You doing a great job. Check out my rwd project.

    5. Member vwkid_Zach's Avatar
      Join Date
      Dec 14th, 2007
      Location
      Rochelle, IL
      Posts
      515
      Vehicles
      1987 Scirocco 16V 1998 Chevy Blazer LS
      11-26-2010 10:25 PM #285
      Quote Originally Posted by BennyB View Post
      Aquired the following parts:
      - complete timing chain kit
      - metal head gasket
      - all new seals
      - new head bolts
      - new crack pipe
      - lightened the flywheel
      - unorthodox pulley clones (crank and alt pulley)
      - 268 Cat cams
      Oh so thats how you learn all this CAD mumbo jumbo.... pass the pipe bud. We all want a Mid engine VR6 rocco now

      Zach

    6. 11-27-2010 05:27 AM #286
      Found this thread here today...and what should I say?

      DAMN THIS IST HOT!!!

      One of the most indcredible builds I´ve ever seen. (And I have seen a lot of builds in my life...)

      How do you pay the cost for those builds? With a normally job you can´t do something like this here in germany...

      Impressed regards...

    7. Member BennyB's Avatar
      Join Date
      Mar 27th, 2000
      Location
      Orono, ON, Canada
      Posts
      1,004
      Vehicles
      81 Scirocco Mid-Engine VR6, 81 Scirocco, 05 Golf TDI, 00 Audi TT, 90 Corrado Racecar
      12-12-2010 06:14 PM #287
      Just a quick note to confirm that I'm not dead, and I still think about this project every day! I found a house with more suitable shop space - 28x30 with a loft for storage and a lean off the side to store 2 more cars. But that requires selling this house which has been alot of work lately. I've been purposefully avoining vwvortex because it's a time vortex, but I miss everyone!

    8. Member cabrlicious's Avatar
      Join Date
      Jan 27th, 2008
      Location
      jersey burbs
      Posts
      1,043
      Vehicles
      12v bimbo bucket, 16v rabbit, buy my b4 wagon please!
      01-03-2011 07:22 PM #288
      cmon benny sell that house, build that car.

    9. Member garasja's Avatar
      Join Date
      May 12th, 2010
      Location
      Aalesund Norway
      Posts
      567
      Vehicles
      Scirocco mk1 Rieger GTO 1,8 20VT Mid Engine RWD
      02-11-2011 07:26 PM #289
      what happen with this project? give us a update please

    10. Member mk1daily's Avatar
      Join Date
      Jan 7th, 2010
      Location
      Tacoma, WA
      Posts
      1,042
      Vehicles
      '81 2.0 Rabbit, '87 1.8 carbed Cabby, '80 350 Rat Rod Caddy
      05-04-2011 01:12 PM #290
      Quote Originally Posted by garasja View Post
      what happen with this project? give us a update please


      Project looks amazing

    11. Member atoson's Avatar
      Join Date
      Dec 28th, 2002
      Location
      San Jose, Ca. South Bay Area
      Posts
      5,538
      Vehicles
      12 Golf TDI, 00 GTI, 00 NB, 84 Scirocco, 80 Dasher
      05-04-2011 02:46 PM #291
      If anyone notices that this thread started in 2006. Let's just give this guy the credit he truly deserves specially if gets this rolling.

    12. Member punchbug's Avatar
      Join Date
      Jul 15th, 2000
      Location
      Ontario's deep south
      Posts
      8,146
      Vehicles
      Assorted German Scrapmetal and a really old aircooled 'murrican trike!
      05-04-2011 03:58 PM #292
      Quote Originally Posted by atoson View Post
      If anyone notices that this thread started in 2006. Let's just give this guy the credit he truly deserves specially if gets this rolling.
      I recall going with Ben way back in the day to get a pair of LSDs and gettting messed up at the border. He had that car then and I sincerely doubt that he'll be ignoring it any time soon. I just had the one Scirocco the first time I saw that car, and at that time he'd just done the heroic overnight marathon 16V swap with friend who also did one. So once he gets his housing settled, I'd expect this build to make huge advances very quickly. Best of luck with it Ben!

    13. Member BennyB's Avatar
      Join Date
      Mar 27th, 2000
      Location
      Orono, ON, Canada
      Posts
      1,004
      Vehicles
      81 Scirocco Mid-Engine VR6, 81 Scirocco, 05 Golf TDI, 00 Audi TT, 90 Corrado Racecar
      05-10-2011 09:18 PM #293
      hey, I'm still alive. The new place needs some work, but part of that was the electrical line I just finished out to the garage. It was only 220V 30 amp on 12 gauge before, now I'm cookin' with 220V 100amp on 3gauge wires! Various welder and machinery hookups still needed.

      There's tons more space, all of it seems to be occupied by all the junk I had in 1/4 the area at the last place. It will take some time to get organized.

      No height for a hoist, but I'm thankful for the 2nd floor storage instead and the car is sitting over a pit. Never used a pit before, I'm sure it will help. Once I get everything sorted, there will be lots of room to get things done quick!




      I was going to put a big push on, but we decided import an '83 Westy from California to BC and drive it back to Ontario. Should be a fun trip with the family!

    14. Member .T.o.n.y.'s Avatar
      Join Date
      Apr 3rd, 2003
      Location
      Hells heat AZ
      Posts
      5,014
      Vehicles
      96' Jetta aba-t, 00' Audi A4, 01' Passat 30v
      06-27-2011 12:06 PM #294
      Looks awesome.
      I am a Vortex build addict, click the link below to check out my builds and join in on my addiction:
      http://forums.vwvortex.com/showthrea...0#post85285470

    15. Junior Member sciroccokidJ's Avatar
      Join Date
      Jun 26th, 2011
      Location
      buffalo, ny
      Posts
      78
      Vehicles
      98 Jetta, 94 Jetta, 97 Cabby, 86 Scirocco DLX
      06-27-2011 03:42 PM #295
      hey im thinkn about doin the same thing i have n 86' scirocco and i got the vr6 motor from a 94 golf gli but i've seen the motor put in the front lik usual so to c it how ur goin is gonna b unique u got props from me!!! :p keep us posted.
      sciroccokidJ VDUB LIFE

    16. Member TREKSportMK3's Avatar
      Join Date
      Jan 31st, 2009
      Location
      Johnson City, TN 37601
      Posts
      621
      Vehicles
      '96 Jetta Trek, 94 Jetta GL
      12-26-2011 03:28 PM #296
      just had to bump this, hope we can see it get finished soon, ive thought about some crazy projects, but the in depth detail youve put into this is so intense, my mind cant even follow, and its abstract!
      Quote Originally Posted by oilhammer View Post
      No of course not. This is a German car. It would be called 'Failtronic'.

    17. Member WRC_413X's Avatar
      Join Date
      Mar 28th, 2006
      Location
      Norwich, CT
      Posts
      365
      Vehicles
      97 GTI, 944
      02-16-2012 11:45 AM #297
      Insane project, i always love seeing someone go out of the standard engineering mod comfort zone and making it whatever they want!

    18. Member BennyB's Avatar
      Join Date
      Mar 27th, 2000
      Location
      Orono, ON, Canada
      Posts
      1,004
      Vehicles
      81 Scirocco Mid-Engine VR6, 81 Scirocco, 05 Golf TDI, 00 Audi TT, 90 Corrado Racecar
      07-26-2012 03:53 PM #298
      Time to revive the thread. Now that I finally finished writing my master's thesis, I can work on the car again guilt free! There are some cool parts I've picked up along the way that I should get pictures of (aluminum fuel tank, Bosch 044 pump, Wilwood front brakes and adapters, clutch master)

      The Task list:

      hydraulic clutch pedal

      master mount
      get linkage clip holder
      acquire line for fitting calculations
      fabricate line and mounts

      M14 LH lock nuts
      Build rear cage/closeout
      exhaust

      get V-band clamp
      get muffler
      build downpipe
      build tailpipes
      muffler hangers
      02 sensor bungs

      cooling system

      purchase heater core bypass
      source alt/water pump belt
      front rad mounts
      front rad lines and mounts
      coolant reservoir mount and plumbing
      rad fan wiring
      main rad plumbing
      heater core plumbing
      coolant temp

      electrical

      battery mount
      starter wiring
      engine wiring
      ECU mount
      electronic throttle pedal
      tach signal
      speedo driver
      oil temp
      alternator light
      oil pressure light
      MIL light
      OBD connector

      shifter linkage
      modify half-shafts
      suspension

      fix front cross mount
      subframe
      rear supports
      cross support
      tie rod mount top braces
      bolts or isolation mounts
      rocker arms
      rocker arm mounts
      upper damper eyelets
      lower damper eyelets
      pushrods
      pushrod mounts
      design ARB

      fuel system

      tank mounts
      pump/filter mount
      pump wiring
      make -6AN to M14x1.5 and M12x1.5 fittings
      fuel lines
      fuel level sender

      wheels\tires

      source tires
      machine wheel centers
      build wheels
      get tuner bolts?

      rear brakes

      Source rear spot calipers
      design/build rear spot caliper mount

      remake tie rod threaded adjuster

    19. 07-26-2012 05:04 PM #299
      Tanna Leaves to you my friend, welcome back!

    20. Member BennyB's Avatar
      Join Date
      Mar 27th, 2000
      Location
      Orono, ON, Canada
      Posts
      1,004
      Vehicles
      81 Scirocco Mid-Engine VR6, 81 Scirocco, 05 Golf TDI, 00 Audi TT, 90 Corrado Racecar
      07-26-2012 06:37 PM #300
      Yes, it has been a while. Other mid engine MK1 Sciroccos have been built in my absence!

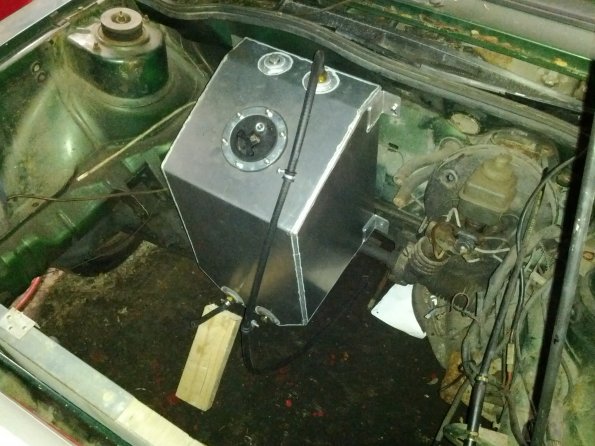

      Here is the 11gal (40L) aluminum tank I happened to find that was exactly what I was looking for. I wanted something rearward mounted and tall in the front, so there was room between it and the radiator for a 'crush zone' in an accident.

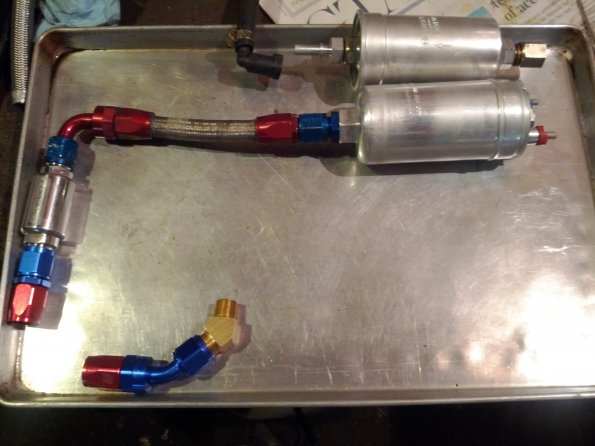

      so that spawned getting some pieces for the fuel system sorted out.
      Bosch 0 580 254 044. Minumum flow at 5bar operating pressure = 300 Litres per hour and good for 700hp. M18x1.5 inlet threads, M12x1.5 outlet. I ordered the M18x1.5 to -8AN adapter for the inlet and a screen filter to keep the big junk out of the pump. I'm still sorting out the pump to filter connection. I might just use the banjo bolts somehow, since that way I can use the check valve on the pump outlet. I'm just concerned about the flow restriction with the banjo fittings. I made an adapter for the other side of the filter to the push-on MK4 fuel line fitting.


    21. Member BennyB's Avatar
      Join Date
      Mar 27th, 2000
      Location
      Orono, ON, Canada
      Posts
      1,004
      Vehicles
      81 Scirocco Mid-Engine VR6, 81 Scirocco, 05 Golf TDI, 00 Audi TT, 90 Corrado Racecar
      07-26-2012 11:34 PM #301
      I haven't done any CAD in a while, so it was fun to get back into it with a MK4 clutch master:



    22. Member BennyB's Avatar
      Join Date
      Mar 27th, 2000
      Location
      Orono, ON, Canada
      Posts
      1,004
      Vehicles
      81 Scirocco Mid-Engine VR6, 81 Scirocco, 05 Golf TDI, 00 Audi TT, 90 Corrado Racecar
      07-31-2012 12:24 AM #302

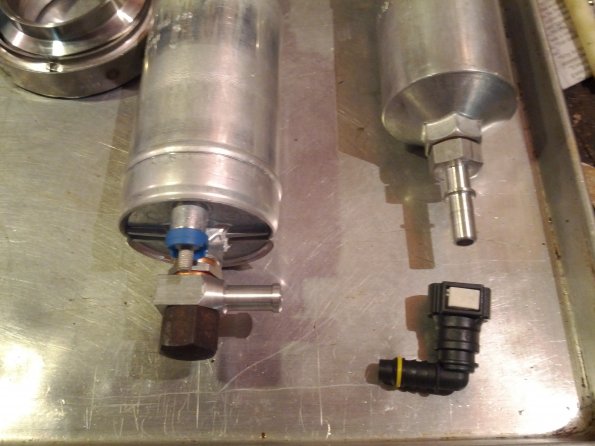

      Making an M12 banjo bolt to 3/8"ID hose adapter for the fuel pump. Temporary, until I can order some -6AN fittings

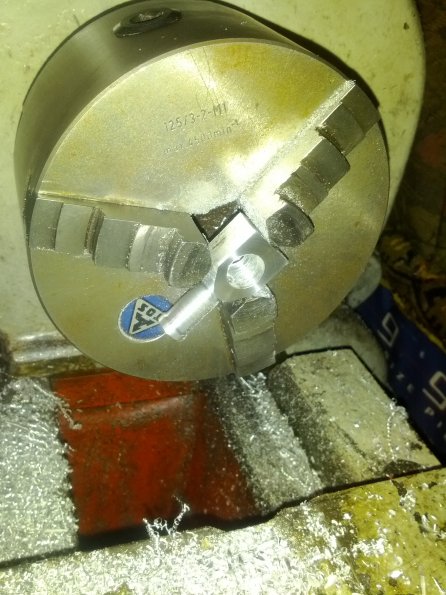

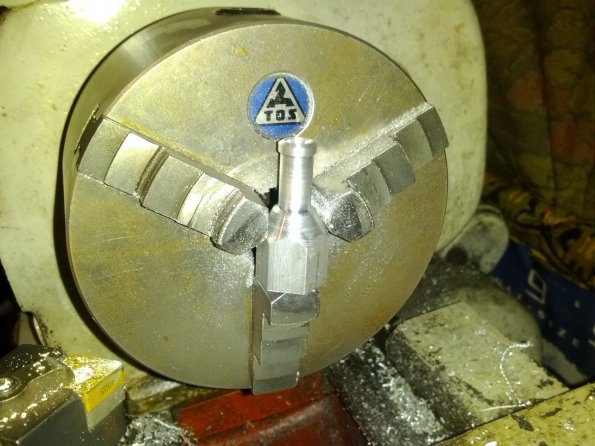

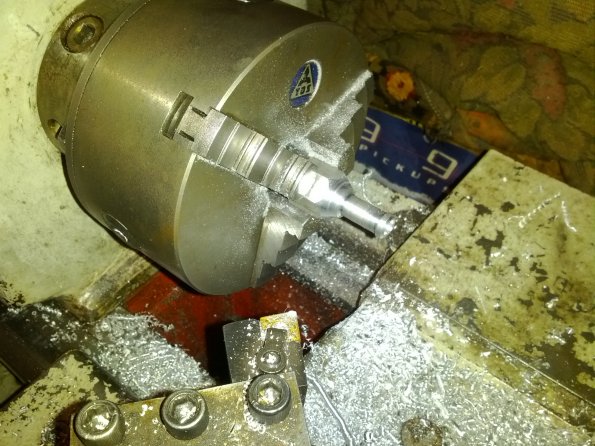

      Starting with some 3/4" aluminum hex stock, I cut the nipple part and crucially, a 60deg angle


      Here's where it gets interesting. Lining it up took some fussing about. I needed a bit more taken taken off the angled part to center it better


      cut the face, drill it out. I had pre-drilled into the center when I made the nipple, which was a mistake since the drill bit wobbled when it encountered the sideways hole. Next time I would only drill it part way and then just hand drill out the last bit.


      I didn't really have a good tool to cut the relief on the inside bore for the fuel to flow, but an internal thread tool wasn't bad.

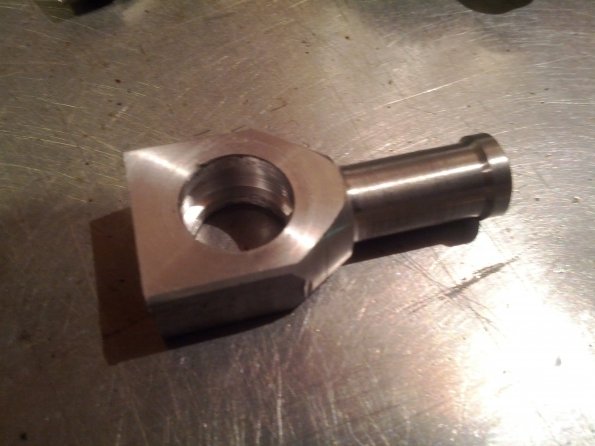

      Finished:


      Made some for the fuel filter too, but much simpler

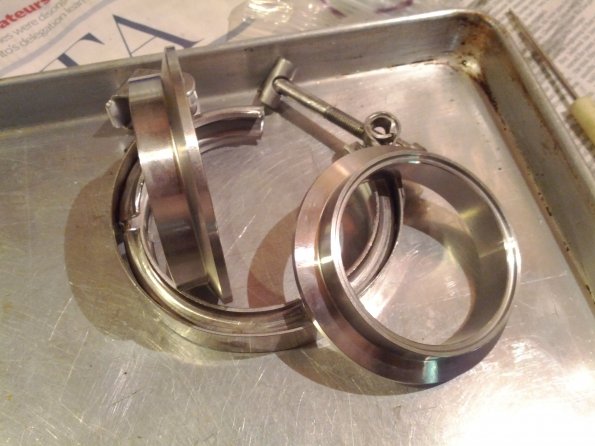

      Got a 2.5" V-band clamp and 2.5" Magnaflow muffler for the exhaust. I still need to order some stainless bends though.

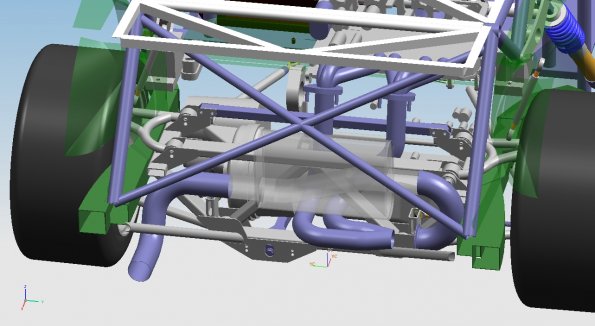

      exhaust layout:


      Lots to do still, but I want to get it briefly running again just so I know it isn't all seized up.
      Last edited by BennyB; 07-31-2012 at 12:25 AM. Reason: bad link

    23. Member BennyB's Avatar
      Join Date
      Mar 27th, 2000
      Location
      Orono, ON, Canada
      Posts
      1,004
      Vehicles
      81 Scirocco Mid-Engine VR6, 81 Scirocco, 05 Golf TDI, 00 Audi TT, 90 Corrado Racecar
      08-01-2012 03:49 PM #303
      I was working on some wiring last night. I am now lamenting having removed the battery tray when I relocated the battery to the trunk earlier in the car's life. Now the battery has to go back to the front.

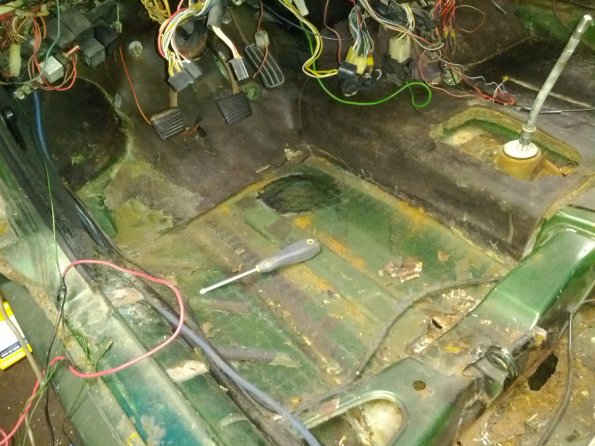

      I took the carpet out for now and removed sound deadening. I don't think it will do much sound isolation in that location with the engine in the back now! Floors are not good under the front seat mount.

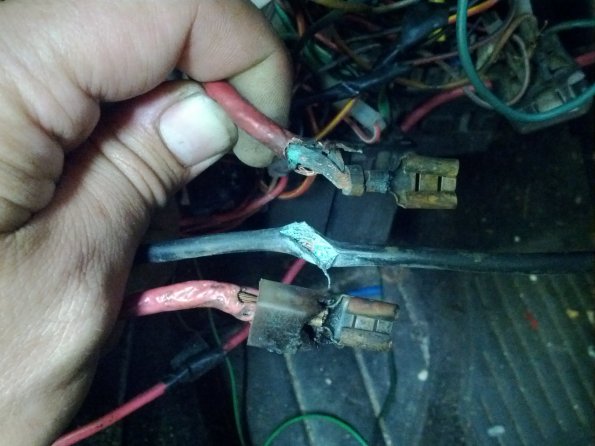

      Trifecta of bad wiring:

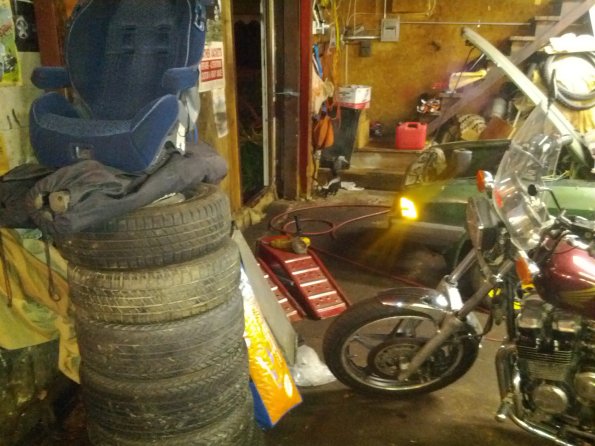

      Had a black and white visitor(between door and stairs) while I was sitting at the fuse panel unwrapping wiring loom. he walked right by the open passenger side door and rooted around in the back of the shop for a while before getting bored and leaving.


    24. Member BennyB's Avatar
      Join Date
      Mar 27th, 2000
      Location
      Orono, ON, Canada
      Posts
      1,004
      Vehicles
      81 Scirocco Mid-Engine VR6, 81 Scirocco, 05 Golf TDI, 00 Audi TT, 90 Corrado Racecar
      08-01-2012 06:07 PM #304
      This beer kicks my ass, and makes it hard to get anything done. Any other tallboy after work and I don't even notice.

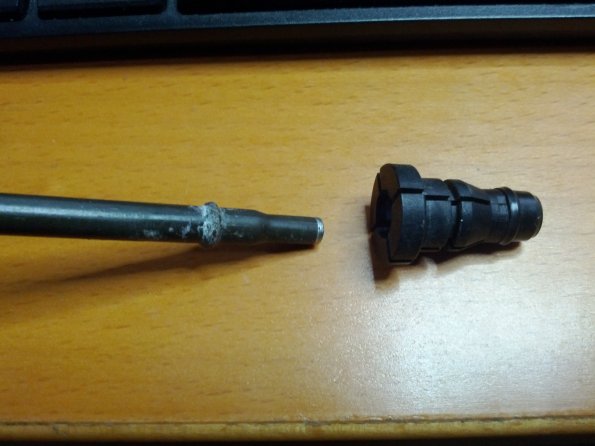

      At least I hit the scrap yard and found the weird clutch master fitting:

    25. Member BennyB's Avatar
      Join Date
      Mar 27th, 2000
      Location
      Orono, ON, Canada
      Posts
      1,004
      Vehicles
      81 Scirocco Mid-Engine VR6, 81 Scirocco, 05 Golf TDI, 00 Audi TT, 90 Corrado Racecar
      09-19-2012 10:42 AM #305

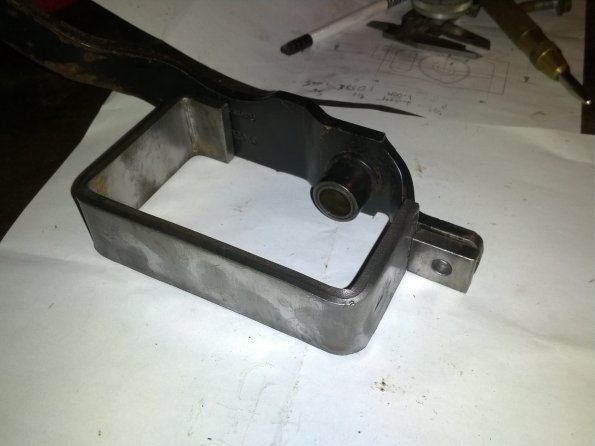

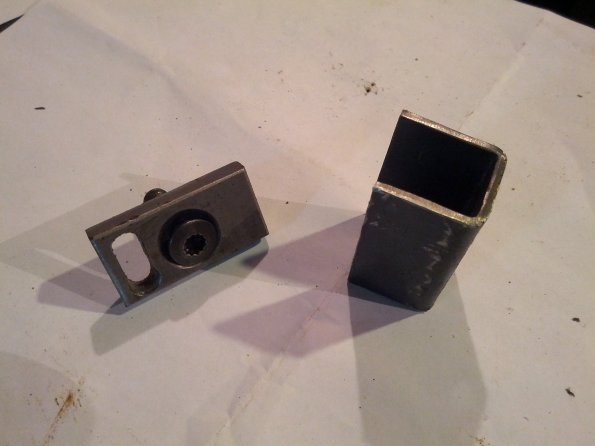

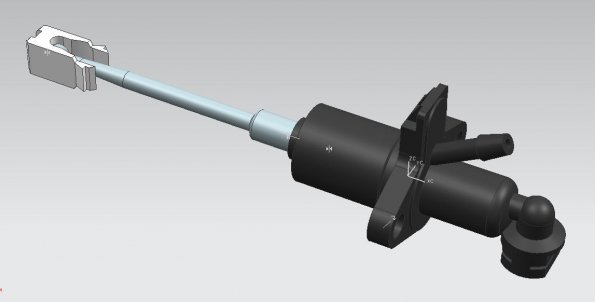

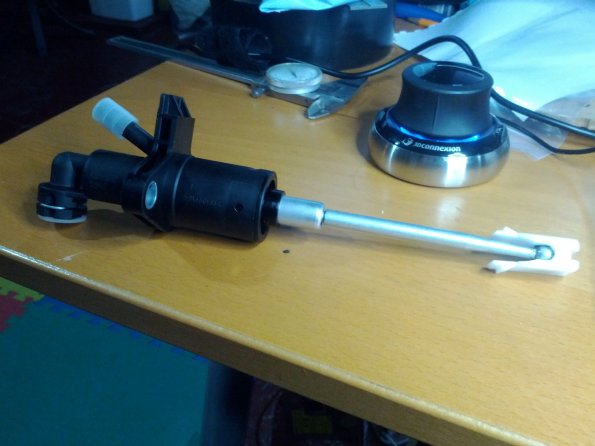

      I've been working on the hydraulic clutch master and pedal mod. I used lots of info from FunkSoulKitty.org (thanks!) and changed it a bit so I can bolt on the pedal adapter and not remove the steering column to take the pedal off. I also moved the master a bit lower so it doesn't need as much angle on the firewall spacer. The other notable difference is that I'm working on a clip adapter to use the standard MK4 clip so I don't have to modify the master cylinder at all.






    26. Member VWsciroccoWV's Avatar
      Join Date
      Nov 15th, 2010
      Location
      Puyallup, Washington
      Posts
      333
      Vehicles
      1981 Scirocco S, 1983 Scirocco 8v (RIP), 1968 Buick Skylark, Chevrolet Caprice Police Issue
      09-19-2012 11:28 AM #306
      You have no idea how happy I am, and I'm sure the rest of the scirocco community, to see this is still alive! I came across this thread a while ago and saw that posts just sorta... Stopped.

      Glad to see you're still doing this, that thing's gonna be a monster! Good luck!

    27. Member BennyB's Avatar
      Join Date
      Mar 27th, 2000
      Location
      Orono, ON, Canada
      Posts
      1,004
      Vehicles
      81 Scirocco Mid-Engine VR6, 81 Scirocco, 05 Golf TDI, 00 Audi TT, 90 Corrado Racecar
      09-19-2012 01:34 PM #307
      I just finished my MSc in Engineering last week, which I started in 2003. So now that I'm done, I get to work on the Scirocco again. It was a self imposed rule (sometimes broken) to stimulate the 'gumption' required to finish writing my thesis. So if I can hold off building a second bathroom for a while, I should be able to get moving on this.

    28. Member atoson's Avatar
      Join Date
      Dec 28th, 2002
      Location
      San Jose, Ca. South Bay Area
      Posts
      5,538
      Vehicles
      12 Golf TDI, 00 GTI, 00 NB, 84 Scirocco, 80 Dasher
      09-19-2012 05:58 PM #308
      Congratulation! Long time coming

    29. Member BennyB's Avatar
      Join Date
      Mar 27th, 2000
      Location
      Orono, ON, Canada
      Posts
      1,004
      Vehicles
      81 Scirocco Mid-Engine VR6, 81 Scirocco, 05 Golf TDI, 00 Audi TT, 90 Corrado Racecar
      09-19-2012 11:30 PM #309
      Thanks. If anyone is ever interested in reading about a "Control System and Simulation Design for an All-Wheel-Drive Formula SAE Car Using a Neural Network Estimated Slip Angle Velocity"
      here is the link: http://hdl.handle.net/10214/3974

      I finished the clip bracket tonight:


      Final pieces to make (for the clutch) are the engine side angle bracket with a slight taper of about 3 deg, and the inside firewall reinforcing plates.

    30. Member d-bot's Avatar
      Join Date
      Sep 6th, 2004
      Location
      Seattle
      Posts
      11,245
      Vehicles
      S1 Storm 20vSC-AWD, 93 Corrado VR6
      09-19-2012 11:54 PM #310
      The clip in MC is a great idea. I've thought about doing it that way in the past but always threaded the MC push rod instead and added a rod end. Keep up the good progress

    31. 09-21-2012 12:11 AM #311
      Quote Originally Posted by BennyB View Post
      Thanks. If anyone is ever interested in reading about a "Control System and Simulation Design for an All-Wheel-Drive Formula SAE Car Using a Neural Network Estimated Slip Angle Velocity"
      here is the link: http://hdl.handle.net/10214/3974

      I finished the clip bracket tonight:


      Final pieces to make (for the clutch) are the engine side angle bracket with a slight taper of about 3 deg, and the inside firewall reinforcing plates.
      Just speed read that. So he's using an ECU to control how the car handles.....couldn't he just say that? Neural Network estimated slip angle velocity?....sheesh.

      Great build btw.


    32. Member BennyB's Avatar
      Join Date
      Mar 27th, 2000
      Location
      Orono, ON, Canada
      Posts
      1,004
      Vehicles
      81 Scirocco Mid-Engine VR6, 81 Scirocco, 05 Golf TDI, 00 Audi TT, 90 Corrado Racecar
      09-26-2012 10:42 PM #313
      Quote Originally Posted by d-bot View Post
      The clip in MC is a great idea. I've thought about doing it that way in the past but always threaded the MC push rod instead and added a rod end. Keep up the good progress
      If I did it again, I would go that way, since then there is an easy depth adjustment. The clip was more of a pain to make than I expected. The bar stock I was going to machine it from was too hard and killed a cutter, so I switched it up an bent a U channel from 2mm sheet steel and machined the slots after welding it to the base piece.

      I started making some adapters to connect the slave bleeder and master to -4AN fittings. I could have spliced the piece of line I have but don't have easy access to 6mm bubble flare fittings.

      I'm making an extra set while I'm at it( if anyone else goes this route).
      I got stuck here because I need to buy a thinner tool to cut the grooves.

    33. Member websaabn's Avatar
      Join Date
      May 23rd, 2003
      Location
      Hopkins, sc
      Posts
      3,787
      10-05-2012 11:19 AM #314
      amazing work, Motivates me to get out in the garage and get to work on my Europa!
      Instagram- @websaabn

    34. Member WRC_413X's Avatar
      Join Date
      Mar 28th, 2006
      Location
      Norwich, CT
      Posts
      365
      Vehicles
      97 GTI, 944
      10-18-2012 11:07 AM #315
      Awesome fab work, keep it going!

    Page 9 of 11 FirstFirst ... 567891011 LastLast

    Posting Permissions

    • You may not post new threads
    • You may not post replies
    • You may not post attachments
    • You may not edit your posts
    •
