    Thread: DIY / Review: Helix Replica Jetta OEM HID Projectors

    1. Senior Member bluefox280's Avatar
      Join Date
      Dec 17th, 2003
      Location
      Broomfield, CO
      Posts
      23,093
      09-19-2006 11:59 PM #1
      Oh, the joys of proper exterior lighting on a vehicle!

      Background:
      HIDs, or as correctly known as High Intensity Discharge lights, are coveted... constantly.
      And the only way to get good fitting / looking HIDs was buying OEM components.
      That was until Helix and Eastern Euro Tuning (EET) (PLEASE NOTE: EET is having some business problems) brought out replica OEM projector housings.
      I, like many, DROOLED in thought of owning HIDs...
      Taking the challenge, I bought the headlights to give them a whirl.

      - Disclaimer -
      As always, I am NOT responsible for the careless acts of others when using this DIY as a reference.
      Basically all of you are smart enough not to stab yourself, the very important wiring, or the paint on your car.
      Be careful and take any precautionary measures that you deem necessary for completing this task.

      Supplies:
      * Helix HX Bora OEM HID Replica Headlights (pair - left + right)
      - includes two euro harnesses, two American harnesses, four D2S bulb holders, three blanks to fill in euro harness holes, and HID-harness jumper
      * (2x) D2S bulbs + ballasts
      * (2x) BAX9S city light bulbs / LEDs
      * (2x) H21W halogen bulbs (Audi P/N #N-104-456-02)
      * (2x) H7 headlight bulbs

      * (4x) 1/4" male spade electrical connectors (if HID-harness jumpers are not included)

      Tools:
      * flathead screwdriver
      * Phillips screwdriver
      * dremel
      * electrical crimper
      * Sharpie marker

      Process:
      - Remove backside cover with headlight connection on it
      - Remove European 12-pin connector + harness from headlight housing
      - Dremel off excess flash off the American 10-pin connector to allow proper fitment
      - Install American 10-pin connector + harness that came with headlights (retainer tab facing upwards)
      - Install H7, BAX9S, and H21W (do not touch H7 glass) and connect to appropriate wiring harness connections [Figure #3]
      - Remove HID backside cover, install D2S bulb with retainer ring
      - Wire HID leads to headlight harness through headlight housing [Figure #3]
      - Install male spade electrical connections if HID-harness jumper is not included
      - Install ballast connection to D2S bulb, allow wire to hang naturally
      - Place HID backside cover over the seem and determine appropriate place + size for wiring hole; mark accordingly
      - Dremel out hole at the seal connection to allow ballast connection and HID leads to pass through backside cover
      - Optional: mount ballasts to headlight housings; some ingenuity and extra supplies may be required depending on ballast holder...
      - Install on vehicle, testing light output first, by removing the grill, front fasica and existing headlights

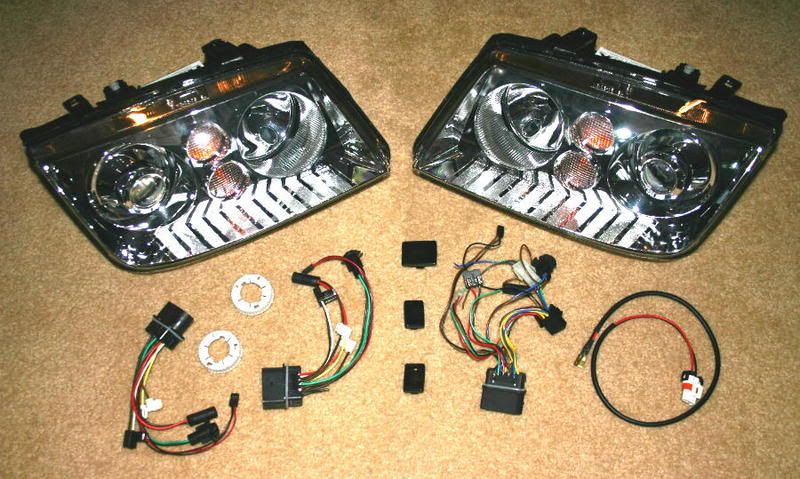

      Figure #1: The headlight package from EET; hidden from view are two D2S retainer rings, and one European harness

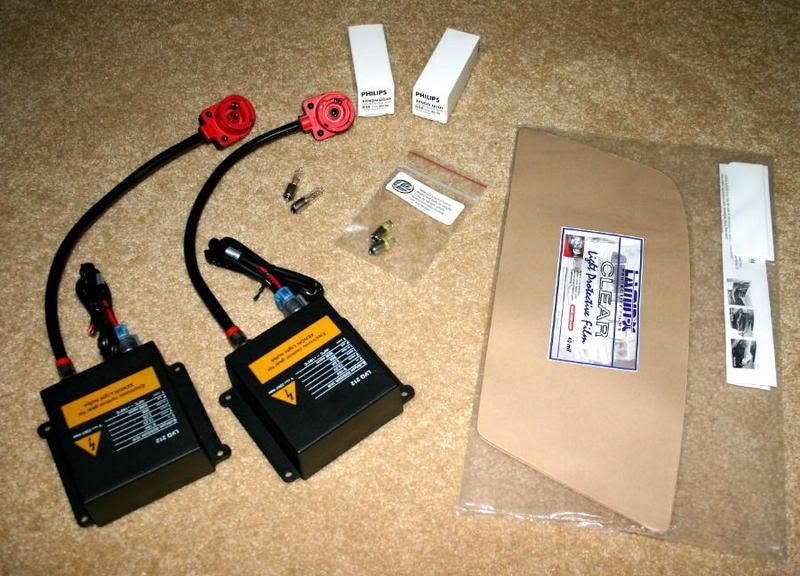

      Figure #2: The bulbs and extras (Lamin-x for the headlights); not shown are the H7's

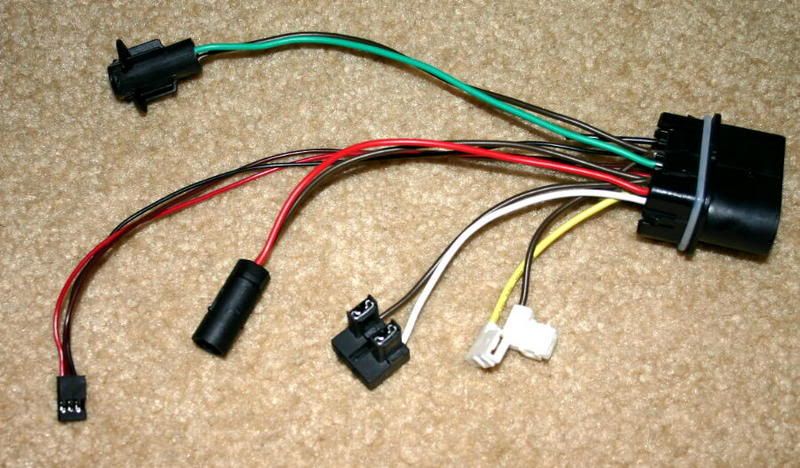

      Figure #3: The American 10-pin connector wiring harness [starting at top, going counter-clockwise]
      - H21W socket (green, black)
      - Rheostat connector? (red, black, brown) - NOT USED!
      - BAX9S socket (red, black)
      - H7 socket (white, brown)
      - D2S female terminals (yellow [positive +], brown [grown, negative -])

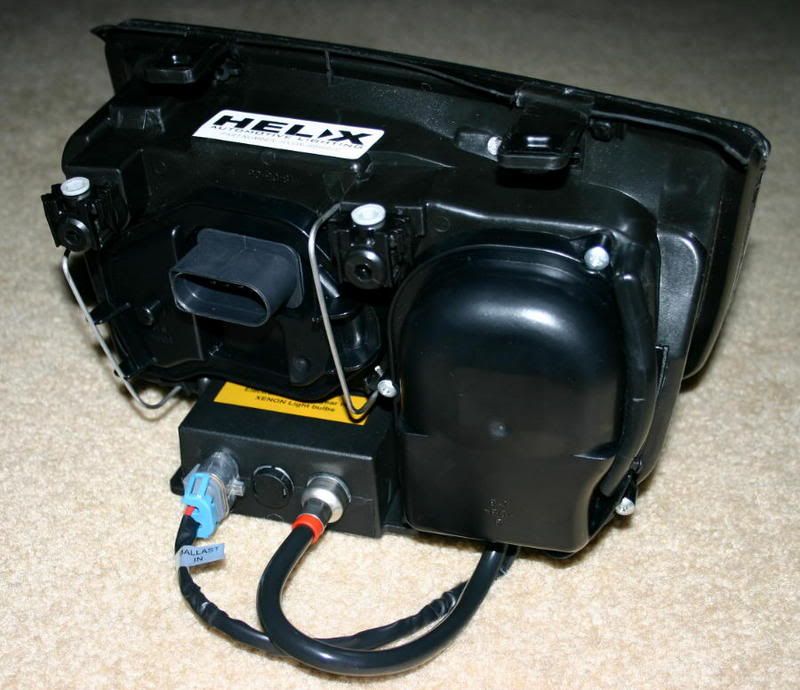

      Figure #4: Ballast mounted, and all covers on headlight housing

      Full Detail Review:

      Installation
      After researching from other who purchased the headlights, they said it would be a straight plug-n-play modification.
      It was! The only electrical installation I had to make was adding male spade connections for the HID ballast leads.
      I was hoping that the ballasts could mount underneath the housing similar to the OEM HIDs...
      However, upon installation, the ballasts sit too low and deep into the engine bay.
      There was interference with the intercooler-throttle body charge pipe (passenger), and the battery (driver).
      But, after removing them from the housings, they fit snug inbetween the wash tank (passenger) and the battery (driver) without issue.

      Fitment + Finish
      The housings fit great in the front clip assembly.
      Body lines and overall fit + finish is spectacular for aftermarket lights.
      And the price is reasonable compared to hard to find and overly expensive OEM HIDs.

      Aiming / Alignment
      This can be debated, but assumed the projectors should be leveled at the same way incadecent European (e-codes) headlights are.
      Upon that, I run out of physical adjustment on the headlights using the screw dials, and they were still to low.
      Therefore, I had to shim the lower two mounting tabs to "lift" up the housing to get correct aiming.

      Lighting Output
      Was impressed to have HIDs on my car...
      And it was very different; especially for an owner who's always had North American reflectors with normal bulbs.
      The 'cutoff' does have a slight slope on both side of the angle but that doesn't affect light output.
      But the 'cutoff' provided a definite line between the road and road signs, etc.

      - Erik

      Thanks to xposed, turdbogls, and Matthew@EET for all the help and guideance.


      Modified by bluefox280 at 7:56 PM 9-27-2006


      Modified by bluefox280 at 5:47 PM 1-24-2007

      Pattern Draft Imaging.com - "...Where Engineering Discipline and Photography Merge as One..."

    2. Senior Member bluefox280's Avatar
      Join Date
      Dec 17th, 2003
      Location
      Broomfield, CO
      Posts
      23,093
      09-20-2006 12:03 AM #2
      Total = $974.25

      - Housings: $499 shipped
      - D2S HID Kit: $401.88 shipped
      - BAX9S LEDs: $10.75 shipped
      - H21W halogens: $19.42 picked up
      - H7 high beams: $43.20 picked up

      Saved around $420 compared to retail $1395.00 (without shipping) OEM housings / set-up.


      Installed Daytime Photos:

      Installed Night Photos:
      (NOTE: Color temperature off HID kit pictured is 4300K.)

      Concrete; curb ~120 feet away

      Asphault

      Beam (photo filtered in Sepia to remove color imperfections in wall)

      - Erik


      Modified by bluefox280 at 7:54 PM 9-27-2006

      Pattern Draft Imaging.com - "...Where Engineering Discipline and Photography Merge as One..."

    3. 09-20-2006 12:05 AM #3
      as always, nice writeup.

      added to exterior lighting portion of the faq.


    4. Former Advertiser
      Join Date
      May 23rd, 2006
      Posts
      1,629
      09-20-2006 12:08 AM #4
      ohhh yes!!!

      Very professional write up!
      Thank you so much!


    5. 09-20-2006 04:26 AM #5
      I would like to see pictures. TTT for pics

    6. Member foundubbedriver's Avatar
      Join Date
      Jan 10th, 2006
      Posts
      11,490
      Vehicles
      mkiv gti (killed) mkiv .:r32 (unicorn sh!tbox).
      09-20-2006 04:49 AM #6
      awesome diy post but how comparible is it to wiring/moding the gti projector replicas; im guessing it cant be too far off? i know they use the oem housing as well..?


      Modified by foundubbedriver at 1:50 AM 9-20-2006
      @j__cermak <-- (double underscore).

    7. Member Veedubin02's Avatar
      Join Date
      Mar 25th, 2002
      Location
      Ashburn, VA
      Posts
      8,697
      Vehicles
      2002 VW GTI 1.8T, 2003 Audi A4 3.0Q, 2009 VW CC Sport, 2011 JSW TDi
      09-20-2006 06:54 AM #7
      These headlights have the Bosch Projectors in them just like the OEM HIDs, they really are the same headlights with a different design on the bottom.

    8. 09-20-2006 07:24 AM #8
      total cost?

    9. Member Veedubin02's Avatar
      Join Date
      Mar 25th, 2002
      Location
      Ashburn, VA
      Posts
      8,697
      Vehicles
      2002 VW GTI 1.8T, 2003 Audi A4 3.0Q, 2009 VW CC Sport, 2011 JSW TDi
      09-20-2006 07:39 AM #9
      They are being sold right now for like 800 I think from EET

    10. 09-20-2006 07:44 AM #10
      Quote, originally posted by Veedubin02 »
      They are being sold right now for like 800 I think from EET

      cost including the bulbs, ballasts, etc.


    11. Member Veedubin02's Avatar
      Join Date
      Mar 25th, 2002
      Location
      Ashburn, VA
      Posts
      8,697
      Vehicles
      2002 VW GTI 1.8T, 2003 Audi A4 3.0Q, 2009 VW CC Sport, 2011 JSW TDi
      09-20-2006 07:47 AM #11
      Thats the housing dna HID kit which includes HID bulbes I think you still need the high beam and blinker bulbs

    12. 09-20-2006 07:50 AM #12
      Quote, originally posted by Veedubin02 »
      Thats the housing dna HID kit which includes HID bulbes I think you still need the high beam and blinker bulbs

      the bulbs are not included with the headlights. erik was pming me asking for information on where to buy bulbs and ballasts. note the supplies list--it's listed separately from the housings.


    13. Member 85vrcoupe's Avatar
      Join Date
      Oct 7th, 2002
      Location
      Central NJ
      Posts
      5,465
      Vehicles
      2002 Glx Wagon 2003 Tdi Wagon
      09-20-2006 07:57 AM #13
      if it is only for the housing, what did it cost you after purchasing all the other parts parts??

    14. 09-20-2006 08:00 AM #14
      Quote, originally posted by 85vrcoupe »
      if it is only for the housing, what did it cost you after purchasing all the other parts parts??

      i asked for "total cost?" 5 posts above yours.


    15. Member 00boraslow's Avatar
      Join Date
      May 22nd, 2004
      Location
      Lower Burrell, PA
      Posts
      7,259
      Vehicles
      2008 VW GTI
      09-20-2006 08:26 AM #15
      cant wait to see some pics
      PSN: Glock23man

    16. Member spkn^GRMN's Avatar
      Join Date
      Jul 24th, 2002
      Location
      Charlotte, NC
      Posts
      13,424
      Vehicles
      Segway turbo
      09-20-2006 08:52 AM #16
      nice detailed write-up Erik!!!
      -Wes

      2014

    17. Member Veedubin02's Avatar
      Join Date
      Mar 25th, 2002
      Location
      Ashburn, VA
      Posts
      8,697
      Vehicles
      2002 VW GTI 1.8T, 2003 Audi A4 3.0Q, 2009 VW CC Sport, 2011 JSW TDi
      09-20-2006 08:58 AM #17
      Quote, originally posted by bigmak »

      i asked for "total cost?" 5 posts above yours.

      I will punch you in the face this weekend... haha well consider how much the rest of the bulbs usually cost. 15-20 for all four blinkers 45-50 for good highbeam bulbs and city lights LEDs another 10-15.


    18. Senior Member bluefox280's Avatar
      Join Date
      Dec 17th, 2003
      Location
      Broomfield, CO
      Posts
      23,093
      09-20-2006 09:07 AM #18
      Quote, originally posted by bigmak »
      total cost?

      Total = $974.25

      - Housings: $499 shipped
      - D2S HID Kit: $401.88 shipped
      - BAX9S LEDs: $10.75 shipped
      - H21W halogens: $19.42 picked up
      - H7 high beams: $43.20 picked up

      Saved around $420 compared to OEM housings / set-up.

      - Erik

      Pattern Draft Imaging.com - "...Where Engineering Discipline and Photography Merge as One..."

    19. Geriatric Member GS Audio's Avatar
      Join Date
      Oct 16th, 2001
      Location
      1 East 161st & River Ave, NY
      Posts
      46,932
      09-20-2006 09:43 AM #19
      GREAT write-up! Can't wait for more pics!

      GS-Photography.com
      Photography for all occasions - Formal Events, Corporate Events, School Sport Events

    20. Member dieselgti's Avatar
      Join Date
      Apr 24th, 2003
      Location
      Wethersfield, CT
      Posts
      5,698
      Vehicles
      07 Audi A3 3.2Q S-Line
      09-20-2006 01:13 PM #20
      Can't wait to see the output of these lights! Thanks for the write up!

    21. Member pheller's Avatar
      Join Date
      Jan 20th, 2003
      Location
      Boston, MA
      Posts
      898
      Vehicles
      2011 BMW 1 Series M Coupé, 2013 VW Tiguan SEL 4Mo
      09-20-2006 02:52 PM #21
      Quote, originally posted by bluefox280 »

      Total = $974.25

      - Housings: $499 shipped
      - D2S HID Kit: $401.88 shipped
      - BAX9S LEDs: $10.75 shipped
      - H21W halogens: $19.42 picked up
      - H7 high beams: $43.20 picked up

      Saved around $420 compared to OEM housings / set-up.

      - Erik

      Well, if you don't mind rolling the ebay.de dice, it is possible to get the OEM Xenon headlights for less.

      Specifically, I paid $750 for my 2002.5+ pair.

      Nevertheless, these aftermarket replicas do look quite nice. But, the beam pattern pictures I've seen so far don't look much like that from my OEM pair.

      I look forward to seeing some pics of the pattern Erik -- I do hope they are identical -- so I have a viable source for an Insurance replacement should the unfortunate happen some day.


    22. Senior Member bluefox280's Avatar
      Join Date
      Dec 17th, 2003
      Location
      Broomfield, CO
      Posts
      23,093
      09-20-2006 02:59 PM #22
      Quote, originally posted by pheller »
      I look forward to seeing some pics of the pattern Erik -- I do hope they are identical -- so I have a viable source for an Insurance replacement should the unfortunate happen some day.

      I am aiming the headlights tonight after work.
      I want to take my time and make sure I don't ruin anything.
      It may be a day or so till I can get night-shots up.

      Bump for day-time shots up.

      - Erik


      Modified by bluefox280 at 1:00 PM 9-20-2006

      Pattern Draft Imaging.com - "...Where Engineering Discipline and Photography Merge as One..."

    23. Member bLeW-DuB's Avatar
      Join Date
      Oct 27th, 2003
      Location
      ಠ_ಠ
      Posts
      11,543
      Vehicles
      ಠ_ಠ
      09-20-2006 03:03 PM #23
      erik

      great write up as always

      ಠ_ಠ

    24. Member siuson2's Avatar
      Join Date
      Feb 6th, 2003
      Location
      Hong Kong
      Posts
      8,979
      Vehicles
      03 Plat. Grey Blue Pearl VIP Jetta, 98 SLK, 95/00 Miata
      09-20-2006 03:05 PM #24
      Good stuff. Gotta love the bluefox
      Cheers,
      Ivan K Lee - NFJ - An Old Timer.
      The ViP Jetta IV 2003 GLi Vr6

    25. Geriatric Member Bora_Azul's Avatar
      Join Date
      Dec 8th, 2002
      Location
      Hartford, CT / Porto de Mos, Portugal
      Posts
      47,603
      Vehicles
      01 Sand pail, shovel not included
      09-20-2006 06:39 PM #25
      i want HID's

    26. Member gawa's Avatar
      Join Date
      Dec 29th, 2003
      Location
      Toronto, Ontario
      Posts
      1,739
      Vehicles
      2012 Passat VR6
      09-20-2006 06:47 PM #26
      Those helix replica OEM HID housings look so good. Nice job on the write up.

    27. 09-22-2006 11:05 AM #27
      Paid $750 SHIPPED for a brand new set of OEM HIDS from Ebay.de

    28. Member Medic83's Avatar
      Join Date
      Jan 28th, 2005
      Location
      LI, NY
      Posts
      2,176
      Vehicles
      08 SRT8 Cherokee, 03 GLI VRT (sold)
      09-22-2006 11:09 AM #28
      I have the same lights. They are AWESOME!!!
      eurotuner 4/2010

    29. Member spkn^GRMN's Avatar
      Join Date
      Jul 24th, 2002
      Location
      Charlotte, NC
      Posts
      13,424
      Vehicles
      Segway turbo
      09-23-2006 10:51 AM #29
      post some pics of those bad boys in action!
      -Wes

      2014

    30. Member pilotboy17's Avatar
      Join Date
      Dec 21st, 2005
      Location
      Milton, FL
      Posts
      1,031
      Vehicles
      2000 VW Jetta VR6, 2008 Nissan Xterra S
      09-24-2006 10:51 PM #30
      Wow this is so freakin awesome. I was at H20 and after seeing all the Jetta's with OEM HID's made me wish I could own them too...but I knew they cost a lot. Well I did some searching anyway and found the Helix and them came across this thread.

      Now, I can buy the pieces one by one instead of gathering $1400. This DIY looks good. Hope to see those night pics soon!


    31. 09-25-2006 01:54 AM #31
      http://easterneurotuning.com/B...hrome

      Is this what I would use if I wanted to do the HID conversion for my golf headlights?


    32. Senior Member bluefox280's Avatar
      Join Date
      Dec 17th, 2003
      Location
      Broomfield, CO
      Posts
      23,093
      09-25-2006 01:57 AM #32
      Quote, originally posted by Buddha09 »
      Is this what I would use if I wanted to do the HID conversion for my golf headlights?

      Get in contact with Matthew@EET; he'll answer all you GTI questions.

      - Erik

      Pattern Draft Imaging.com - "...Where Engineering Discipline and Photography Merge as One..."

    33. Member xLLOYDESSEUSx's Avatar
      Join Date
      Feb 12th, 2006
      Location
      Carson, CA
      Posts
      2,270
      Vehicles
      2002 Jetta (sold), 2011 A4 S-Line
      09-25-2006 02:07 AM #33
      looks great man.

    34. Geriatric Member GS Audio's Avatar
      Join Date
      Oct 16th, 2001
      Location
      1 East 161st & River Ave, NY
      Posts
      46,932
      09-25-2006 08:49 AM #34
      Any chnace we can see some shots against a garage or wall? To see cut-off sharpness.

      GS-Photography.com
      Photography for all occasions - Formal Events, Corporate Events, School Sport Events

    35. 09-25-2006 09:22 AM #35
      Very nice Erik.

    Page 1 of 8 12345 ... LastLast

    Posting Permissions

    • You may not post new threads
    • You may not post replies
    • You may not post attachments
    • You may not edit your posts
    •
