BBS list for n00bs

**zeroluxxx** · 02-03-2008 08:51 PM

Quote, originally posted by VOLKSATAN »

Anyone have exact dimensions on RS bolts?
I'm talking:
Full length
Length of non-threaded section
Length of threaded section
diameter of shaft (or thread pitch #)

Thanks,
-Dave

here ya go, made it nice enough to be added to the archive.

**S3-4ttro** · 02-03-2008 09:10 PM

Quote, originally posted by ThatGuy »

B4 BBS wheels

BBS RT's. As in good luck finding them.

Modified by ThatGuy at 5:14 PM 2-3-2008

I love this car.

**VWGregVW** · 02-03-2008 11:16 PM

you cant forget about the 2-piece bbs's on the mk4 wolfsburg eddition...im new to this site so if some1 wants to give me a heads up on how to upload pics onto a post then i can show you a pic of my mk3 with those bbs's

**nobledub** · 02-03-2008 11:37 PM

What about the RK-II?

My 95 Cabrio:

?

**ThatGuy** · 02-04-2008 12:43 AM

Quote, originally posted by VWGregVW »

you cant forget about the 2-piece bbs's on the mk4 wolfsburg eddition...im new to this site so if some1 wants to give me a heads up on how to upload pics onto a post then i can show you a pic of my mk3 with those bbs's

RXII's

**CrazyClutchVR6** · 02-04-2008 12:51 AM

RF's

**zeroluxxx** · 02-04-2008 01:21 AM

Quote, originally posted by ThatGuy »

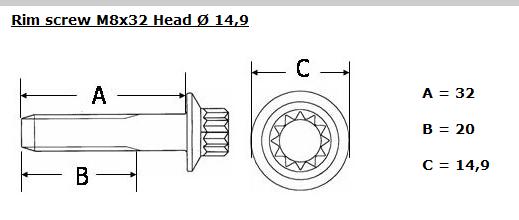

I believe the bolts are M8's though. 8x1.0 IIRC

http://www.titanium-touch.de/f....html

TBH, i'm not 100% on my metric bolt designations or allowable variances, so i can't argue much other than to offer a pic of the digital calipers (zero'd) i used, along with the BBS bolt (marked "BBS 10.9") that i removed from a 17" x 9 RS 300.

**ThatGuy** · 02-04-2008 01:50 AM

BBS refers to the company and 10.9 refers to the bolt strength, for what its worth.

I didn't get a chance to pull a set of bolts out and measure them, but according to what you posted and going off of pertsche has, i would say its likely an M8. I know the head is an 8mm 12point and the nut is a 10mm 12point. Going from the other BBS thread in the mk2 forum, they seemed quite confident its an M8x1.0

**zeroluxxx** · 02-04-2008 02:06 AM

Quote, originally posted by ThatGuy »

BBS refers to the company and 10.9 refers to the bolt strength, for what its worth.

I didn't get a chance to pull a set of bolts out and measure them, but according to what you posted and going off of pertsche has, i would say its likely an M8. I know the head is an 8mm 12point and the nut is a 10mm 12point. Going from the other BBS thread in the mk2 forum, they seemed quite confident its an M8x1.0

right, the 10.9 is the "grade" of the bolt. i just wanted to show that they are BBS bolts. and as for the size, i'm almost 100% sure they are M7's. if you notice on t-t.de's site (main page for wheel bolts), they list a bunch of M7's in varying sizes and flavors, but only offer a few in M8. not to mention, while i can expect a slight variance in the bolt tolerances and my calipers calibration, i doubt there would be a full MM in variance lost. my bet is on the M7.

**ThatGuy** · 02-04-2008 02:16 AM

Hofmanm sells them as m7 32's, so i guess m7's it is? I'll see if i can get a 7mm socket over one tomorrow

**Euro Nation** · 02-04-2008 05:18 AM

They're M7x1 (7mm thread, 1mm pitch). RS/RF bolts are 32mm long (along with almost all the other 3pc), RM bolts are 24mm long.

The head is an 8mm 12pt but that has nothing to do with the 'size' of the bolt.

**JP_Aircooled_TDi** · 02-04-2008 06:36 AM

Hi guys, I am having trouble finding out the history and name of these wheels. Lots of searching with no luck, until I found this thread. I hope that you can help.

They measure 13x6 with 4x100 stud pattern.

Any information on them is greatly appreciated.

Thanks,

JP

**2pt. slo** · 02-04-2008 07:21 AM

Quote, originally posted by ThatGuy »

PS: The first post has BBS GT2's, I believe those are just BBS GT's

double checked. there gt2's..

Quote, originally posted by VWGregVW »

you cant forget about the 2-piece bbs's on the mk4 wolfsburg eddition...

Look harder they are already on there

Quote, originally posted by nobledub »

What about the RK-II?

Good work missed those

Quote, originally posted by CrazyClutchVR6 »

RF's

Already there but nice pic

Quote, originally posted by ThatGuy »

Has anyone posted up the RT's?

Thanks and updated

**ThatGuy** · 02-04-2008 11:20 AM

Quote, originally posted by 2pt. slo »

double checked. there gt2's..

http://www.bbs.com/cgi-bin/a2v...dukte

**Dub Inspiring** · 02-04-2008 11:46 AM

great info

**Vr6_Dog** · 02-04-2008 10:23 PM

Ultra rare BBS RN

Modified by Vr6_Dog at 7:24 PM 2-4-2008

Modified by Vr6_Dog at 7:25 PM 2-4-2008

**philsburydonuts** · 02-19-2008 08:34 PM

Quote, originally posted by nobrakes!!!! »

stock GLX wheel... No clue on the name

what are these called?

**mk2eurogirl** · 02-19-2008 09:07 PM

nice thread!! best thread in awhile!

**PKstrategy** · 02-19-2008 10:46 PM

what, no BBS VZ love?

**vwkruzin** · 02-19-2008 11:08 PM

great info

**2pt. slo** · 02-20-2008 12:06 PM

Quote, originally posted by pkstrategy »

what, no BBS VZ love?

u sure?? i think there up there.

**ahmettheturk** · 02-20-2008 01:21 PM

any idea what these are!?!?!??

**PKstrategy** · 02-20-2008 01:22 PM

Quote, originally posted by 2pt. slo »

u sure?? i think there up there.

they are? idk, i went thru the 5 pages and didn't see em.

**john@fifteen52** · 02-20-2008 03:09 PM

BBS RA 214 (Gold center, Silver center is RA 114)
15x6 ET13
Optional wheels on BMW E21 320
I bought them from a guy that owned them since purchasing his 1978 320i new

The Cabrio they are on with 195/45-15.
Fitment required shaving down the outer surface of the calipers for spoke clearance.

Modified by john1552 at 3:11 PM 2-20-2008

**goofydug** · 02-23-2008 10:47 PM

this thread makes me giddy

**2pt. slo** · 02-25-2008 05:03 PM

Edited for pkstrategy, and ThatGuy.

Thanks guys for helping out

**.sanya.** · 02-25-2008 06:27 PM

some real shots of the bbs e50 for ya

and bbs rg-II

**Lexi-2ptslo** · 02-29-2008 02:35 AM

Quote, originally posted by nobrakes!!!! »

stock GLX wheel... No clue on the name

i thought they were called bbs monreals, not positive though

**Dubbed_Monk** · 02-29-2008 09:36 AM

BBS RY

Does anyone know the history and how rare bbs RYII are?

**2pt. slo** · 02-29-2008 09:51 AM

i dont even think ive seen a set in person....

, i do like them a lot actually and wouldnt mind running a set...sorry man hopefully someone will chime in with some more usefull info.

**Dubbed_Monk** · 02-29-2008 01:16 PM

I have a set that's been sitting in the house almost 2yrs.... Only difference is mine are 17" and 5lug.
Have yet to see another set anywhere. Just wanted to get a little background on them.

**dottore_hr** · 03-01-2008 12:02 PM

who model??

**roly_vr6** · 03-01-2008 12:19 PM

anyone have these BBS on a MK3???

A friend had them on his GLX and they look soo f*^% rare.... MADRAS from PASSAT 4Motion I think!!!

Im looking to buy the same to my GLX...

**VR_six** · 03-01-2008 01:00 PM

where can i buy the replicas... those look decent.

**skiba** · 03-02-2008 06:17 PM

well i followed all the re-assemble instructions to the t. and had problems with 2 of them. 2 of them the tires are mounted and holding air just fine. The other 2 when we got to about 40 pounds of pressure on the machine it starting like through the crack where the face meets the lip, guess i need to find a stronger silicon? I know there were no holes i did 3 layers in 24 hour intervals. And double checked all the torque specs
