    Thread: Project VR6 What!

    1. Member corrado-correr's Avatar
      Join Date
      Jul 8th, 2004
      Location
      Royal Oak, MI
      Posts
      4,875
      05-28-2008 08:32 PM #1
      In August 2007 my car, a '92 VR6 blew the head gasket a few days after turning the boost up a bit. It was really just a matter of time and I fault the stock gasket with 168k miles on it more than the added boost.

      I decided to tear it all apart over the winter and rebuild it with a bunch of "while you're in there" go fast and maintenance parts. It's gotten a little out of hand since that day in August. A lot of work has been done over the winter, so I'll do my best to back log most of it and then post updates as I get this thing back on the road by June 7th, 2008.

      Raven
      92 Corrado VR6t | 93 Corrado SLC | 90 Miata (because racecar)
      DCC - Detroit Corrado Club

    2. Member corrado-correr's Avatar
      Join Date
      Jul 8th, 2004
      Location
      Royal Oak, MI
      Posts
      4,875
      05-28-2008 08:40 PM #2
      Some pics form the initial tear down:


      Raven
      92 Corrado VR6t | 93 Corrado SLC | 90 Miata (because racecar)
      DCC - Detroit Corrado Club

    3. Member corrado-correr's Avatar
      Join Date
      Jul 8th, 2004
      Location
      Royal Oak, MI
      Posts
      4,875
      05-28-2008 08:55 PM #3
      Admittedly 2 wheel smoky burn outs are less cool than 4 wheel smokey burn outs - but they are decidedly better than one wheel smoky burn outs and clutch smoke.

      Tearing apart the transmission for inspection of gears/syncro's, installation of Peloquin LSD, and tdi 5th.

      transmission fluid really is nasty stuff.

      Raven
      92 Corrado VR6t | 93 Corrado SLC | 90 Miata (because racecar)
      DCC - Detroit Corrado Club

    4. Member corrado-correr's Avatar
      Join Date
      Jul 8th, 2004
      Location
      Royal Oak, MI
      Posts
      4,875
      05-28-2008 09:11 PM #4
      In order to insure the diff was properly shimmed I put everything back to together for a test fit.

      Shift forks installed, I had a hell of a time with keeping these suckers in their place until I realized you're supposed to (per the Bently) have the tranny tilted at a 45degree. Presto!

      Almost no parts left!

      Authentic VW "Sealing Paste"

      Almost fully assembled.

      The size difference between the TDI 0.75 and the stock 0.83 is surprising noticeable.


      At this point the races checked out and were with in spec to the original factory installed shims. I hear this is common when you have a matching case, but its always good to check. I ran into a probable however in that the gears were binding and the trans wouldnt spin freely.

      After taking this thing apart 4-5 times I realized the pinion ring was installed on the diff upside down. A quick fix, put it back together again (pretty much an expert at this point) and every thing was right as rain.

      A few days of scrubing, some time with a pressure washer, 6 botles of degreaser and I had the case looking like this:

      Raven
      92 Corrado VR6t | 93 Corrado SLC | 90 Miata (because racecar)
      DCC - Detroit Corrado Club

    5. Member corrado-correr's Avatar
      Join Date
      Jul 8th, 2004
      Location
      Royal Oak, MI
      Posts
      4,875
      05-28-2008 09:24 PM #5
      Some time around this point, after getting the Trans figured out I ran out of momentum and got distracted with a few other projects over the winter. Over the memorial day holiday I got it in my head that I might actually get this thing done in time for the first big show here in MI.

      Took apart the head to check for flatness (for lack of a better word), just in case it had warped from the blown head gasket. And did manage to take a few more pictures:

      I checked it with a straight edge and a feeler gauge, and couldnt find a single high or low spot. I wasnt too surprised here because the car never had a chance to over heat.

      Raven
      92 Corrado VR6t | 93 Corrado SLC | 90 Miata (because racecar)
      DCC - Detroit Corrado Club

    6. Member corrado-correr's Avatar
      Join Date
      Jul 8th, 2004
      Location
      Royal Oak, MI
      Posts
      4,875
      05-28-2008 09:36 PM #6

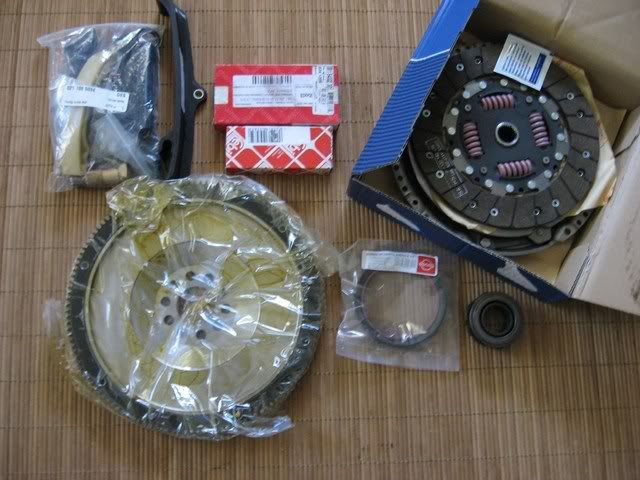

      New Parts, Autotech 13lb flywheel, new clutch and timing chain kit:

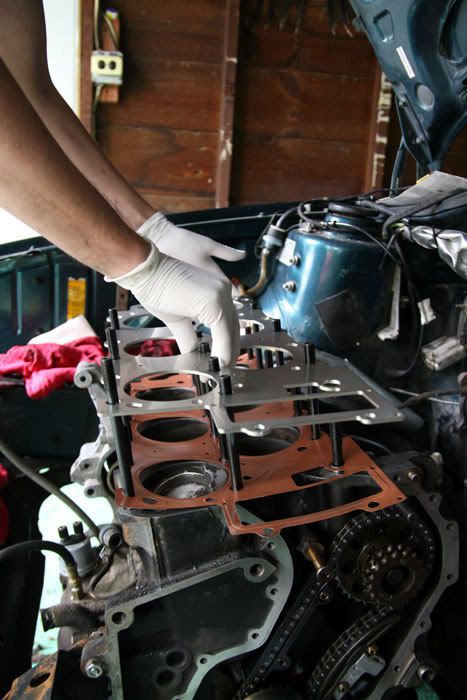

      The new head gasket/spacer set up will drop compression from 10:1 to 8.5:1. The gasket is comprised of a two piece mk4 metal gasket that is split and then sandwiches the stainless steel spacer. You want to spray the two gaskets (not the spacer with the permatex high temp copper gasket stuff.

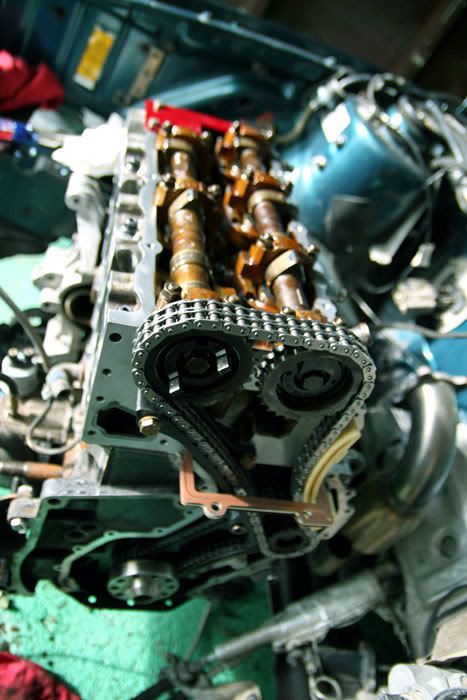

      New timing chains installed. The head is bolted down using ARP fasteners. Torquing order is same as stock (basically just diagonally from the center out) but the stronger studs can with stand a ton more torque. We stepped it up from 23-49-65-80 ft lbs.


      While doing putting the chain covers back on I ran into an issue when installing the upper chain tension. My motor is out of a 96 Jetta, so I have the plastic valve cover and the dual timing chain. This being the first time Ive done the chains on the car, I ordered the new style chain kit-recommended for better durability and ideal for the dual chain setup (also cheaper). The only thing that wasnt back wards compatible with the new timing chain kit was the upper timing chain tensioner bolt. Pictured here is the full chain kit, the tensioner is the large brass bolt in the middle.


      The new style upper chain tensioner doesn't thread all the way into the early style upper cover. The problem lies in that the new style cover is threaded all the way through, while the old style (the one i have) isnt threaded all the way. Apparently 92 distributors are some of the only cars to get the "old style" covers - which is what I have to make the new '96 motor work with me obd1 distributor setup.

      Not being able to find a 22m x 1.5 Tap locally on the Saturday of memorial day weekend, I oped to port out the back end to get the new style tensioner bolt to thread in all the way. Vortex recommends forcing the new bolt in a 1/4 turn at a time using "lots of oil". I wasnt comfortable with this so I went with the Dremel and never looked back, I only removed (max) a few cubic mills of Al from the back side of the case.

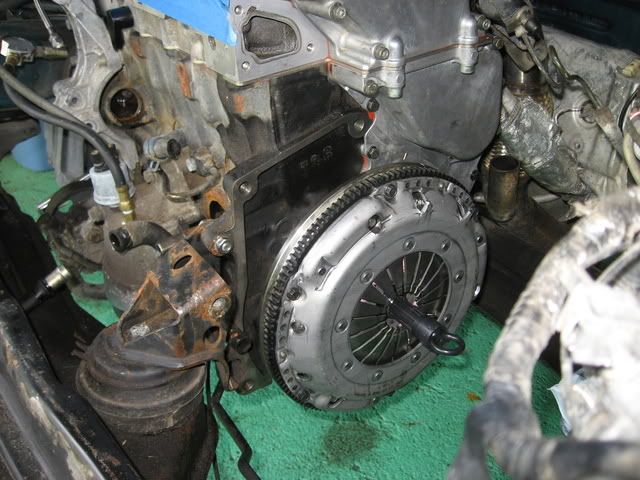

      Next up, the valve cover, lightweight flywheel and the clutch assembly.




      Modified by corrado-correr at 5:42 PM 5-28-2008

      Raven
      92 Corrado VR6t | 93 Corrado SLC | 90 Miata (because racecar)
      DCC - Detroit Corrado Club

    7. Member corrado-correr's Avatar
      Join Date
      Jul 8th, 2004
      Location
      Royal Oak, MI
      Posts
      4,875
      05-28-2008 09:40 PM #7
      Monday I was determined to get the transmission in. Here's the transmission lookin' funky fresh on the floor waiting to go back in his home.


      Ryan and I struggled with it till it almost landed on my head, then we called around for an engine hoist. Ryan is crazy:


      Engine and transmission are in and bolted securely to the motor mounts. The shiny trans looks so out of place in the dirty ass bay.


      Oh, and we found a turtle that day... sweet!





      Modified by corrado-correr at 5:41 PM 5-28-2008

      Raven
      92 Corrado VR6t | 93 Corrado SLC | 90 Miata (because racecar)
      DCC - Detroit Corrado Club

    8. Member corrado-correr's Avatar
      Join Date
      Jul 8th, 2004
      Location
      Royal Oak, MI
      Posts
      4,875
      05-28-2008 09:44 PM #8
      Brand new thermostat housing and all new temp sensors. New one on the left, old one on the right.


      I took the front cross member off sanded it and hit it with some rustolium. Also painted the front motor mount. Installed the thermo housing and new billet crack pipe.




      The obligatory "Fuke you old crack pipe!"

      Lower intake manifold, new gasket, fuel rail, 4.0 bar fuel pressure regulator, and 30# injectors.

      installed

      Thats it for tonight suckas.

      Raven
      92 Corrado VR6t | 93 Corrado SLC | 90 Miata (because racecar)
      DCC - Detroit Corrado Club

    9. 05-28-2008 10:06 PM #9
      Love it, love it, love it.

      Amazing how clean that tranny came out... looks like it was painted.

      One problem: Where's the beer?

      Keep us updated...


    10. Member corrado-correr's Avatar
      Join Date
      Jul 8th, 2004
      Location
      Royal Oak, MI
      Posts
      4,875
      05-28-2008 10:15 PM #10
      Oh yeah... I almost forgot about that step... some time in November (?) Matt and I had a few too many and drunk dialed most of California.



      Raven
      92 Corrado VR6t | 93 Corrado SLC | 90 Miata (because racecar)
      DCC - Detroit Corrado Club

    11. 05-28-2008 10:24 PM #11
      dude, the car is coming out SICK.

    12. Member UrSeRiOuS's Avatar
      Join Date
      Mar 19th, 2005
      Location
      Wilkes Barre, PA
      Posts
      3,698
      Vehicles
      1992 Corrado SLC VRT, 1999 Jetta (MKIII) turbo 2.slo
      05-28-2008 10:45 PM #12
      5th is gonna pull for a long time.

    13. 05-28-2008 10:59 PM #13
      good job sparky look'n great!

    14. 05-29-2008 12:29 AM #14
      Any time you feel like headin a couple hours south.... Why don't you just go ahead and take care of my tranny...

      There is no way that tranny isn't P-shopped.... how the hell did you get it so damned clean?


    15. Member corrado-correr's Avatar
      Join Date
      Jul 8th, 2004
      Location
      Royal Oak, MI
      Posts
      4,875
      05-29-2008 01:39 AM #15
      Quote, originally posted by gunnr0991 »
      There is no way that tranny isn't P-shopped.... how the hell did you get it so damned clean?

      here's an intermediate step (I was orginally going to polish the whole thing untill I realized it was a ton more work that I wanted to do ):


      Raven
      92 Corrado VR6t | 93 Corrado SLC | 90 Miata (because racecar)
      DCC - Detroit Corrado Club

    16. 05-29-2008 01:42 AM #16
      this is one small beer...............



    17. Member corrado-correr's Avatar
      Join Date
      Jul 8th, 2004
      Location
      Royal Oak, MI
      Posts
      4,875
      05-29-2008 01:44 AM #17
      Quote, originally posted by MikeMcNair. »
      this is one small beer...............

      Your first post... i'm honored. What happened?

      Raven
      92 Corrado VR6t | 93 Corrado SLC | 90 Miata (because racecar)
      DCC - Detroit Corrado Club

    18. 05-29-2008 01:46 AM #18
      wtf r u talking about?

      i have 15,500+ under my belt son................


    19. Member corrado-correr's Avatar
      Join Date
      Jul 8th, 2004
      Location
      Royal Oak, MI
      Posts
      4,875
      05-29-2008 12:39 PM #19
      In an attempt to blow my load entirely on page 1... The intake manifold:



      Polished ported and the powder coated mirror black. Look familiar Todd?

      Raven
      92 Corrado VR6t | 93 Corrado SLC | 90 Miata (because racecar)
      DCC - Detroit Corrado Club

    20. 05-29-2008 05:05 PM #20
      that intake manifold is SICK!!!!!!!!! OMG makes me want to paint my Schimmel. Who did that for you just a local shop?

    21. Member
      Join Date
      Aug 17th, 2007
      Location
      Doylestown, PA
      Posts
      12,377
      Vehicles
      Everything you could imagine basically
      05-29-2008 05:25 PM #21
      Quote, originally posted by Gilboyto »
      that intake manifold is SICK!!!!!!!!! OMG makes me want to paint my Schimmel. Who did that for you just a local shop?

      looks polished and painted. looks tight tho.

      Turbos, Timepieces and Firearms.

    22. Member wannabdubbin's Avatar
      Join Date
      Nov 22nd, 2002
      Location
      Clinton Twp., MI
      Posts
      831
      Vehicles
      03 Jetta WGN
      05-29-2008 05:33 PM #22
      Looks sick dood.
      let me know about that GTG... gotta see this thing in person...
      long live the murder mitten!!!

    23. Member corrado-correr's Avatar
      Join Date
      Jul 8th, 2004
      Location
      Royal Oak, MI
      Posts
      4,875
      05-30-2008 11:15 PM #23
      Today when I woke in the morning, and said to my self... "Self, you should take the day off to work on the Corrado" and so I did. As luck might have it I received a package in the mail today so it was pretty easy to decide where to start working.

      An aluminum (with serviceable ball bearing) belt tensioner pully, and a metal (to replace the melted plastic piece) shift linkage, all from Gruvenparts.com.


      Here you can see the old brittle melted linkage along side the new piece. The Gruven piece also reduces the side-to-side.


      Then all hell broke loose and there was a lot of cursing and swearing. "****", I said. the new linkage housing doober I bought (from the dealership, using my VIN number) was the wrong part. Notice how the yellow cable doesnt line up at all!

      I decided to put the old one back in even though its ****ed up on the top there. but at least this way the cable line up. I also tried to mess with the adjustment, but failed with out a helper to shift inside while I adjusted in the bay.

      Stainless exhaust studs make baby jesus cry with joy and laughter:

      Exhaust manifold all bolted up:


      And right before it started raining, I got the turbo and waste gate in!!!!! WOOTshhhhhhTTT!




      Modified by corrado-correr at 7:18 PM 5-30-2008

      Raven
      92 Corrado VR6t | 93 Corrado SLC | 90 Miata (because racecar)
      DCC - Detroit Corrado Club

    24. Member corrado-correr's Avatar
      Join Date
      Jul 8th, 2004
      Location
      Royal Oak, MI
      Posts
      4,875
      05-31-2008 01:37 AM #24
      Has no one here put a Kinetics manifold on while the engine was in before??? not to sound like too much of a needy bitch, but I could use some words of encouragement here.

      Here's to a nice refreshing beer or 6 after a good days work.

      Raven
      92 Corrado VR6t | 93 Corrado SLC | 90 Miata (because racecar)
      DCC - Detroit Corrado Club

    25. Member Lanceevox's Avatar
      Join Date
      Mar 20th, 2006
      Location
      Marin County + Santa Barbara CA.
      Posts
      2,862
      Vehicles
      97 a4, 2010 HM EVO SP
      05-31-2008 01:42 AM #25
      soo... how is the gruven shift linkage? I was thinking about ordering one up.

    26. Member corrado-correr's Avatar
      Join Date
      Jul 8th, 2004
      Location
      Royal Oak, MI
      Posts
      4,875
      05-31-2008 01:49 AM #26
      Quote, originally posted by Lanceevox »
      soo... how is the gruven shift linkage? I was thinking about ordering one up.

      I haven't really finished adjusting it yet, nor have I driven it yet, but man does it reduce side-to-side. on top of the diesel geek short shift kit I have I gotta tell you it might actually take some getting used to - its that tight now.

      From an installation stand point it fits great, and it replaces the crappy plastic part that you can see from the pic was practicably melted into swiss cheese.

      Raven
      92 Corrado VR6t | 93 Corrado SLC | 90 Miata (because racecar)
      DCC - Detroit Corrado Club

    27. Member d-bot's Avatar
      Join Date
      Sep 6th, 2004
      Location
      Seattle
      Posts
      11,271
      Vehicles
      S1 Storm 20vSC-AWD, 93 Corrado VR6
      05-31-2008 01:09 PM #27
      Nice work. Glad I could help you drink beer (and put your car together). See you tonight for the party!

    28. Moderator SLC4EVER's Avatar
      Join Date
      Oct 7th, 1999
      Location
      San Diego
      Posts
      14,488
      Vehicles
      '93SLC '94SLC
      05-31-2008 05:21 PM #28
      Looking good dude, nice job!
      Dak
      I drive waaay too fast to worry about my cholesterol.

    29. 06-02-2008 07:59 PM #29
      sweet... Hopefully it doesn't rain next saturday.

    30. Member d-bot's Avatar
      Join Date
      Sep 6th, 2004
      Location
      Seattle
      Posts
      11,271
      Vehicles
      S1 Storm 20vSC-AWD, 93 Corrado VR6
      06-04-2008 01:59 AM #30
      More work, less slacking! Mine is about done. Let's see some progress!

    31. Member d-bot's Avatar
      Join Date
      Sep 6th, 2004
      Location
      Seattle
      Posts
      11,271
      Vehicles
      S1 Storm 20vSC-AWD, 93 Corrado VR6
      06-08-2008 08:53 PM #31
      someone got a ride. boost is good. post some pics Raven and congrats on getting it back together so quick!

    32. Member corrado-correr's Avatar
      Join Date
      Jul 8th, 2004
      Location
      Royal Oak, MI
      Posts
      4,875
      06-09-2008 01:05 AM #32
      This is probably the first show I've ever went to with out bringing my camera. I only slept 2 hours the night before to get everything driveable, and in all the hustle to make it there forgot the camera.

      from the vortex galleries:


      Raven
      92 Corrado VR6t | 93 Corrado SLC | 90 Miata (because racecar)
      DCC - Detroit Corrado Club

    33. 06-09-2008 01:31 AM #33
      Bad ass, man. Congrats on completing it. Need more photos of the motor!

    34. Moderator SLC4EVER's Avatar
      Join Date
      Oct 7th, 1999
      Location
      San Diego
      Posts
      14,488
      Vehicles
      '93SLC '94SLC
      06-09-2008 02:10 AM #34
      Sweet! Road trip to SoCal.
      Dak
      I drive waaay too fast to worry about my cholesterol.

    35. Member skaterazn's Avatar
      Join Date
      Jan 9th, 2007
      Location
      Wa
      Posts
      3,343
      Vehicles
      94 GSX bone stock,92 Slc OBD2 vrt gear eater, A3
      06-09-2008 02:39 AM #35
      Quote, originally posted by tachycardia »
      Bad ass, man. Congrats on completing it. Need more photos of the motor!

      X2

      Quote Originally Posted by ein View Post
      The only idea VW ever had that was dumber than Aktiv was the G-Lader.

    Page 1 of 16 1234511 ... LastLast

    Posting Permissions

    • You may not post new threads
    • You may not post replies
    • You may not post attachments
    • You may not edit your posts
    •
