    Thread: Rob's Valve Lapping Tutorial...

    1. Member GoKraut's Avatar
      Join Date
      Mar 28th, 2005
      Location
      North Bend, WA
      Posts
      3,230
      07-17-2008 10:18 PM #1
      So it's been awhile since I've actually contributed something real worthwhile on this forum. I figured I was about due...

      This will apply more to 16V owners only because we break timing belts all the time and well...our valves don't usually recover.

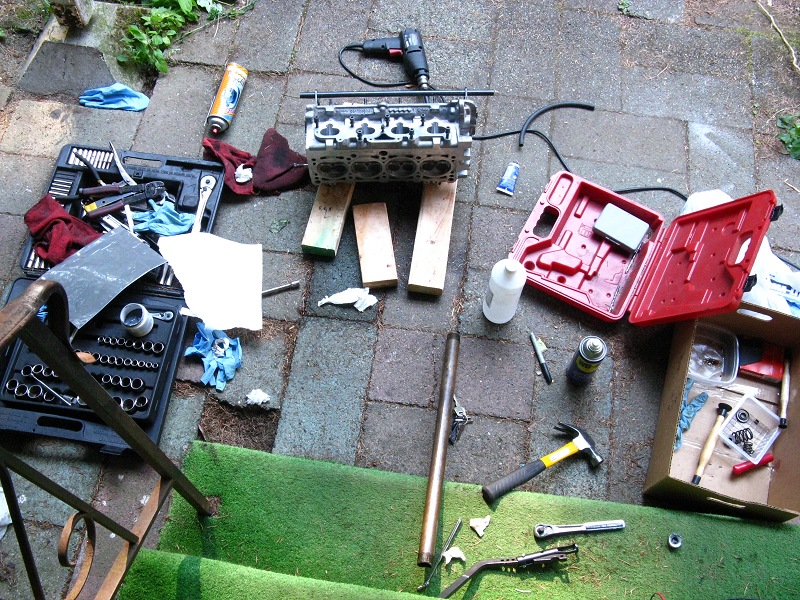

      (this whole tutorial assumes you already have the head off the car)

      First assess your head's current condition...

      1.)Take the cam(s) off the head to ensure all the valves are as closed as they can possibly be. Making CAREFUL note of which cam bearing goes to which part of the cam. These are generally numbered...just BE AWARE when you put them back in to do it in the same sequential order. 1,2,3, etc

      2.) Tip the head back onto the exhaust studs so the intake runners face skyward.

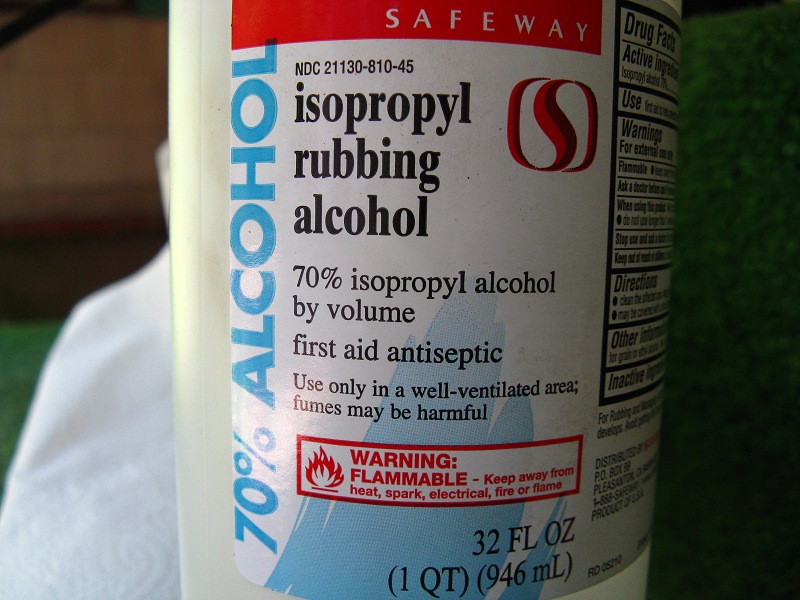

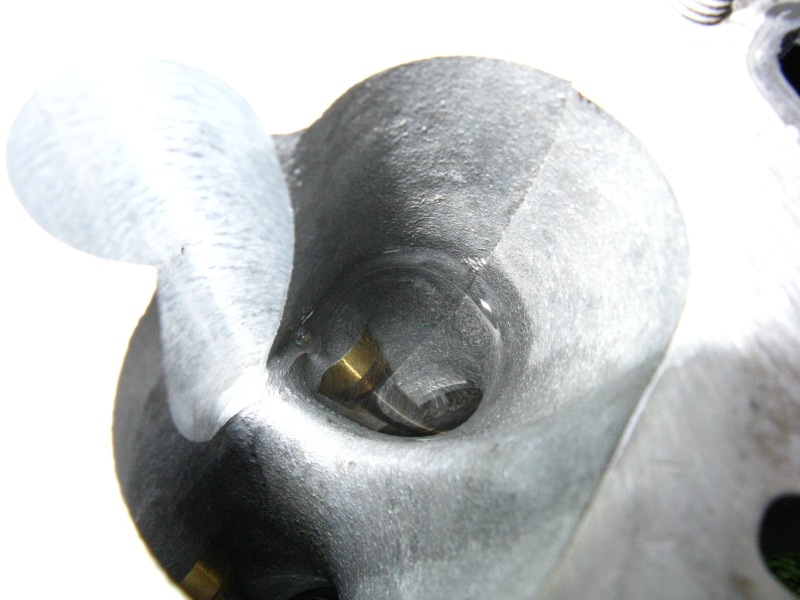

      3.) Pour rubbing alcohol down the runners of the head. We'll start with intake first. There are a couple reasons for choosing rubbing alcohol.
      *It evaporates
      *breaks down oil and grease (things we don't need during this process)
      *doesn't have the same molecular adhesion (and cohesion) properties water does; think about water riding up the side of a drinking glass; making water a very difficult chemical solution to test for air leaks since water molecules do not want to break their bond easily.
      *Is not inclined to cause rust or flash rust.








      4.) Leave the alcohol in the head for at least 10min during the evaluation process to ensure the alcohol has ample time to track down around the seat of the valve. So have a beer and watch the valve seats VERY carefully for ANY seepage. If in 10min it's still BONE dry, you're good. If not, if you get even the slightest seepage...you will have a vacuum leak.
      MEANING: Poor(er) fuel economy, burnt valves, carbon buildup, poor performance...
      NOTE: I recommend you also FEEL around the valve too. Alcohol is hard to see with the naked eye and I personally had a difficult time spotting it.

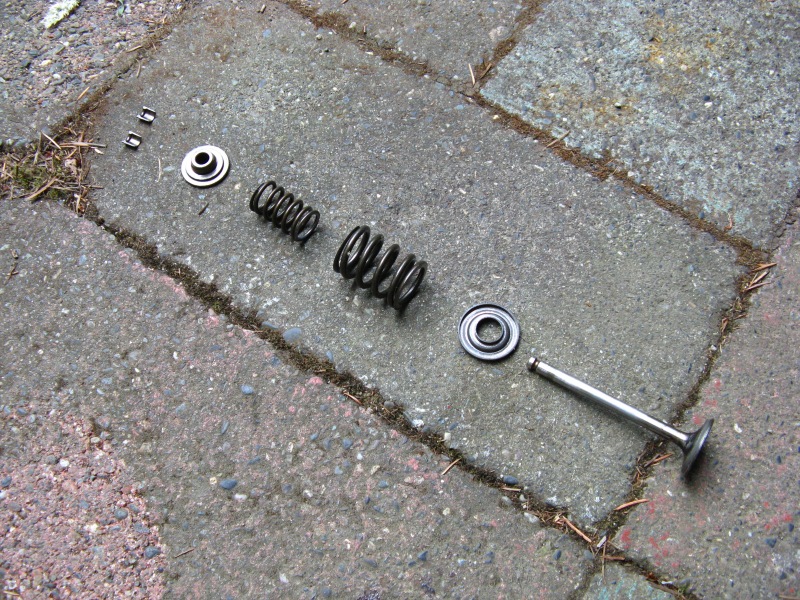

      5.) IT LEAKS! Well...what in the hell do we do now? Be sure you have a good valve spring compressor. Each (16v) valve assembly consists of: a lower spring retainer, an inner and outer spring, a valve, an upper spring seat, and two valve keepers (a split cotter). When you depress the spring the tension is released from the split cotter and you can pull the pieces out with a magnetic tool. Once the cotter has been removed you can pull the spring seat, two springs, and lower retainer. Turn the head and you can pull the valve out from the bottom. This assembly is identical on the exhaust side.
      NOTE: MARK EACH AND EVERY valve with a number or some sort of designation so you know what order they go back in. This is very important because you are working with such tight tolerances one valve may not seat the same way as it does in another part of the head (causing a leak).

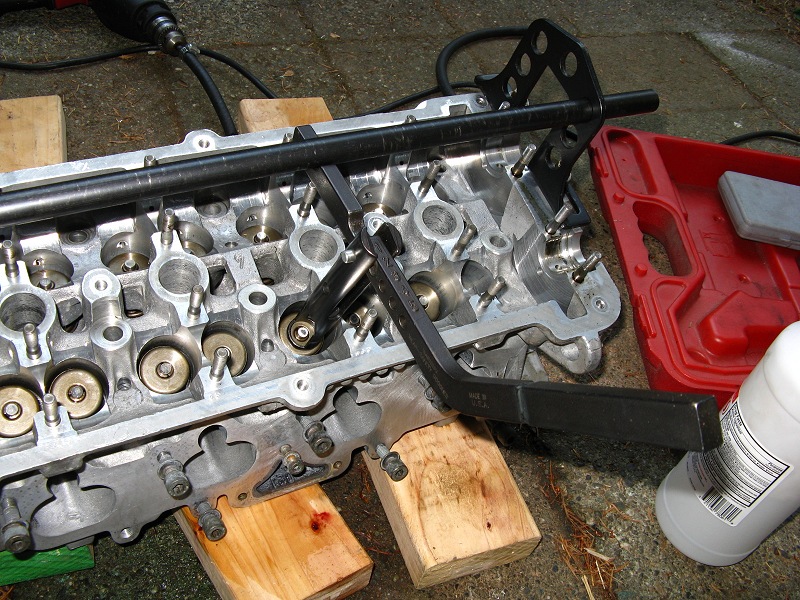

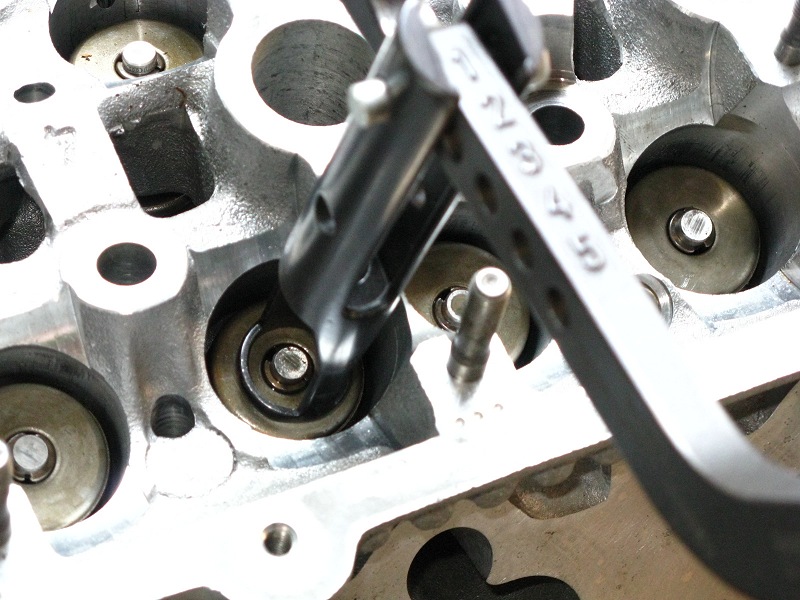

      This is what the tooling assembly looks like:

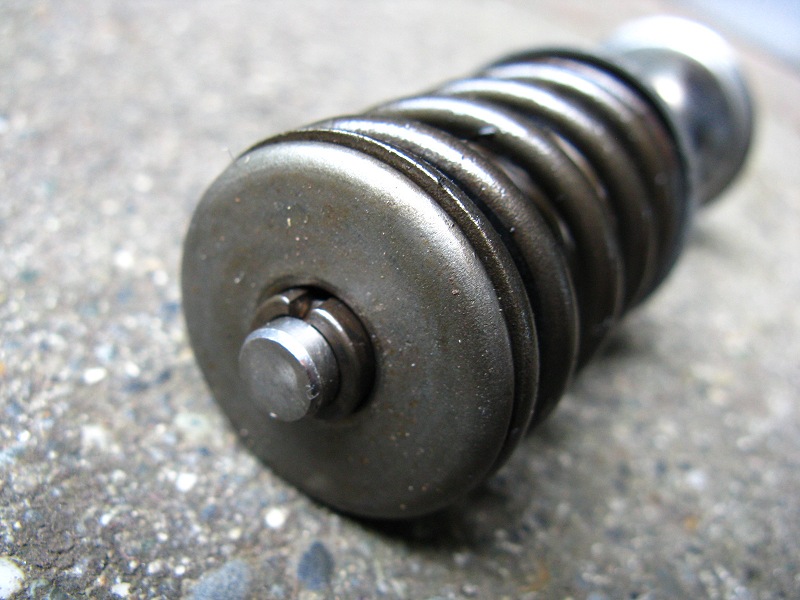

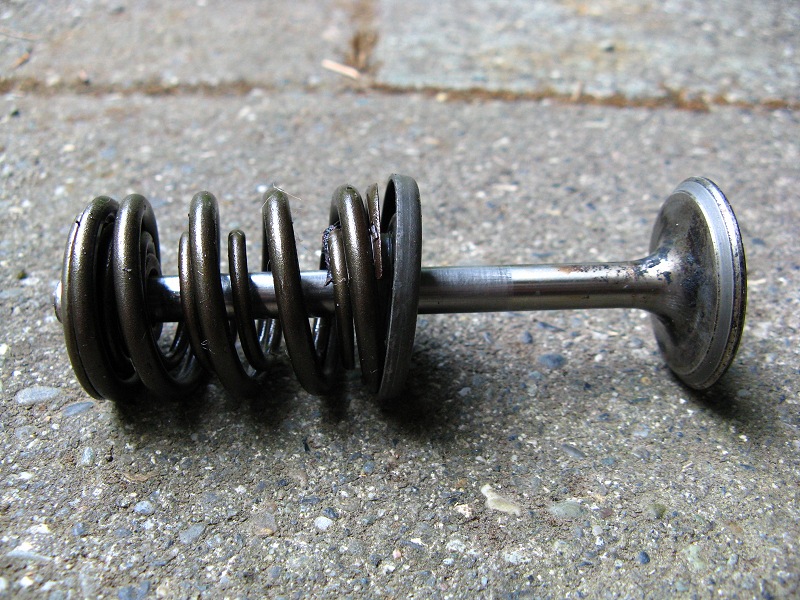

      This is what the valve assembly looks like:










      6.) Clean up any foreign debris inside the chamber. Ideally you would use a lacquer thinner or perhaps some sea foam and a combo pressure washing. The idea is you want the carbon build-up and any contaminants out of the seating area(s).

      7.) Now that the seats have been cleaned it is time to start lapping

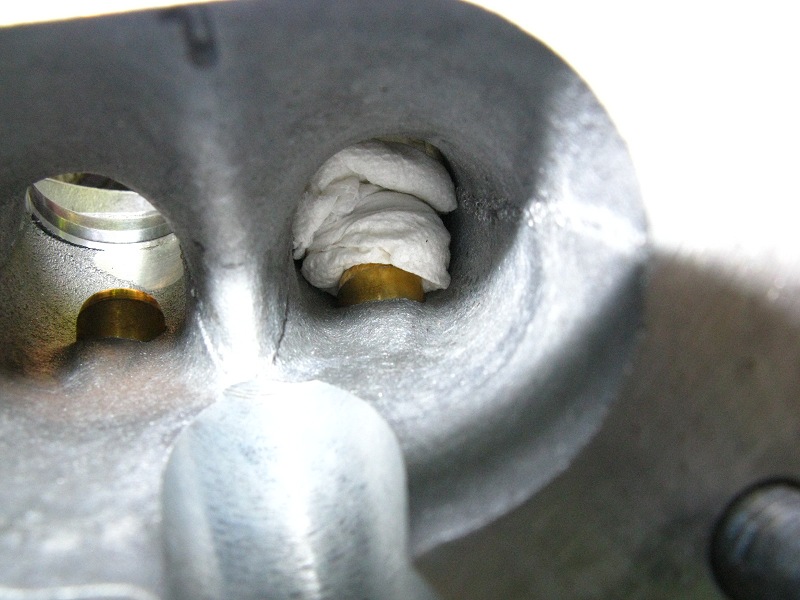

      Begin by first wrapping a piece of paper towel around the valve stem. We are doing this because lapping compound can get everywhere and a place in particular it likes to go is into the valve guides...well...this will destroy brass valve guides by loosening their tolerances, in turn causing too much play and poor seating. SO DON'T DO IT UNLESS YOU PLAN ON REPLACING THEM TOO!
      Once you have that done, hold the paper towel in place on the valve stem while you guide it into the valve guide on the head. Do not lubricate anything during this process.

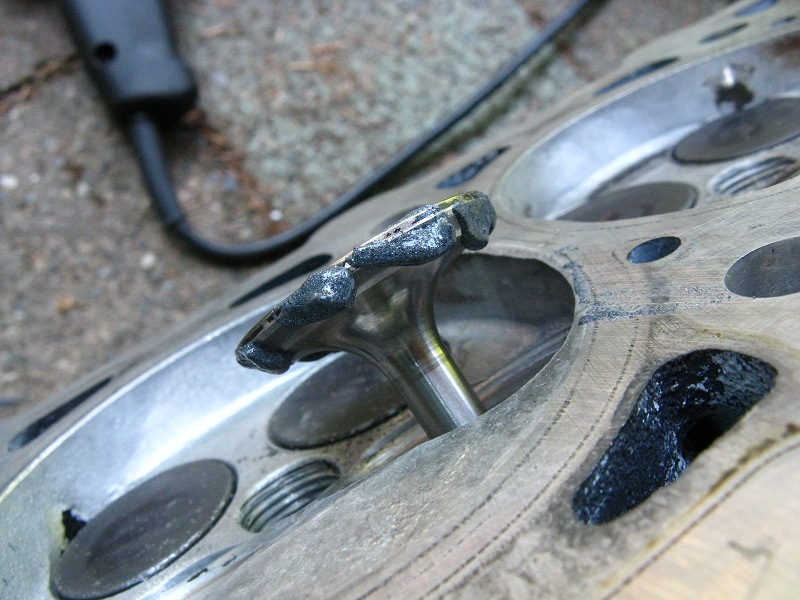

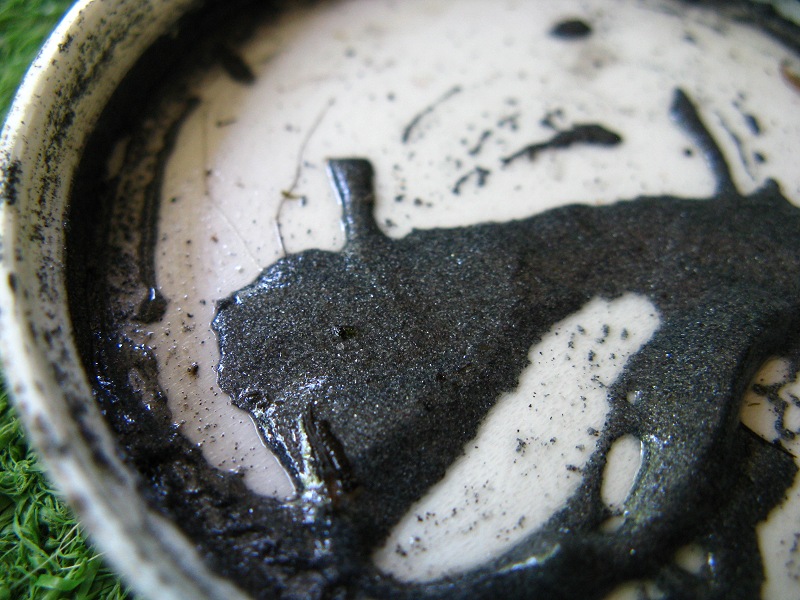

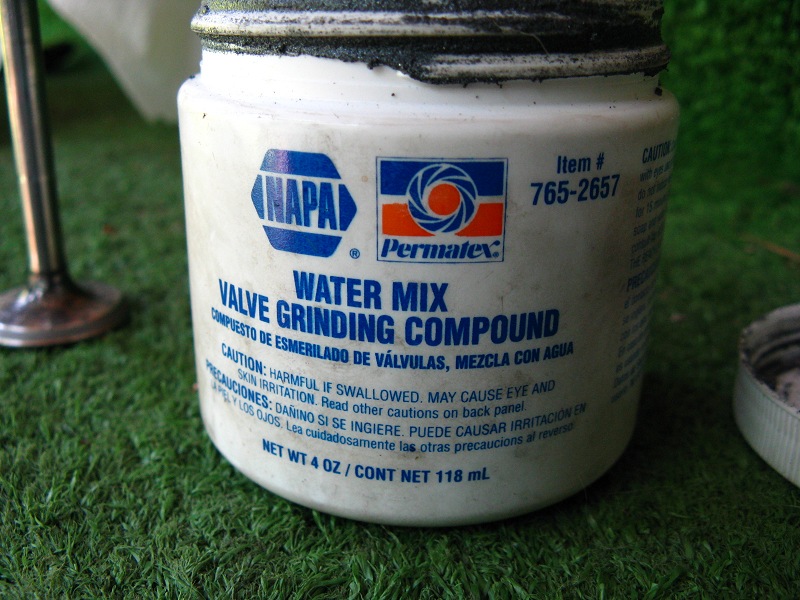

      Now, put a little dab of lapping compound on the valve itself. You would want to put it in a place where the valve would naturally go to seat/seal.

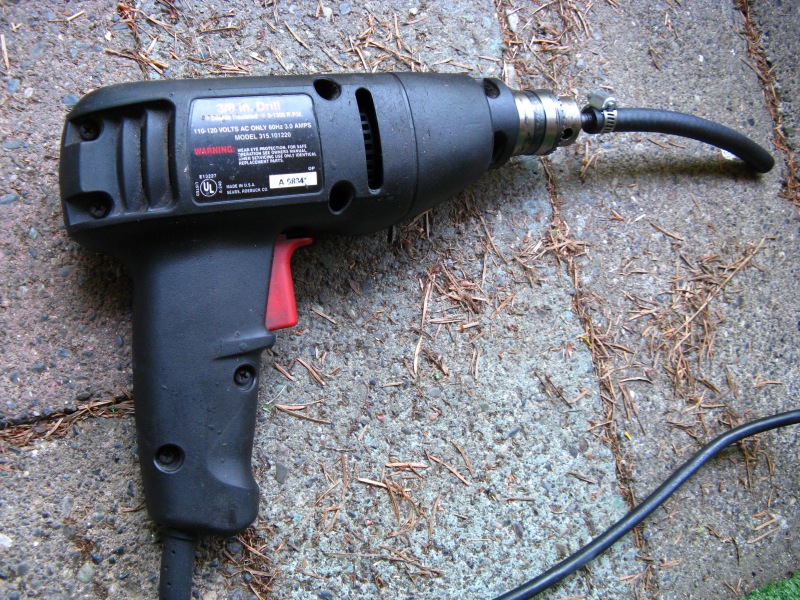

      Push the valve up into the head until you have a little lapping compound oozing around the seat. Turn the head over so you can see the valve stem sticking up. Slide a piece of rubber hosing on the valve stem; 16V heads have 7mm diameter stems, 8V heads have 8mm diameter stems. This diameter will dictate what diameter rubber hosing you need. I chose something that was approximately 1mm smaller in diameter to ensure a snug fit over the stem. To expedite the lapping process I attached an 8x1.25mm stud to my handy-dandy 3/8" chuck Sears electric hand drill and "screwed" the stud down on the hose. (see pic). With everything set up and ready to go, begin "drilling" but instead of pushing the drill into the work, you will want to attempt to pull the valve up through the head. NOTE: This process coupled with the angle of the valve/valve seat will push the compound out of the areas you want finished so occasionally let off the tension, give the valve a chance to ride down the guide so the compound has a chance to creep back into the seat.

      This process grinds the two mating surfaces down so they are copasetic with one another.












      8.) Pull the valve out. Pull the paper towel out. With another piece of CLEAN, DRY paper towel, wipe the valve and valve seat completely free of rubbing compound. Then, with ANOTHER piece of clean alcohol dampened paper towel wipe the seat and valve down once again. The reason for NOT using the damp paper towel for the preliminary cleaning process is because once this compound gets watered down with other solution it runs EVERYWHERE.

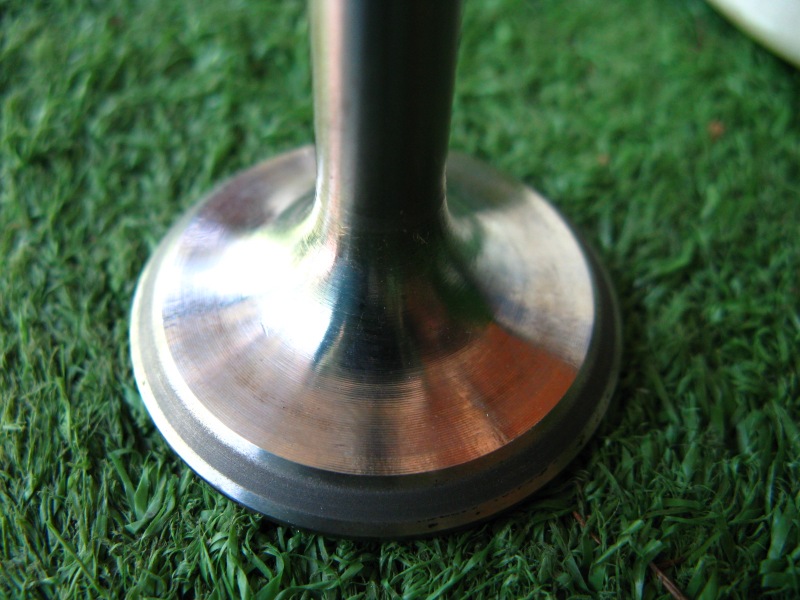

      9.) Check your work. Ensure the valve has the same diameter band across the ENTIRE span/circumference. If it does not, it's it's uneven, you have either a bent valve, a bad valve guide (loose tolerance), or a bad seat.

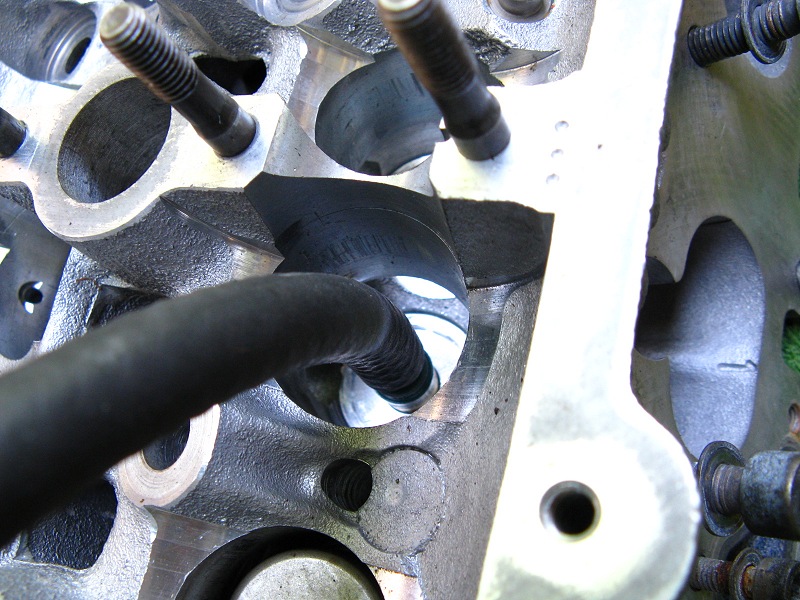

      10.) Put the valve back in the head. Put a piece of rubber hose over the valve stem (another piece, one not attached to the drill) and pull. While you are pulling it (pulling the valve into the head) keep a fair amount of tension. Fill the runner with alcohol like you did in step 3-4 and watch for any leaks. If no leaks are found pull the valve out and rub some assembly grease around the valve stem.
      NOTE: If you do not put some sort of lubricant on the valve stem you run the risk of it "sticking" until lubrication gets in there (motor oil). If it sticks the cotter can pop out and the valve can drop (literally) causing all sorts of damage

      ...you are done with that valve and can move on to the next!
      If you DO have leaks: lather, rinse, repeat.

      and...
      as always...





      -Rob







      Modified by GoKraut at 11:16 AM 7-18-2008

      www.GoKraut.com

      "I didn't break it, I just adjusted it out of spec!"

    2. Member northsurveyor's Avatar
      Join Date
      May 22nd, 2006
      Location
      In the desert
      Posts
      1,845
      Vehicles
      '87 Zender Widebody Scirocco
      07-17-2008 10:31 PM #2
      Nice....well written w/great pic's....gettin' ready to do this soon one day so it'll be a great reference as it's been awhile....

      Thx Rob...


    3. 07-18-2008 12:14 AM #3
      nice writeup! you need to have the Timob imoralize that one on the VWC technotes
      my oil stain is bigger than yours
      the Race Dasher Project is now on Facebook, 180hp and 188tq... while miss-firing BADLY
      the Dasher Owners Group is now on Facebook

    4. Member sciroccojim's Avatar
      Join Date
      Dec 21st, 2004
      Location
      NJ
      Posts
      5,594
      Vehicles
      1980 VW Scirocco S Callaway Turbo
      07-18-2008 12:25 AM #4
      This is great. I have to lap mine and replace the stem seals (on my 8V) and I told timbo I'd take pics and such for his technote. Maybe I'll take pics anyway and we'll have them for both motors.

    5. Member TheTimob's Avatar
      Join Date
      Sep 13th, 2003
      Location
      Glenside, PA
      Posts
      18,084
      Vehicles
      84 Scirocco, 13 Prius C, 94 beige Camry!
      07-18-2008 09:02 AM #5
      Muhahaahah!! Awesome, Rob!! Mind if I technote it?

    6. Member GoKraut's Avatar
      Join Date
      Mar 28th, 2005
      Location
      North Bend, WA
      Posts
      3,230
      07-18-2008 10:17 AM #6
      Quote, originally posted by timbo2132 »
      Muhahaahah!! Awesome, Rob!! Mind if I technote it?

      'course not, timob

      www.GoKraut.com

      "I didn't break it, I just adjusted it out of spec!"

    7. 09-29-2008 10:26 AM #7
      Excellent write up, thanks a bunch! I have a couple questions I need answered:

      1.) Aside from taking my valves to a machine shop to be blasted, how can I clean them up at home? I.E. what solvent and what type of brush...I'm thinking a brass wire brush??

      2.) Would it hurt to just lap each valve to its seat even if I don't detect a leak? Just to be thorough, I have all winter to rebuild my head.

      3.) If I have dis-assembled a head and I did not keep track of what valve went where, would I then NEED to lap each valve to the seat where I will be installing it?

      4.) Is it ok to lap a valve with the original valve guide installed, then replace the valve guides later? Or will this slightly affect how the valve seats and then would I need to "re-lap"?


    8. 10-20-2011 11:41 AM #8
      Great guide Rob! I have the same spring compressor, Im trying to figure out how you mounted it. Mine doesnt want to seem to line up, nor which screws should I use. WIll the Valve Cover screws work?

    9. Member GoKraut's Avatar
      Join Date
      Mar 28th, 2005
      Location
      North Bend, WA
      Posts
      3,230
      10-22-2011 04:05 PM #9
      Wow. This is so old I forgot about even doing it.

      I used the bearing cap screws to secure it and oversized washers to prevent the framework from popping through and slipping out of the stud. Shoot it has been awhile I can't remember 100% what I did. I know whatever I *did* do was all done with hardware already present plus a few washers.

      Hopefully you got it all figured out. I just saw this thread looking for an unrelated post

      -Rob

    10. Member 83mk2scirocco's Avatar
      Join Date
      Nov 12th, 2008
      Location
      StickenBurg,AZ
      Posts
      5,462
      Vehicles
      84 scirocco,83 Scirocco(parts),76 scirocco"Sabine",85 ledgends turbo scirocco
      10-22-2011 05:43 PM #10
      Clean.

    11. Member scirocconaut's Avatar
      Join Date
      Oct 7th, 2011
      Location
      7000feet above sea level
      Posts
      1,016
      Vehicles
      1979 16v mk1 scirocco, 1978 scirocco race car (16vt build )
      09-27-2012 04:30 AM #11
      I learned how to do this at a shop and they made Me
      Do it
      By hand

      And warned me about using a drill
      Or anything else to do the job

      I don't know if they were just torturing me or what lol
      But it's quite sh*tty to rub your hands back and forth 10,000 times with a valve lapper suction tool
