These are in stock, ready to ship asap!
Please click on the picture to order.

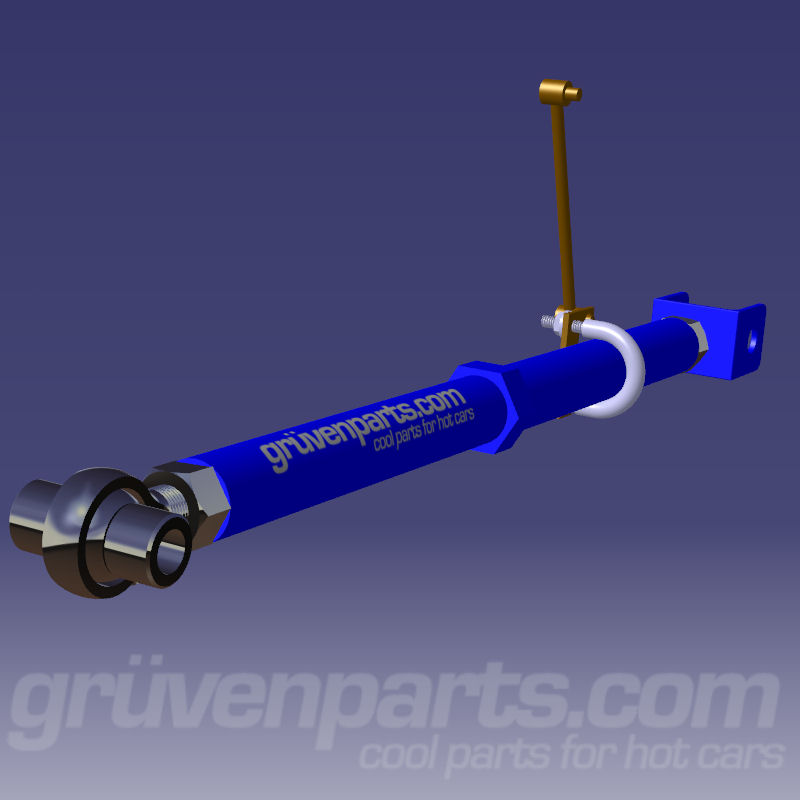

TT/R32 Rear Adjustable Control Arms
Click on the picture to visit our product page for up to date pricing info.
NOW CHOOSE POLY-BUSHINGS OR SPHERICAL ROD ENDS !!
Got a lowered TT or R32 ? Then you already know how the camber and toe become completely out of sorts, causing poor handling and expensive tire wear the more its lowered.
The GruvenParts adjustable control arms allow for complete rear wheel alignment and feature the following :
Choose from a zero deflection high radial load PTFE lined heim joint with protective dust boots preinstalled over specially machined bushings. The fit of the boot over the heim and bushings is nearly water tight!
A poly bushing end with a heat treated 4340 forged chromoly housing, grease fitting, zinc plated steel sleeves, and race grade greaseable black polyurethane bushings
You decide which set up you want ! The zero deflection spherical heims are suited for serious track abuse while the poly bushing ends are better suited for daily drivers.
All control arms feature the following :
Super strong, heat treated 4340 aircraft grade chromoly rod and ¼” thick U-Joints with machined, internally lubricated (molybdenum disulfide) threads. No weak aluminum is used for these parts (aluminum threads wont hold up).
Distinct proper wrench adjustment flats machined into the bars which allow for 2” of length adjustment while on the car. There is no knurled hand adjustment nonsense here, ours are simple to adjust.
Thick, durable powder coat finish (and zinc plating on the poly bushing ends) in your choice of high gloss black or Bilstein jazz blue. Please don’t adjust these with weight on the rear axle, and don’t use channel locks that could mar even a hard coat chrome plate.
Made right here in Atlanta, Georgia by our FAA approved commercial aviation machine shop working on state of the art CNC mills and lathes. You wont find many shops working at our level, and you wont find higher quality anywhere !
We know the economy is tough right now, so we are offering these at prices well under our competition. Buy 2 sets and save !!!
This product fits Audi TT (2001-2006), Audi A3/S3, VW R32 (2004), VW Golf 4motion and 4motion Variant, VW Bora 4motion and 4motion Variant and replaces P/N 1J0-505-323L (1J0505323L) and 1J0-505-323N (1J0505323N).
Want further discounts and more great products from GruvenParts.com? Read on!
TT/R32 Rear Adjustable Sway Bar End Linkages
Got a lowered TT, R32, or A3 ? Then you need to be able to adjust your rear stabilizer bar end links to ensure the linkages ride perpendicular to the swaybar and correct the less than ideal handling typical of lowered set ups. The factory set up does not provide any adjustability in the swaybar end links but GruvenParts.com has you covered!
Our adjustable end links are made from aerospace grade 6061-T651 aluminum hex and feature 2 full inches of adjustment ON THE CAR. This makes for very quick and easy length adjustment on both the top and bottom of the linkage to completely fine tune just about any suspension set up. Our linkages utilize high quality greaseable heim joints for many years of smooth and quiet operation. While we recommend using our fully adjustable rear control arms, you can install these end links without them. The main body is show quality powder coated jazz blue or gloss black to match our control arms, and like all of our parts they are made right here in Atlanta, Georgia by our FAA approved commercial jet aviation machine shop on state of the art HAAS mills and lathes. You wont find higher quality anywhere!
This product fits Audi TT (2001-2006), Audi A3/S3, VW R32 (2004), VW Golf 4motion and 4motion Variant, VW Bora 4motion and 4motion Variant and replaces OEM linkage P/N 1J0-505-466B (1J0505466B).
Please note : This product is sold in sets of 2 (1 for each side) and includes all required spacers and the upper bolt/lock nut. Re-use existing lower bolt
TT/R32 OEM Headlight Leveling Adapter Bracket
TT / R32 Headlight Leveling Adapter Bracket
Our headlight leveling adapter bracket is neoprene covered and comes with a rubber backing plate to securely attach the OEM headlight leveling arm to the GruvenParts.com adjustable rear control arms. The bracket is fully isolated from vibration and scratches and protects the beautiful powder coated finish on our adjustable rear control arms. Includes U bracket, nuts, and rubber backing plate - ALL hardware needed to quickly and simply attach your OEM headlight leveling arm. May require slight trimming of the neoprene wrap over the U-bolt with a sharp blade.
This product fits Audi TT (2001-2006), Audi A3/S3, VW R32 (2004), VW Golf 4motion and 4motion Variant, VW Bora 4motion and 4motion Variant equipped with a headlight leveling system and the GruvenParts.com rear adjustable control arms.
