      04-29-2011 01:19 PM #1
      I've been working on this for a while now. Wasn't going to create a project thread until it was done as my progress has been slow. I think there is enough to keep everyone interested for a bit. I was shooting for SOWO, but with work and home projects, I have pushed my goal back to Motorstadt 8

      I bought the car a few years back as a driver while my Audi was down. It was in great shape and a California car with no rust to speak of. Unheard of in MI. 1.8l 3 speed auto.


      I swapped over a Westy grill, lights and support to replace the 12 bar and spent aeros, threw on a set of Vmaxx I had sitting around and Helios interior. I cleaned the car up a bit, swapped the black dash pieces for blue and rocked it like that for a while.



      I started to really enjoying the car even with the auto. I had never driven a MKII auto before and they are actually quite fun. As fun as it was, I still liked rowing the gears and just happened to have everything for a 5 speed swap in the garage. As soon as the Audi was back on the road, I brought the car back in, repainted all the black trim and bumpers, swapped in the 5 speed, gave it a good waxing and threw some borrowed Panasports on.
      This is how she looked at Motorstadt 6


      A friend was moving to Texas and needed to dump some of the stuff he collected oever the years. Can't pass up a good low mileage ABA

      I tore it down to clean and freshen up with new gaskets and such. I rewired the engine side harness to come out the front of the motor while this was happening.



      Spent alot of time in here poking away at stuff

      Time to pull the old lump. She was a good runner, but it was time to go

      Before pic of the engine bay


      More coming, time to save.
      Last edited by detvw; 05-23-2011 at 12:52 AM.

    2. Member
      Join Date
      Jun 5th, 2001
      Location
      Royal Oak, MI
      Posts
      1,906
      Vehicles
      86 Jetta Coupe, 99.5 A4
      04-29-2011 01:46 PM #2

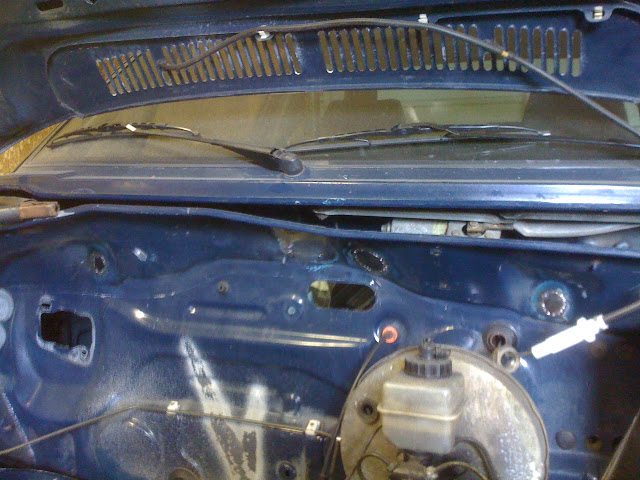

      Started Cleaning up the engine bay filling hols and making plans. I want to keep all the OEM lines, just clean it up a bit.


      What to do with this battery tray area to clean it up? I like the look of the welded panels, but didn't wan to go that route

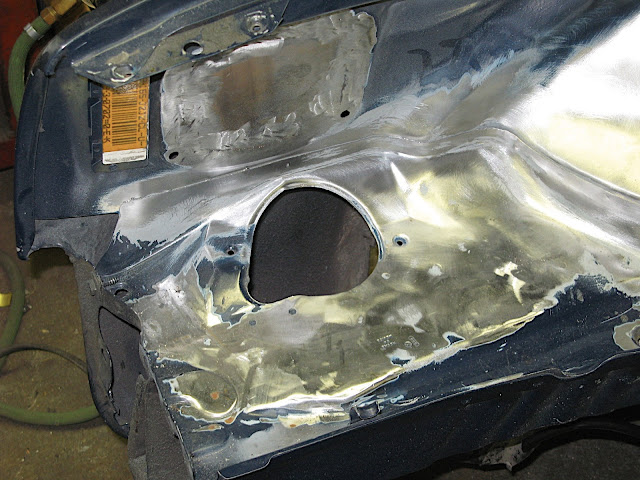

      Started in on the seam sealer removal. This sucks btw.

      It was really hard to remove behind the strut tower around the rain tray. Out came the rain tray, some thing I wasn't originally planning on doing.

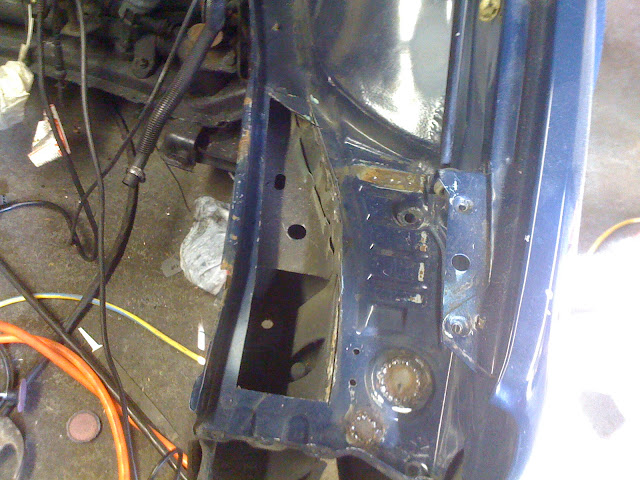

      Next was this little gem. There are like 6 angles that converge in this area and I wanted to retain that

      To the OEM!

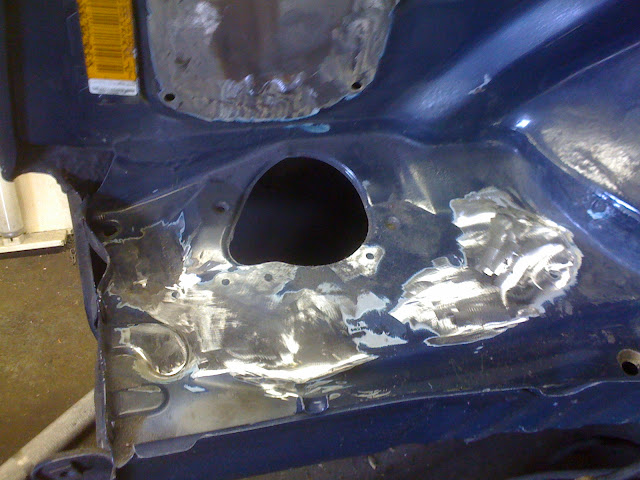

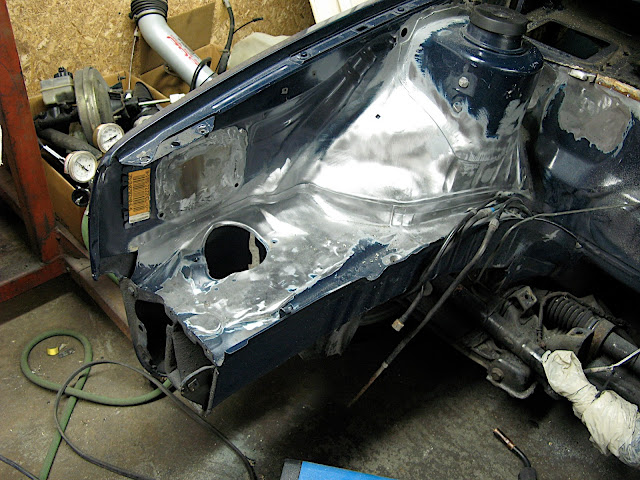

      A little welding and blending

      Won't be needing this guy anymore

      Borrowed this form my buddy Joe Zeeuw. some of you may have heard of him, he does some nice work.

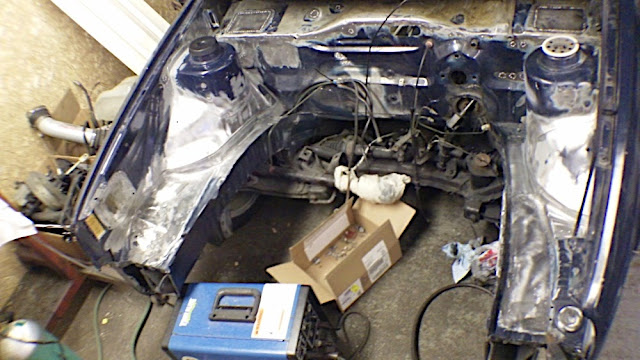

      Once I was able to remove more out of the engine bay, I got to finishing up my welding

      And done. For now at least.


      If I might, I would like to mention I am no photographer, and I've been here before This was my last 2.0l swap, shaved bay project.
      Last edited by detvw; 04-29-2011 at 01:54 PM.

    3. 04-29-2011 01:54 PM #3
      going to be great

    4. Senior Member cyclops594's Avatar
      Join Date
      Sep 28th, 2005
      Location
      NorCal(Mudville)
      Posts
      22,525
      Vehicles
      1991 Jetta GLI 16V
      04-29-2011 02:05 PM #4
      Nice work man! I love a Marine Blue Mk2, especially the coupes. That Cab looked pretty nice as well. In for progress, keep it up.

    5. Member
      Join Date
      Jun 5th, 2001
      Location
      Royal Oak, MI
      Posts
      1,906
      Vehicles
      86 Jetta Coupe, 99.5 A4
      05-01-2011 03:42 PM #5
      Thanks guys. I will be adding more later. My photos were on two computers and I had to compile them online. I also have an 85 Gl I'm working on and a 90 GLI coming over this week for repairs.

    6. Member sprocket007's Avatar
      Join Date
      Oct 14th, 2002
      Location
      Alberta, Canada
      Posts
      3,869
      Vehicles
      '92Passat G60 Syncro, '90 G60 Corrado, '89 Cabriolet, '86 Jetta Coupe, '81 Rabbit,'74&'69 Westfalia
      05-01-2011 04:27 PM #6
      nice work in the bay!
      BSc.N, EMS/FIRE

    7. Member strausj22's Avatar
      Join Date
      Jul 16th, 2008
      Location
      CT
      Posts
      795
      Vehicles
      MKV .:R
      05-01-2011 05:47 PM #7
      I've got your theme song

      MKV .:R - Bilstein PSS10 & Nuespeed 25mm Rear Sway

    8. Member
      Join Date
      Jun 5th, 2001
      Location
      Royal Oak, MI
      Posts
      1,906
      Vehicles
      86 Jetta Coupe, 99.5 A4
      05-01-2011 06:20 PM #8

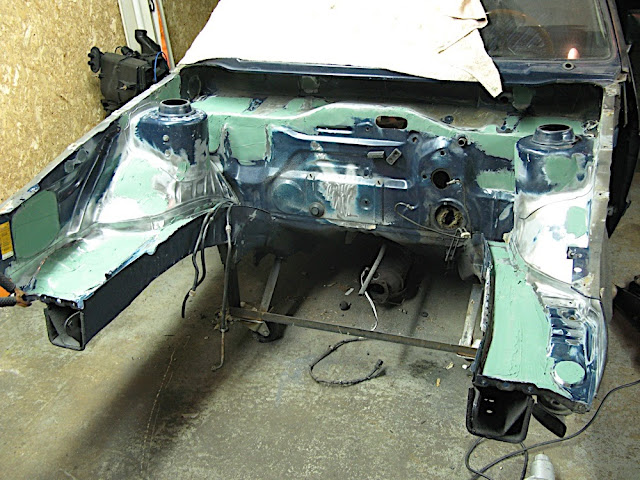

      It's Filler Time!

      Sorry abou the pic quality. Got some new parts and powder.



      My sanding buddy


      After finishing an area, I would throw some primer on to see how it looks

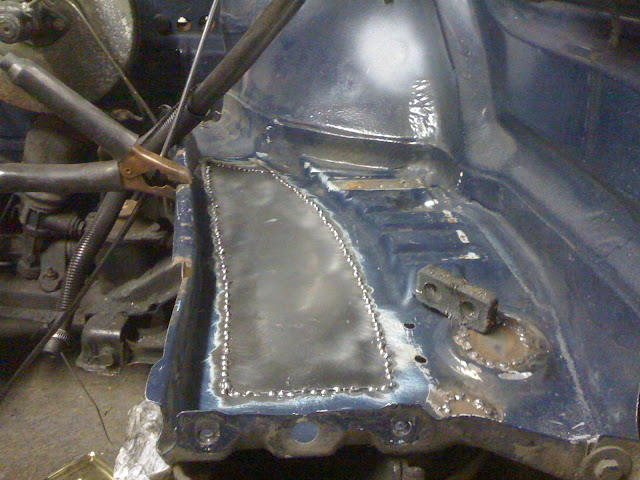

      Here's a close up of the filler plate in the passenger chassis leg.

    9. Senior Member cyclops594's Avatar
      Join Date
      Sep 28th, 2005
      Location
      NorCal(Mudville)
      Posts
      22,525
      Vehicles
      1991 Jetta GLI 16V
      05-01-2011 06:27 PM #9
      Very nice!!!

    10. Member
      Join Date
      Jun 5th, 2001
      Location
      Royal Oak, MI
      Posts
      1,906
      Vehicles
      86 Jetta Coupe, 99.5 A4
      05-01-2011 06:29 PM #10
      Winter began setting in, so I put any body filler/paintwork on hold and turned my attention to other things that needed to get done. This is the beauty of making a build thread after the fact. The work was slow, but things got done.
      Cleaned up an old 2y trans I was given. This included replacing the 5th gear with a diesel unit.

      Hit it with some POR-15. Not sure this is the trans I will end up with, so I didn't want to go through all the trouble of splitting the case and having it coated. The POR should hold up quite well while it is in the car.

      Cleaned up all my welds inside the car, POR'ed them and threw on some Dynomat for sound deadening.


      [img][/img]

    11. Member
      Join Date
      Jun 5th, 2001
      Location
      Royal Oak, MI
      Posts
      1,906
      Vehicles
      86 Jetta Coupe, 99.5 A4
      05-03-2011 10:24 AM #11
      While the car is up and the box is accessable I thought I would make use of the shifter rebuild kit I had sitting around. The box was pretty rusty, so I ran it through the blasting cabinet and coated it.



      I always make the mistake of leaving the wiring for last. Not this time.
      The good thing about the early Jetta is the fact that it uses the same fuse box and harness as the Cabriolet/Scirocco/Caddy. I had already done this swap and had my notes to work from.

      I spliced the MKIII engine harness into the MKII as opposed to rewiring the whole car for CEII. Once this was done, wire were numbered and the harness split. The harness was taped and the section to run through the frame rail wrapped in loom to protect it from vibrations and chafing.

      There is a convenient plug in the floor to access the chassis leg


      I reamed it out a bit to accept a factory grommet

      Ran the harness through. The larger one is for the engine and smaller for lights, turns, fan and horn.

      If you remember, I rewired the engine harness to come out of the front of the motor. I wanted to retain the stock barrel connection for quick disconnect. a spot for this was chosen and the soldering began.


      Last edited by detvw; 05-03-2011 at 11:15 AM.

    12. Member CodeMan's Avatar
      Join Date
      May 12th, 2006
      Location
      Denverish
      Posts
      7,546
      Vehicles
      Scirocco 16v, A2 ABA, '03 Tyke Hauler GLS
      05-03-2011 12:06 PM #12
      Great project. The bay should look great.
      Quote Originally Posted by seadoo2006 View Post
      I think Scirocco owners are just a little dense in the head...
      I, uhh... well, ok.

    13. Member
      Join Date
      Jun 5th, 2001
      Location
      Royal Oak, MI
      Posts
      1,906
      Vehicles
      86 Jetta Coupe, 99.5 A4
      05-06-2011 11:56 AM #13
      Not much to report. Been giving the ol' Blasting cabinet a workout cleaning up some bits that have yet to be addressed.


      The sound deadening in the footwells was pretty nasty. A friend of mine works at the dealer and found me OEM replacements. I didn't want to simply remove it as it's actually functional and helps the carpet sit right.

    14. Member
      Join Date
      Jun 5th, 2001
      Location
      Royal Oak, MI
      Posts
      1,906
      Vehicles
      86 Jetta Coupe, 99.5 A4
      05-20-2011 02:07 PM #14
      Small Update.
      I spent a couple days wiring the lights.

      Here you can see the harness on the right. It starts at the passenger turn signal, picks up the passenger light, travels across the rad support, picks up the drivers light and turn and ends. I am going to use the stock MKIII barrel connector so I can remove the rad support with everything attached.
      Here's a pic from the other side.

      I wasn't sure how these ugly bastards were going to look coming through the firewall.

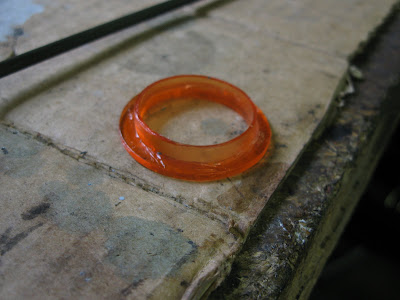

      So I did some Mcmastering and came up with these:

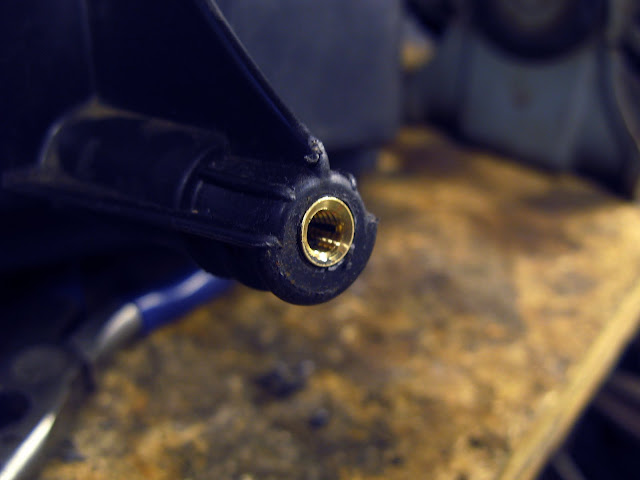

      Funny I need two and they only come in bags of 10. I'm sure I'll find somewhere else to use them. I drilled out the hvac and put them in.

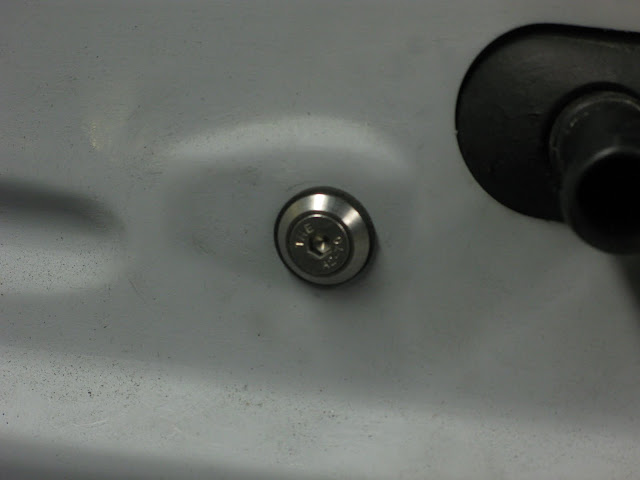

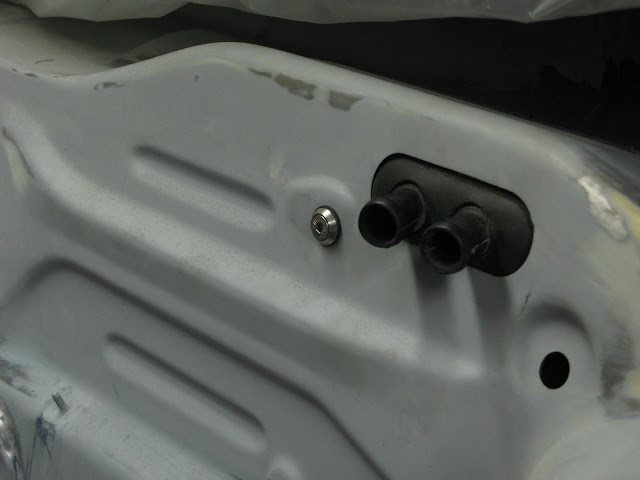

      as you can see in the first pic, they are knurled and slotted. They push out on the plastic when a bolt is inserted.

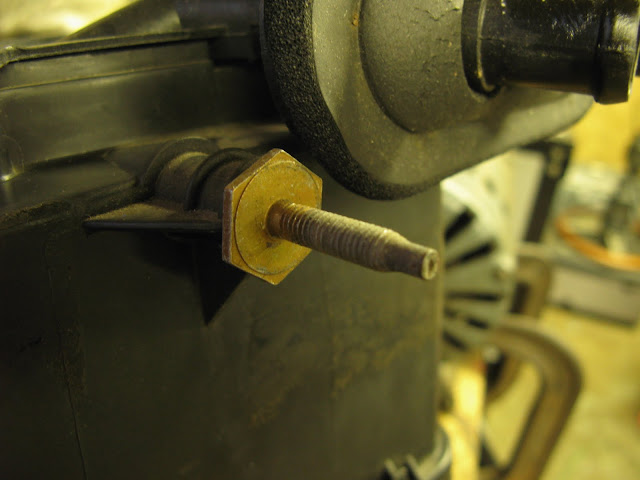

      When I ordered the Fender bolts, I got extra so I could use them here


      I did a couple more things like mounting the coil, cutting a hole for the wiper wiring, re-assembled the hvac, etc. that I don't have pictures of and laid the final coat of filler. Finish sanding has started and it should be in primer by tomorrow and painted by sunday.

      I have the next 5 days off and hope to get quite a bit done.

    15. Member Gaets's Avatar
      Join Date
      Feb 7th, 2005
      Location
      Easton, Maryland
      Posts
      5,448
      Vehicles
      1991 GTI 24v, 1997 Golf GLX
      05-20-2011 02:48 PM #15
      Awesome project looks great

    16. Member taymk2's Avatar
      Join Date
      Oct 21st, 2001
      Location
      Middleburg Va
      Posts
      5,906
      Vehicles
      95 cabrio 08 jetta 08 yukon xl 13 explorer xlt
      05-20-2011 05:48 PM #16
      Great job awsome work

    17. 05-20-2011 06:53 PM #17
      nice work man, really diggin it

    18. Member 16v2a2vr6's Avatar
      Join Date
      Jul 25th, 2010
      Location
      hackensack,nj
      Posts
      358
      Vehicles
      88scirocco 16v,90gli 16v,97gti vr6,89 jetta coupe,84 jatta coupe
      05-20-2011 10:25 PM #18
      like where this is going i like what u did with the heater box look good

    19. Member
      Join Date
      Jun 5th, 2001
      Location
      Royal Oak, MI
      Posts
      1,906
      Vehicles
      86 Jetta Coupe, 99.5 A4
      05-23-2011 12:04 AM #19
      As promised

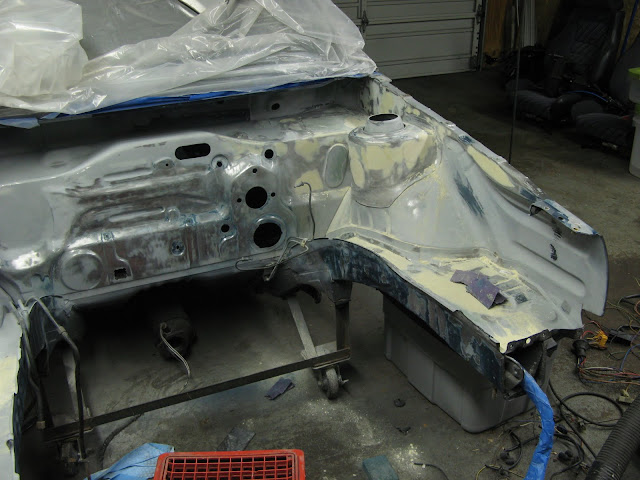

      I was hoping to get the bay in primer friday, but spent the whole day sanding and running around instead. Johnny B stopped by and helped me erect my temporary paint booth. Although the day was pretty well burnt up, I was happy to get the finish sanding done, the garage cleaned and beer consumed.

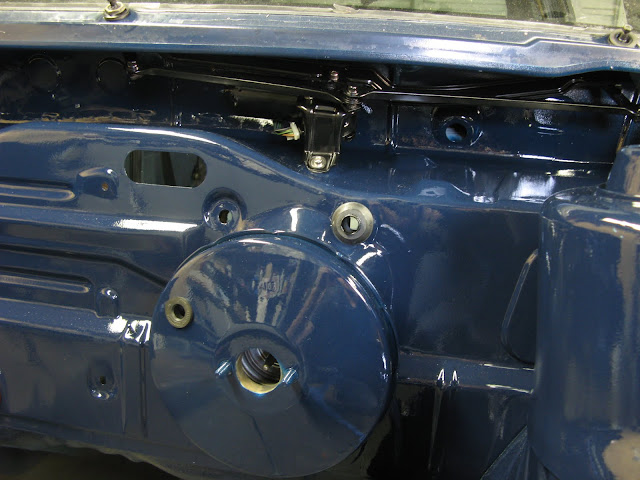

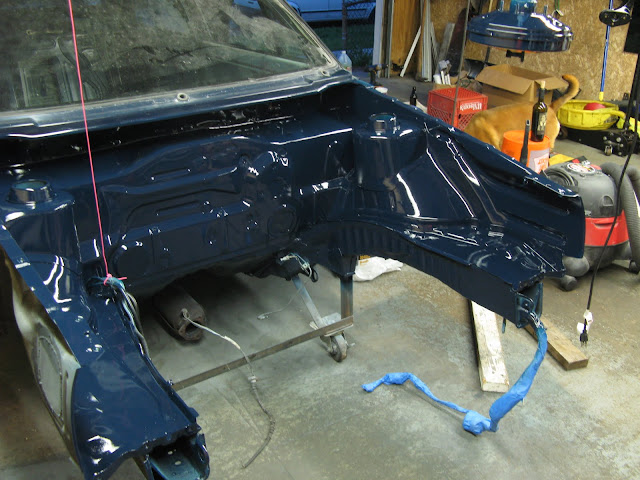

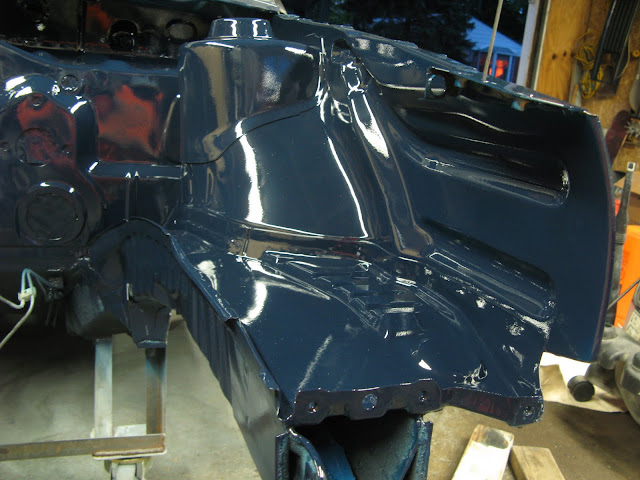

      After a long day on saturday, the bay was in primer. This took several trips to the hardware and a gun exchange at HF. I had every thing set, went to adjust pressure to the gun and noticed a huge crack at the back. Grrr. The plus side to the day was garrett and Corey stopping by to help out. Garrett spent a good part of the day wrestling with the headliner which had previously been recovered with liquid iron and would crack every time you tried to remove some material. As well as removing the material from the headliner and repairing all the damage with fiberglass, he brought over his Bissell AutoCare ProHeat® cleaner and gave the carpets a proper bath.
      I was in full work mode and this is the only pic I have from saturday

      Today was much better. After taking the dog to the dog park only to have him hid from the sun under a picnic table, I got right to work. Color went on great with only a couple snags. Clear went much of the same direction other than me spilling a cup of freshly mixed clear all over my bench thus reducing my supply of hardener. After 3 coats of color and 3 coats of clear the painting is done. Let me tell you after putting seriously close to a hundred hours into the bay, the paint was giving me a heart attack. I was a sweaty nervous mess. Here's the result.



      We got the lips 3/4 done on these too

    20. Geriatric Member steveo27's Avatar
      Join Date
      Aug 1st, 2005
      Location
      :faceplam: :beer: :thumbup:
      Posts
      46,012
      Vehicles
      2011 TRD Tacoma
      05-23-2011 12:09 AM #20
      Crooked Euros : try harder

      GET FUCKED

      We Do It Big In PA

    21. Member tunethtmkII's Avatar
      Join Date
      Jun 27th, 2009
      Location
      SEATAC
      Posts
      1,041
      Vehicles
      1985 golf 16v
      05-23-2011 12:15 AM #21
      about time a good build come up
      NWAK-northwest alpine killers

      i love the VAG

    22. Member Live Fast's Avatar
      Join Date
      Jul 10th, 2007
      Location
      City of Dreams
      Posts
      8,933
      Vehicles
      Spaceship
      05-23-2011 12:23 AM #22
      Good work
      haters<3me
      Quote Originally Posted by Moofluffen View Post
      Amir > Charlie Sheen

    23. Member Rcmafia's Avatar
      Join Date
      Nov 26th, 2009
      Location
      Burlington, CT
      Posts
      1,574
      Vehicles
      monty green money pit, 91 audi 80 quattro, 04.5 PG Jetta GLI
      05-23-2011 12:53 AM #23
      definetly watching this one
      -Corey
      Quote Originally Posted by Moonequipt13 View Post
      The better question would have been is there anyone running a 15x8 with a properly sized tire

    24. Member
      Join Date
      Jun 5th, 2001
      Location
      Royal Oak, MI
      Posts
      1,906
      Vehicles
      86 Jetta Coupe, 99.5 A4
      05-23-2011 12:54 AM #24
      Just excited, thought I would do this


    25. Member Heidelberg2az's Avatar
      Join Date
      Aug 7th, 2009
      Location
      Kaiserslautern, Germany
      Posts
      1,267
      Vehicles
      87 Jetta, 86 Audi 80, 84 Golf, 83 Bug, 78 Golf
      05-23-2011 04:43 AM #25
      nice build thread. Digging those wheels!
      Looking for a new custom tattoo? Check out my shop!!
      American owned and operated
      www.facebook.com/americanelectrictattoo2013

    26. Member topdeadcenter's Avatar
      Join Date
      Mar 23rd, 2010
      Location
      Providence, RI
      Posts
      482
      Vehicles
      16v 1990 Jetta Coupe(SOLD), 1990 325i Coupe, 1990 Sportster 883
      05-23-2011 05:38 AM #26

      Very nice!
      freakoutthesquares

    27. Member 92volkswagengti's Avatar
      Join Date
      Apr 28th, 2010
      Location
      Portland,OR
      Posts
      181
      Vehicles
      92 Gti
      05-23-2011 06:12 AM #27
      what did u use to take off all that sealer stuff on the strut tower?

    28. Member Mean 'n Green86's Avatar
      Join Date
      Dec 16th, 2006
      Location
      mount joy PA
      Posts
      2,837
      Vehicles
      07 Passat Wagon
      05-23-2011 06:23 AM #28
      amazing. im gonna be late to work now because i was reading your thread................totally worth it
      VW's the older the better
      http://www.4everkustoms.com/ <=THE BEST
      BUY MY PARTS MKII MOSTLY
      http://forums.vwvortex.com/showthrea...7#post82154097

    29. Member FLATBLACKMK2's Avatar
      Join Date
      Oct 10th, 2003
      Location
      Mickey Mouse's Trouwzah'z Dude.Guy
      Posts
      15,165
      Vehicles
      92 Monstah 4Lugz6Slugz,84 GLI fo'door
      05-23-2011 08:35 AM #29
      watching, love Marine Blue...u keeping it that color too......
      Broke.Status.N.E.K<3F6squared<3GetLow<3VwFiends<3Fifteen52<3Ban chWerks<3sdobbinsphotography<3CreEp CuStOmZR.I.P.ALEXIR.I.P.Scott TaylorR.I.P. Moses
      DrivenApparelGengstout#SLAW#

    30. Member JDMillhouse's Avatar
      Join Date
      Feb 19th, 2005
      Location
      GA
      Posts
      6,185
      Vehicles
      87 jetta coupe
      05-23-2011 09:04 AM #30
      marine blue ? may be picking one up tomorrow....nice work!

    31. Member
      Join Date
      Jun 5th, 2001
      Location
      Royal Oak, MI
      Posts
      1,906
      Vehicles
      86 Jetta Coupe, 99.5 A4
      05-23-2011 10:36 AM #31
      Best idea I've had yet!

      I remembered this from painting the cabby Not having a place to put the gun when it's not in your hand sucks

    32. Member
      Join Date
      Jun 5th, 2001
      Location
      Royal Oak, MI
      Posts
      1,906
      Vehicles
      86 Jetta Coupe, 99.5 A4
      05-25-2011 10:49 AM #32
      Well Monday and Tuesday were not as productive as I might have hoped. I spent a lot of time just just figuring a few things out and doing a bunch of running around. Went to the Hot Water Music show on Monday which kept me out late and left Tuesday with a proper hang over. I bolted a couple things back in, got the battery power sorted, made a harness for the power Recaros, removed the auto wiring and installed the coil wire pass-through.
      Here's some pics:

      This is the pass-through for battery power. It should work well for connecting the fuse box power as well instead of having to run it all the way back to the trunk.

      Since I am running the non-AC box, I am using the drain location for battery power. The pass-through didn't fit perfect, so I found a solution at the hardware.

      It fit perfect

      It was next to impossible to put on the inside. I don't think it's terrible on the outside. You won't really see it anyway.



      Hoping to get the rest of the interior wiring sorted tonight so I can get the interior back in. I have my flywheel at the machine shop at the moment, so I am going to wait until the weekend to start filling the bay back up.
      Last edited by detvw; 05-25-2011 at 10:54 AM.

    33. Member krupske's Avatar
      Join Date
      Mar 10th, 2010
      Location
      The Netherlands
      Posts
      1,802
      Vehicles
      golf mk2 g60
      05-25-2011 11:22 AM #33
      looks very very good!
      MAKE IT OR BREAK IT

    34. Member MK6spDiesel's Avatar
      Join Date
      Feb 12th, 2010
      Location
      Avondale, AZ
      Posts
      1,004
      Vehicles
      MK6 GLI, MK3 jetta TDI, A1 scirocco, MK6 TDI, MK2 Coupe VR, MK1 rabbit turbo
      05-25-2011 01:31 PM #34
      Very nice

    35. Member
      Join Date
      Jun 5th, 2001
      Location
      Royal Oak, MI
      Posts
      1,906
      Vehicles
      86 Jetta Coupe, 99.5 A4
      06-06-2011 08:42 AM #35
      Been busy working and not updating or taking pictures.

      It was a very busy couple days this weekend, but I think we're gonna make it.

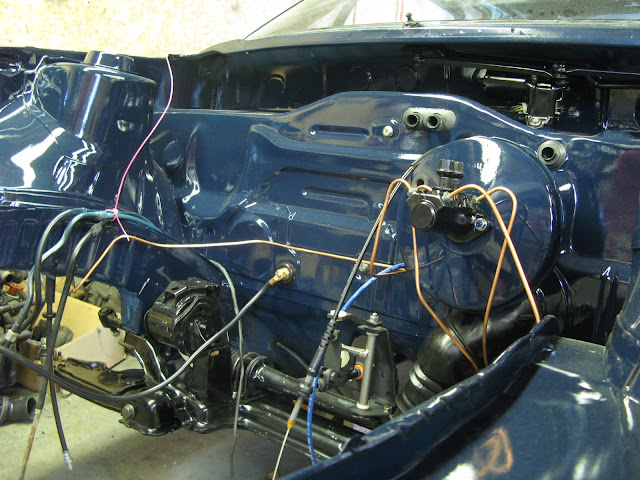

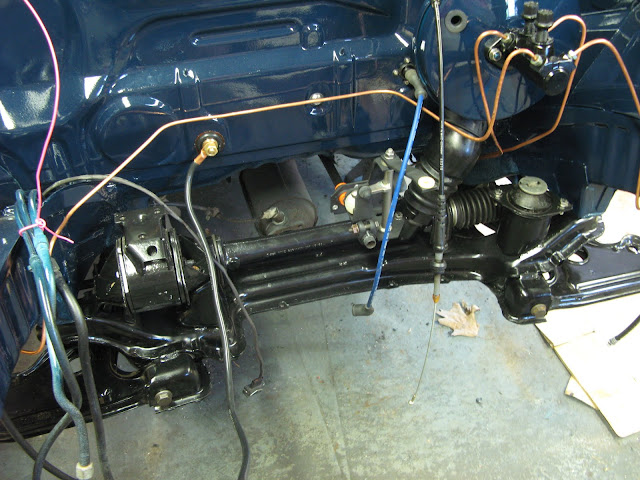

      Got the brake lines, subframe, control arms and shift linkage in.


      Asembled the Motor/trans and put them in the car

      Re-assembly begins


      There have been a ton of problems/set backs, but I'm in good shape now. I keep running into things I have over looked and have spent a lot of time cleaning things up, painting and searching for missing items that have been hiding for two years.

    Page 1 of 5 12345 LastLast

    Posting Permissions

    • You may not post new threads
    • You may not post replies
    • You may not post attachments
    • You may not edit your posts
    •
