    Thread: NUBWORKS ABA LRI Intermanicooler AWIC build

    1. 12-23-2011 10:01 PM #1
      Take a good look at the LRI, I am having fabricated. *Long runners similar to the USRT unit I could not afford. *This should really wake up my Built ABA w/ 270 cam, and sealed airbox with cold air feed and velocity inlet in the lower grille.

      original thread.
      http://forums.vwvortex.com/showthrea...7#post74435917














      I cannot wait till this is finished.

      Also going on this motor, is a polished G60 Valve cover, t3/t4 .50 cold side. .63 hot side. and LRI dual plenum manifold w/ integrated AWIC with icebox and Bosch cobra Pump.

      Will be using C2's 42lb. fueling kit.






      I cannot take credit for the fabrication.

      Quote Originally Posted by jettred3 View Post








      Updates, I am going with a larger plenum, IAC provision, and 1.8t IAT sensor.

      Should have the manifold installed by December.
      Quote Originally Posted by nubVR
      Alright dude.... check it out... With the new bit, I had to stack the welds, and make some meat around the runners.... 5 passes around each pipe! * In order to do that, you gotta weld, then let cool, weld then let cool, *or i would warp it all to hell, *took me about 2 hours! * But you can see the stacking in the pictures, *and the last pic with the new bit... gonna try and port tomorrow night


      Updates

      Quote Originally Posted by nubVR




      Alright... did about 3 passes on each.... broke the bit on the last one.... ****in arm is bleeding.... *you owe me!!!! *lol * * Anyway i figured that was a sign to stop.... i ordered 2 bits when i ordered so were ok still.... i still have another 1/2" to lower the bit, so they should really grow in size when i lower it! * ill try and do some more in the morning! *Have a good thanksgiving man
      Quote Originally Posted by nubVR
      Quote Originally Posted by jettred3
      Quote Originally Posted by nubVR
      got new runners on and plenum plate on..... *gonna drill and do all the plate welding tomorrow after work
      *

      great news, thanks for the update.
      *


      Used a 3/8"plate this time, and bigger welds! *Gonna try and get it drilled out today


      Quote Originally Posted by nubVR
      Quote Originally Posted by jettred3
      Quote Originally Posted by nubVR
      Sweet!...... * *Dude, *i didnt get **** done today on your manifold..... *I can tell you all the reasons in the world, and im not makin stuff up either, *i have some bad luck!! * Anyway * saturday i should make good progress on it..... *Also for taking so damn long, and i really hate it. * *Ill do that vband stuff free of charge.
      *

      Thanks Justin.
      *
      Dude!! Check it out!!! Couple little spots I need to fix... * The mouths are 3" diameter!
      Updates







      The pics below are from someone elses build but we will design something similar, mostly Justin not me...

      Quote Originally Posted by bulldogger72 View Post
      AWIC intake manifold for ABA motor
      MUST use the ABF alternator setup
      core is from Bell, rated for 400+whp
      $800 shipped

      Thinking of doing something similar

      Any thoughts

      Quote Originally Posted by nubVR
      http://www.siliconeintakes.com/produ...4b9502fb8b9a55

      i think you want this one..... * then i can either cut both sides off, or we can even use the one side if you wanted.... i think i would rather cut both off and make everything, *but thats up to you.... let me throw a tape up with the manifold so you can see how long it is.
      *


    2. Member
      Join Date
      Feb 23rd, 2003
      Location
      NJ
      Posts
      627
      Vehicles
      1993 Corrado
      12-24-2011 12:08 AM #2
      Neat. I like it!

    3. Member AJmustDIE's Avatar
      Join Date
      Dec 22nd, 2010
      Location
      Ocala, Florida
      Posts
      2,274
      Vehicles
      97 Black GLX, RIP 97 White 8vT Jetta Trek
      12-24-2011 03:48 AM #3
      Loved everything I just seen.
      Quote Originally Posted by root beer View Post
      It's Timmy with mmmmMojo, i have returned
      8VALVETURBO - RIP White Jetta

    4. 12-24-2011 08:18 AM #4
      Thanks guys, my built aba with scat rods and ross pistons is making either rod knock or piston slap noises so I'm gonna have to rebuild or swap in a new bottom end before I boost it.

      I have a spare motor on a stand and am gabbing the down pipe for my mk1 as well.

      If anyone wants to do some good reading check out Bentley publishers maximum boost by corky bell of bell inter coolers.

    5. Member sp_golf's Avatar
      Join Date
      Nov 28th, 2007
      Location
      Toronto
      Posts
      3,657
      Vehicles
      88 Golf 16vT
      12-25-2011 01:56 AM #5
      Looks goood
      Last edited by sp_golf; 12-25-2011 at 01:58 AM.
      SP Solutions
      Tuning - Automotive - Consulting
      647-779-4101

      Lugtronic tuning/installs, Maestro 7, SDS, AEM, 034EFI, Vagcom, 02A repairs/upgrades, etc

    6. 12-27-2011 03:55 PM #6
      https://www.facebook.com/inteng?v=ap...data=cid_12851

      Please vote for me, i'm having rod knock.

    7. Member sp_golf's Avatar
      Join Date
      Nov 28th, 2007
      Location
      Toronto
      Posts
      3,657
      Vehicles
      88 Golf 16vT
      12-27-2011 04:55 PM #7
      Quote Originally Posted by jettred3 View Post
      https://www.facebook.com/inteng?v=ap...data=cid_12851

      Please vote for me, i'm having rod knock.
      Just throw a stock bottom in there, I have 1 laying around in my garage, it will make 300+whp all day with a proper tune
      SP Solutions
      Tuning - Automotive - Consulting
      647-779-4101

      Lugtronic tuning/installs, Maestro 7, SDS, AEM, 034EFI, Vagcom, 02A repairs/upgrades, etc

    8. 12-27-2011 04:59 PM #8
      that's my back up plan.

    9. 12-29-2011 10:49 AM #9
      [QUOTE=jettred3]
      Quote Originally Posted by nubVR
      I think i just got the AWIC... not gonna open till tomorrow..... got a few other projects laying on the table i gotta finish up.... ill send you some thoughts and stuff tomorrow
      You don't need to worry about the iac I'm gonna delete it.


      Quote Originally Posted by 18T_BT View Post
      it doesn't look like that anymore:

      I'd like the throttle body to mount like Ed's car equal distribution for all four cylinders...

      I have some ideas as well.

    10. 01-19-2012 02:26 PM #10
      Quote Originally Posted by tgibson View Post
      I like the idea of the intercooler integrated into the intake, but will that actually fit in a mk1? The mock up pics are in a mk3. If I understand what you're doing here correctly
      It will fit, we are building it from scratch.

      PLEASE TAKE the time to vote for me.



      Just a rough sketch, but thats the idea I'm hoping for.

      Quote Originally Posted by nubVR
      So.... got some pics. IC is big, just like i thought it was gonna be. When i recomended the IC we picked, it was based on the first pics you showed me, from bulldogger.... with the core in front of the runners. So keep that in mind when we figure out what were doing!

      First pic, just for size compare and layout, there is about 1/2" i can go down

      angled a little... notice where still really high! Measurment is from bottom of the head, it is also sitting flat on the table, not at angle like the block
      I'm hoping we can chop the core down a bit, or I may just get him another core to work

      We will end up running a bell core, and selling off the core pictured up.

    11. Member AJmustDIE's Avatar
      Join Date
      Dec 22nd, 2010
      Location
      Ocala, Florida
      Posts
      2,274
      Vehicles
      97 Black GLX, RIP 97 White 8vT Jetta Trek
      01-19-2012 02:39 PM #11

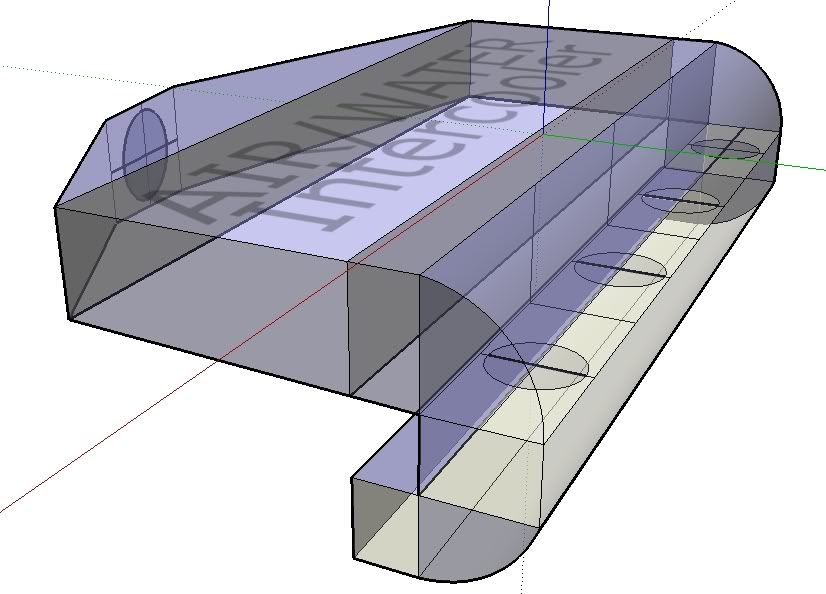

      This is just the type of manifold I wanted to build, but I wanted ITB's as well.


      ROUGH draft.
      Quote Originally Posted by root beer View Post
      It's Timmy with mmmmMojo, i have returned
      8VALVETURBO - RIP White Jetta

    12. 01-19-2012 03:40 PM #12
      ITBs would be killer.

      Bit much though.

    13. Member
      Join Date
      Mar 15th, 2003
      Location
      London Ontario Canada
      Posts
      3,686
      01-21-2012 10:58 AM #13
      Quote Originally Posted by jettred3 View Post
      ITBs would be killer.

      Bit much though.
      and then hook up the ac somehow to cool the IC

    14. 01-21-2012 08:03 PM #14
      Enough Ice in the 2.6 gallon resevoir, a good pump, and maybe a little CO2, and the core will be sufficiently cool.

      The CO2 spray would only be for making "a one shot cooler?, where The intake charge*is cooled so much it is actually below ambient temperature before entering the plenum.

      It might be liquid nitrogen, the drag guys use i'm not sure but basically you can in theory make an AWIC more than 100 percent efecient and actually lower temps below Ambient IAT...

    15. Member AJmustDIE's Avatar
      Join Date
      Dec 22nd, 2010
      Location
      Ocala, Florida
      Posts
      2,274
      Vehicles
      97 Black GLX, RIP 97 White 8vT Jetta Trek
      01-21-2012 10:26 PM #15
      Quote Originally Posted by jettred3 View Post
      you can in theory make an AWIC more than 100 percent efecient and actually lower temps below Ambient IAT...
      I did in my daily (check my build) about a week ago, with no ice in the reservoir I came a couple degree's down below ambient air temps.
      Quote Originally Posted by root beer View Post
      It's Timmy with mmmmMojo, i have returned
      8VALVETURBO - RIP White Jetta

    16. 01-23-2012 12:41 PM #16
      Quote Originally Posted by AJmustDIE View Post
      I did in my daily (check my build) about a week ago, with no ice in the reservoir I came a couple degree's down below ambient air temps.
      Then just imagine what ice in the tank could do.



    17. 01-24-2012 04:47 PM #19
      INDUCTION TEASER 7"Velocity Stack will be mounted in DS Headlight spot.



      This will connect to the BBM airbox, pictured earlier in thread.




      Mounted in headlight bracket, ready to go.

      For Day use and Dyno/ shows only.

    18. Member
      Join Date
      Oct 22nd, 2004
      Location
      Morrisville, VT
      Posts
      142
      Vehicles
      83 Rabbit GTI, 66 Beetle, 90 Audi 90 20v, 97 Jetta 2.0
      01-24-2012 07:27 PM #20
      I mocked up my Kinetic manifold like that and the turbo compressor hit the firewall.
      That was on a MK3.

    19. 01-25-2012 12:31 PM #21
      Quote Originally Posted by lbubbyj View Post
      I mocked up my Kinetic manifold like that and the turbo compressor hit the firewall.
      That was on a MK3.
      Was it the firewall or the raintray it hit?

      Might have to bust out a hammer and a dremel.

    20. 02-15-2012 12:31 PM #22
      Quote Originally Posted by nubVR
      alright..... Im gonna highly recomend a billet fuel rail, and a FPR that is moved out a bit, or remote mounted check out how the core sits, off set because of the FPR




      thats the first problem, shouldnt be a big deal, next decision, do you want the core, close to the plenum, or with a couple inches back? Sorry for crappy pics, tranny and oil are all over my work bench, i didnt wanna get the manifold stuff all dirty!
      core is very nice BTW as it should be for the price!
      Making some nice progress.

      ---------------------------------------------------------------------------------------------------------------

      Quote Originally Posted by nubVR






      ok this last pic is rough shape of plenum, the front of it is 12" from the head..... Im a little worried about overal height and the hood, sinse the hood slopes torward the front...... Half of me wants to make a card board template that we would be able to attatch and let you shut your hood and see if it smashes.... id hate to do all the work and be cuttin stuff apart, this is the problem with doin this type of stuff and not having a car here!


      Also, water ports, do you want both on one side? or One on each side? Something is telling me both on the driverside might be best..... but not sure where your htinkin about setting all your stuff up. Let me know... im not doin anything else till we get a plan.

      Oh and valve cover.... i dont think we mess with it, i think the way its gonna be shaped it should keep air speed up for the pressure drop its gonna see when it opens up... and the velocity for it hitting those cooling fins? This is all just dumb guy garage theory though
      Making some more progress, any thoughts on the above?....

    21. Member
      Join Date
      Oct 22nd, 2004
      Location
      Morrisville, VT
      Posts
      142
      Vehicles
      83 Rabbit GTI, 66 Beetle, 90 Audi 90 20v, 97 Jetta 2.0
      02-15-2012 08:05 PM #23
      Quote Originally Posted by jettred3 View Post
      Was it the firewall or the raintray it hit?

      Might have to bust out a hammer and a dremel.
      Firewall for sure. I ended going with a SPA manifold so that I could keep the compressor pointed at the driver's side.

    22. 02-16-2012 12:17 PM #24
      Quote Originally Posted by lbubbyj View Post
      Firewall for sure. I ended going with a SPA manifold so that I could keep the compressor pointed at the driver's side.
      Mind sharing a couple photos of your setup?

    23. Member
      Join Date
      Oct 22nd, 2004
      Location
      Morrisville, VT
      Posts
      142
      Vehicles
      83 Rabbit GTI, 66 Beetle, 90 Audi 90 20v, 97 Jetta 2.0
      02-16-2012 08:59 PM #25
      Pics? I'm not that good at interweb yet. Here is a link to my build: http://www.dubsnorth.org/forum/viewt...11068&start=30

      Only one OK pic of the turbo manifold setup on page 3.

      I like that manifold your building.

    24. 02-17-2012 11:01 AM #26
      Quote Originally Posted by lbubbyj View Post
      Pics? I'm not that good at interweb yet. Here is a link to my build: http://www.dubsnorth.org/forum/viewt...11068&start=30

      Only one OK pic of the turbo manifold setup on page 3.

      I like that manifold your building.
      good stuff, thanks man.

    25. 04-09-2012 12:11 PM #27
      [QUOTE=jettred3;75484752]
      Quote Originally Posted by USRT
      US Rally Team Hahaha, credit goes to Justin and other USRT gangstas, too. So, when is this beast going to be finished, Dr. Ivey? The flow dynamics of an IC core just before the plenum have got us scratching our heads. None of the conventional formulas we use here "work" with the IC so close. It's fun to be a "n00b" again and watch with no specific expectations.
      5 hours ago · Like/QUOTE]
      Quote Originally Posted by nubVR
      Not much to see really...... but here you go.....




      Manifold is up for sale, taking serious offers.

    26. 04-10-2012 07:37 AM #28
      Looks great!! I remember back in 2007 bum had an awic intake mani for the aba but stop making it. It looked insane, infect I believe a couple people brought it. Gl keep up the good wrk
      d.i dubinvasion.co




    27. 05-24-2012 12:27 PM #32


      Plenum build begins, I may have to source a smaller rad, any suggestions?

    28. 06-08-2012 05:26 PM #33










      Stripping the motor down for a rebuild tonight, pretty sure its just rod bearings.

    29. Forum Sponsor JBETZ's Avatar
      Join Date
      Feb 17th, 2000
      Location
      Bend, Oregon
      Posts
      6,315
      06-08-2012 06:58 PM #34
      crazy...looks good
      like the air filter shield you are using
      BBM -Bahn Brenner Motorsport
      541.388.1202
      Face Book
      we share the passion!

    30. Member AJmustDIE's Avatar
      Join Date
      Dec 22nd, 2010
      Location
      Ocala, Florida
      Posts
      2,274
      Vehicles
      97 Black GLX, RIP 97 White 8vT Jetta Trek
      06-09-2012 12:05 AM #35
      I like the gold color!
      Quote Originally Posted by root beer View Post
      It's Timmy with mmmmMojo, i have returned
      8VALVETURBO - RIP White Jetta
