    Thread: The Official MkV Golf/Jetta Aftermarket Engine/Transmission Mount Guide

    1. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      10-06-2012 12:35 PM #1
      There have been many questions regarding different engine and transmission mounts for the MkV platform. This is going to be a comprehensive list of the most common mounts. Also, feel free to leave a picture of your vehicle with details on your mount component.

      If I am missing something, feel free to PM me and I will add it to this thread.

      Please, refrain from quoting full images and videos. Image quotes tend to clutter a thread.

      *Disclaimer*

      - Please check what is needed for your vehicle before making any purchases, as there may be a difference between FSI and TSI mounts, as well as five speed and six speed transmissions.

      - CLICK HERE for the sister thread, The Official MkV Golf/Jetta Aftermarket Lowering Spring/Coilover Guide.
      - CLICK HERE for the sister thread, The Official MkV Golf/Jetta Aftermarket Intake Guide.
      - CLICK HERE for the sister thread, The Official MkV Golf/Jetta Aftermarket Exhaust Guide.

      Density Specifications

      The rubber used in the mounts are measured by durometer, or stiffness. The higher the number, the stiffer or harder the material. OEM engine side mounts are fluid filled mounts, making it easy to detect a worn or bad mount. OEM transmission side mounts usually have two separate pieces of rubber within the mount. The inner piece has layers of holes to help cushion and absorb vibrations.

      - BFI stage 1: 65a durometer
      - BFI stage 2: 85a durometer
      - BFI stage 3: will update as soon known
      - BSH: 78a durometer
      - VF: company will not disclose
      - 034Motorsport Street: 60a durometer
      - 034Motorsport Track: 80a durometer
      - HPA core interlock: 75a, 80a, 85a, 90a durometers
      - ECS Tuning insert ('05.5-'08.5): 70a durometer
      - ECS Tuning insert ('08.5+): 90a durometer
      - Neuspeed insert ('05.5-'08.5): 65a durometer
      - Neuspeed insert ('08.5+): 65a durometer
      - DLI-Teknik engine and transmission mounts: no rubber; it is a coil spring
      - DLI-Teknik insert ('05.5-'08.5): will update as soon known
      - VWR: 75a durometer

      Torque Specifications

      - Frame rail bolts: 30 lb-ft
      - Engine/transmission bolts: 44 lb-ft

      Engine Mount

      - 2.0T FSI

      - BFI stage 1
      - BFI stage 2
      - BFI stage 3 (specify engine)
      - BFI stage 1 replacement inserts
      - BFI stage 2 replacement inserts
      - BFI stage 3 replacement inserts
      - BSH
      - VF
      - 034Motorsport (specify density and engine)
      - DLI-Teknik
      - VWR

      - 2.0T TSI

      - BFI stage 1
      - BFI stage 2
      - BFI stage 3 (specify engine)
      - BFI stage 1 replacement inserts
      - BFI stage 2 replacement inserts
      - BFI stage 3 replacement inserts
      - BSH
      - VF (not listed on their webiste)
      - 034Motorsport (specify density and engine)
      - DLI-Teknik
      - VWR

      - 3.2

      - BFI stage 1
      - BFI stage 2
      - BSH
      - VF
      - 034Motorsport (specify density and engine)
      - DLI-Teknik
      - VWR

      - 2.5

      - BFI stage 1
      - BFI stage 2
      - BSH (not listed on their website)
      - VF (not listed on their website)
      - 034Motorsport (not listed on their website)
      - DLI-Teknik (not listed on their website)

      Transmission Mount/Insert

      Six Speed/DSG

      - BFI stage 1
      - BFI stage 2
      - BFI stage 1 INSERT ONLY
      - BFI stage 2 INSERT ONLY
      - BSH
      - VF
      - 034Motorsport (specify density and engine)
      - DLI-Teknik
      - VWR

      Five Speed/Tiptronic

      - BFI stage 1
      - BFI stage 2
      - BFI stage 1 INSERT ONLY
      - BFI stage 2 INSERT ONLY
      - BSH (3 bolt trans only)
      - VF (not listed on their website)
      - 034Motorsport (not listed on their website)
      - DLI-Teknik (3 bolt trans only)

      Torque Arm (Dogbone) Insert/Replacement

      2005.5-2008.5

      - BFI
      - BSH
      - VF
      - 034Motorsport Mount
      - 034Motorsport Insert
      - HPA Core Interlock (specify density and engine)
      - ECS Tuning
      - Neuspeed
      - DLI-Teknik
      - VWR

      2008.5+

      - BFI stage 1
      - BFI stage 2
      - BSH
      - VF (not listed on their website)
      - 034Motorsport Mount
      - 034Motorsport Insert
      - HPA Core Interlock (specify density and engine)
      - ECS Tuning
      - Neuspeed
      - VWR
      Last edited by christofambrosch; 12-28-2012 at 11:01 PM.
      "Antequam desilirent", RIP brothers.

    2. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      10-06-2012 12:36 PM #2

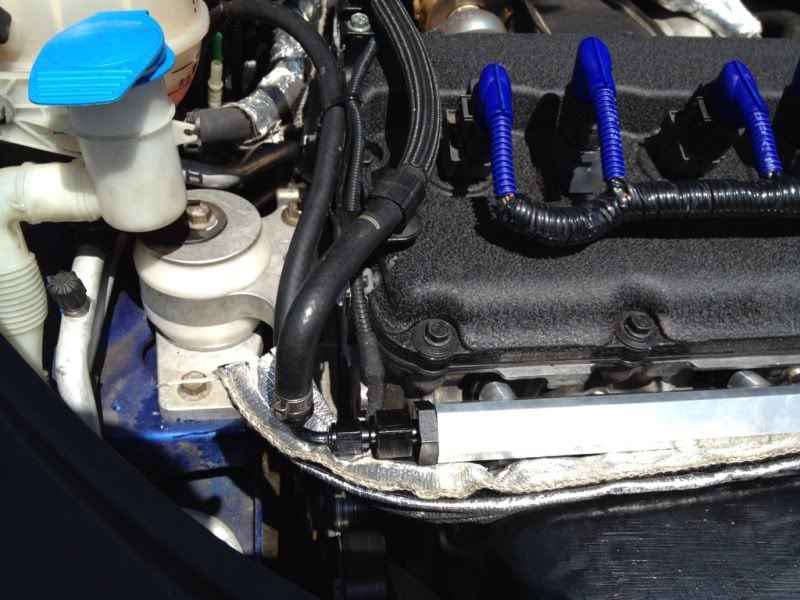

      KIDVersion 1 (2.0T FSI, 6-speed, BFI stage 2)

      17 October 2012 by santorum, on Flickr

      thygreyt (2.5, 6-speed, BSH)


      Ben from RI (2.0T TSI, DSG, VF Engineering)
      Last edited by christofambrosch; 10-17-2012 at 04:15 PM.
      "Antequam desilirent", RIP brothers.

    3. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      10-06-2012 12:37 PM #3
      Reserved
      "Antequam desilirent", RIP brothers.

    4. Member bryangb's Avatar
      Join Date
      Jun 16th, 2010
      Location
      Hanover, PA
      Posts
      15,213
      Vehicles
      '08 GTI, '12 Beetle, '91 Passat
      10-06-2012 01:43 PM #4
      Really wish VF released that info.
      // Open Road Tuning
      Instagram: @bryangb
      bags and wheels = build thread

    5. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      10-06-2012 01:45 PM #5
      Quote Originally Posted by bryangb View Post
      Really wish VF released that info.
      I am going to email both VF and BFI, since their stage 3 is also not listed. I've searched for a long time with no information to show.
      "Antequam desilirent", RIP brothers.

    6. Member Fuk It MkV's Avatar
      Join Date
      Jul 1st, 2011
      Location
      State College, Pa
      Posts
      2,844
      Vehicles
      GeeTeeEyee on Pegadicks
      10-06-2012 01:55 PM #6
      Quote Originally Posted by bryangb View Post
      Really wish VF released that info.
      You'll never know because you never took a ride
      | Instagrams: fukitmkv | I didn't build anything; I just bolted stuff on.

    7. Moderator gtimakesmebroke's Avatar
      Join Date
      Sep 30th, 2006
      Location
      NO MORE VEGAS! Lehigh Valley, PA
      Posts
      4,914
      Vehicles
      2007 VW GTI, 2014 SEL Tiguan, 2004 A4 Avant, 2012 Jetta TDI (gone), 99 VW Jetta GL (gone)
      10-06-2012 02:23 PM #7
      great info, added to FAQs
      DUNKIN'DUBS//ORT//stop putting random things on your roof//bags&wheels-because build thread
      @gtimakesmebroke

    8. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      10-06-2012 02:26 PM #8
      Quote Originally Posted by gtimakesmebroke View Post
      great info, added to FAQs
      Thank you, Matt.
      Last edited by christofambrosch; 10-06-2012 at 03:03 PM.
      "Antequam desilirent", RIP brothers.

    9. Moderator gtimakesmebroke's Avatar
      Join Date
      Sep 30th, 2006
      Location
      NO MORE VEGAS! Lehigh Valley, PA
      Posts
      4,914
      Vehicles
      2007 VW GTI, 2014 SEL Tiguan, 2004 A4 Avant, 2012 Jetta TDI (gone), 99 VW Jetta GL (gone)
      10-06-2012 02:49 PM #9
      I'm Matt. But you're welcome.
      DUNKIN'DUBS//ORT//stop putting random things on your roof//bags&wheels-because build thread
      @gtimakesmebroke

    10. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      10-06-2012 03:01 PM #10
      Quote Originally Posted by gtimakesmebroke View Post
      I'm Matt. But you're welcome.
      Uh...whoops...sending pm. Lol.
      "Antequam desilirent", RIP brothers.

    11. Member
      Join Date
      Feb 18th, 2012
      Location
      Greensboro, NC
      Posts
      1,518
      Vehicles
      07 RS MKV GTI, 74 Super Beetle
      10-06-2012 08:04 PM #11
      great info... Kid, you know so much. You need an award.

    12. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      10-06-2012 08:25 PM #12
      Quote Originally Posted by RoxanneIsMyFAST View Post
      great info...
      Thank you. I really didn't know much about mounts until I started researching for my own purchase. I didn't use my own knowledge when making this thread; this is just a collection of the homework I did so others don't have to spend as much time as I did. Just trying to help out.

      Both VF and BFI have been emailed regarding density specs.
      Last edited by christofambrosch; 10-08-2012 at 08:36 AM.
      "Antequam desilirent", RIP brothers.

    13. Member kern417's Avatar
      Join Date
      Jul 31st, 2011
      Location
      Louisville, KY
      Posts
      1,987
      Vehicles
      '09 Jetta Wolfsburg 6MT
      10-06-2012 11:21 PM #13
      It would be awesome if these got stickied. folks will look at it quicker than sifting through a list of FAQ/DIY threads
      There's a little bit of rice in all of us.

      TOTALED MKV JETTA WOLFSBURG EDITION COMPLETE PARTOUT

    14. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      10-07-2012 06:28 AM #14
      Quote Originally Posted by kern417 View Post
      It would be awesome if these got stickied. folks will look at it quicker than sifting through a list of FAQ/DIY threads
      It did get added.
      "Antequam desilirent", RIP brothers.

    15. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      10-08-2012 03:14 PM #15
      New information I found in the R32 forum. These are replacement parts for the VF mounts. These replace the standard red VF poly mounts. JC has told me that the density on these new replacements are rated at 85a. Here is more information from his thread:

      Quote Originally Posted by JC@DouglasVW View Post
      We will now be offering FFE Racing delrin motor mount inserts for VF mounts.



      We originally built these bushings out of aluminum for our own in house race cars and made a couple of extra sets to make it worth the time to set them up. Now with the aluminums mounts success we decided to make another replacement bushing set of delrin.

      Delrins characteristics are a good inbetween from the original poly mount and our solid aluminum race mounts.

      These bushings are a direct fit for mk4, mk5 and mk6 mounts and replace the upper and lower bushings in the mount while retaining the rest of the mount body/structure.

      Due to the machining inconsistencies from original manufacturing from vf engineering some of the bodies vary +/-.015" or more in center dowel size you may have to slightly sand down the original vf piece or it might have a tiny bit of play in it until the mount is completely assembled. We have not experienced a scenario where we had to modify the vf base, but this is a warning if it does come up with a customer.

      This is not something that we can control because the original mount manufacturer did not have to hold the part to a tight tolerance since a rubber/polyurethane can stretch/squish into an inconsistent part and still do its job.

      We have built these mounts based off of brand new and used motor mount measurements to provide the most consistent bushing so you will be able to drop them in without issue.

      These are much more practical for a street car than the aluminum ones, which are more for race / street race oriented vehicles. These bushings will be more stiff than the poly bushings, but still give a little and be more suited for uses other than (but still perfectly capable for) racing.

      Price is per side, you will need to place and order for a quantity of 2 for a complete mk4/5/6 and you will receive 4 bushings, 2 for each mount.

      These will be priced at $85 per side with free shipping!!

      To place an order please message me your full name, shipping address and phone number.

      Thanks,
      JC

      "Antequam desilirent", RIP brothers.

    16. Member bryangb's Avatar
      Join Date
      Jun 16th, 2010
      Location
      Hanover, PA
      Posts
      15,213
      Vehicles
      '08 GTI, '12 Beetle, '91 Passat
      10-08-2012 04:33 PM #16
      What's the density rating on them?
      // Open Road Tuning
      Instagram: @bryangb
      bags and wheels = build thread

    17. Senior Member JettaGT8V80's Avatar
      Join Date
      Jun 11th, 2003
      Location
      Waltham , Ma
      Posts
      27,299
      Vehicles
      06 GTI UM Tuned
      10-08-2012 04:57 PM #17
      Quote Originally Posted by bryangb View Post
      What's the density rating on them?
      well derilin is a hrd plastic like product so i would assume its high

    18. Member bryangb's Avatar
      Join Date
      Jun 16th, 2010
      Location
      Hanover, PA
      Posts
      15,213
      Vehicles
      '08 GTI, '12 Beetle, '91 Passat
      10-08-2012 05:10 PM #18
      Quote Originally Posted by JettaGT8V80 View Post
      well derilin is a hrd plastic like product so i would assume its high
      Just trying to see something visual to compare (like numbers). Hard enough that VF doesn't release that info. Now this is a product that is stiffer than VF's. But that means nothing?

      If that makes sense. Hopefully VF emails you back
      // Open Road Tuning
      Instagram: @bryangb
      bags and wheels = build thread

    19. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      10-08-2012 05:12 PM #19
      Quote Originally Posted by bryangb View Post
      What's the density rating on them?
      Quote Originally Posted by JettaGT8V80 View Post
      well derilin is a hrd plastic like product so i would assume its high
      Quote Originally Posted by bryangb View Post
      Just trying to see something visual to compare (like numbers). Hard enough that VF doesn't release that info. Now this is a product that is stiffer than VF's. But that means nothing?

      If that makes sense. Hopefully VF emails you back
      I wrote above the quoted post that they are 85a. I still have no info from VF.
      "Antequam desilirent", RIP brothers.

    20. Member bryangb's Avatar
      Join Date
      Jun 16th, 2010
      Location
      Hanover, PA
      Posts
      15,213
      Vehicles
      '08 GTI, '12 Beetle, '91 Passat
      10-08-2012 05:22 PM #20
      Hm, so VF's must be significantly lower than 85a for FFE to claim their 85a inserts are a good inbetween for the original VF mounts and solid aluminum inserts...
      // Open Road Tuning
      Instagram: @bryangb
      bags and wheels = build thread

    21. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      10-08-2012 08:54 PM #21
      I received a reply from VF's technical support:

      Hello,

      I am currently making a comprehensive list of MkV engine and transmission mounts and am also listing the density of each. Your mounts' durometer is not listed and I was curious if you have that number available.

      Thank you!
      Reply from VF:

      Thankyou for contacting us. We do not advertise our polyurethane durometer.

      -Technical SN
      My reply:

      Thank you for the reply. May I ask why? I have many people asking for it and some are on the line with ordering. But not knowing what durometer the poly is is not allowing them to compare and shop responsibly. Thank you again.
      Final reply:

      I am afraid I don't have an answer. Sorry.

      Technical
      These are direct copy and paste. So at this time, I do not have the density of the VF mounts.
      Last edited by christofambrosch; 10-08-2012 at 09:02 PM.
      "Antequam desilirent", RIP brothers.

    22. Member Rresetrrewind's Avatar
      Join Date
      Jul 23rd, 2011
      Location
      Connecticut
      Posts
      1,665
      Vehicles
      MkII Scirocco. MkV GTI.
      10-08-2012 09:27 PM #22
      Quote Originally Posted by KIDVersion 1 View Post
      These are direct copy and paste. So at this time, I do not have the density of the VF mounts.
      Get them. I wanna see a blocked email address or you're not trying hard enough Idk though man seems like somebody is hiding/is ashamed of something

      Oh, great writeup btw.
      "It take a village to raise a child."

    23. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      10-08-2012 09:36 PM #23
      Quote Originally Posted by Rresetrrewind View Post
      Get them. I wanna see a blocked email address or you're not trying hard enough Idk though man seems like somebody is hiding/is ashamed of something

      Oh, great writeup btw.





      Thank you sir.

      I'm not saying VF isn't quality. Just collecting data and compiling it.
      "Antequam desilirent", RIP brothers.

    24. Member bryangb's Avatar
      Join Date
      Jun 16th, 2010
      Location
      Hanover, PA
      Posts
      15,213
      Vehicles
      '08 GTI, '12 Beetle, '91 Passat
      10-08-2012 09:39 PM #24
      Wow, really? I'm still on the fence between VF and BFI, but mark 1 up for BFI with that response.

      What's VF's email? I say we all bombard them with emails requesting information
      // Open Road Tuning
      Instagram: @bryangb
      bags and wheels = build thread

    25. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      10-08-2012 09:56 PM #25
      From their website: technical@vf-engineering.com

      If anyone receives any details, please let me know. At least now there are known replacements for the VF bracket.
      "Antequam desilirent", RIP brothers.

    26. Member Rresetrrewind's Avatar
      Join Date
      Jul 23rd, 2011
      Location
      Connecticut
      Posts
      1,665
      Vehicles
      MkII Scirocco. MkV GTI.
      10-08-2012 10:06 PM #26
      Quote Originally Posted by bryangb View Post
      Wow, really? I'm still on the fence between VF and BFI, but mark 1 up for BFI with that response.

      What's VF's email? I say we all bombard them with emails requesting information
      Same man. On it with the bombardment.
      "It take a village to raise a child."

    27. Member bryangb's Avatar
      Join Date
      Jun 16th, 2010
      Location
      Hanover, PA
      Posts
      15,213
      Vehicles
      '08 GTI, '12 Beetle, '91 Passat
      10-09-2012 08:15 AM #27
      Emailed them
      // Open Road Tuning
      Instagram: @bryangb
      bags and wheels = build thread

    28. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      10-22-2012 02:50 PM #28
      Bump
      "Antequam desilirent", RIP brothers.

    29. Member bryangb's Avatar
      Join Date
      Jun 16th, 2010
      Location
      Hanover, PA
      Posts
      15,213
      Vehicles
      '08 GTI, '12 Beetle, '91 Passat
      10-22-2012 09:22 PM #29
      I never received a response
      // Open Road Tuning
      Instagram: @bryangb
      bags and wheels = build thread

    30. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      11-02-2012 06:14 PM #30
      Monthly bump
      "Antequam desilirent", RIP brothers.

    31. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      12-03-2012 07:58 AM #31
      Monthly bump for noobs.
      "Antequam desilirent", RIP brothers.

    32. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      01-28-2013 01:46 PM #32
      Monthly bump.
      "Antequam desilirent", RIP brothers.

    33. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      11-05-2013 03:45 PM #33
      Bump
      "Antequam desilirent", RIP brothers.

    34. Member bryangb's Avatar
      Join Date
      Jun 16th, 2010
      Location
      Hanover, PA
      Posts
      15,213
      Vehicles
      '08 GTI, '12 Beetle, '91 Passat
      11-05-2013 08:35 PM #34
      Bump
      // Open Road Tuning
      Instagram: @bryangb
      bags and wheels = build thread

    35. Senior Member christofambrosch's Avatar
      Join Date
      Jul 4th, 2011
      Location
      Pennsylvania
      Posts
      22,117
      Vehicles
      '89 Coupe 2.0, '12 Passat 3.6
      12-07-2013 11:57 AM #35
      Bump
      "Antequam desilirent", RIP brothers.
